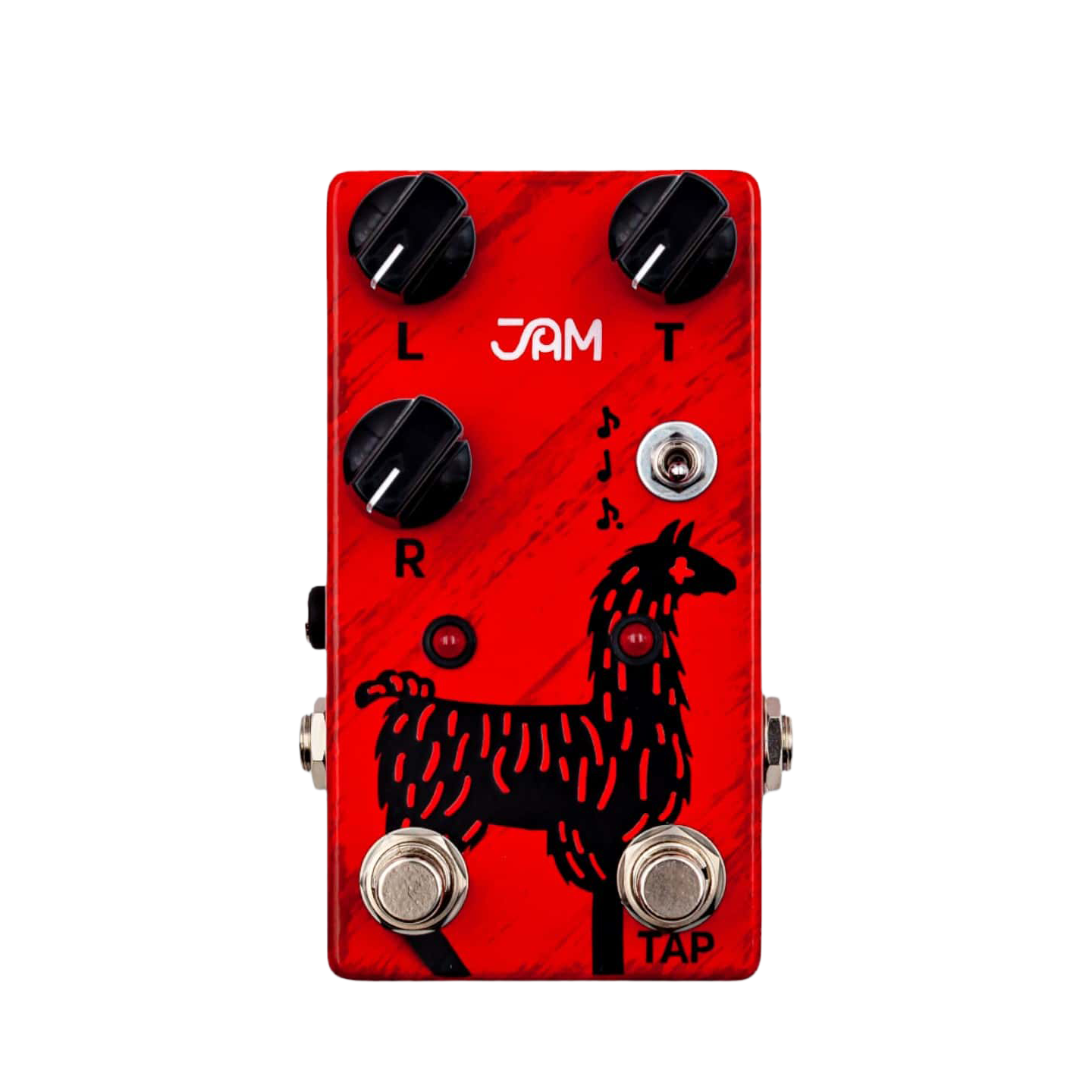

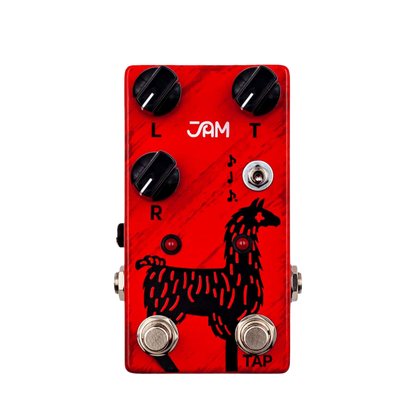

• Top down of JAM Pedals Delay Llama mk.3.

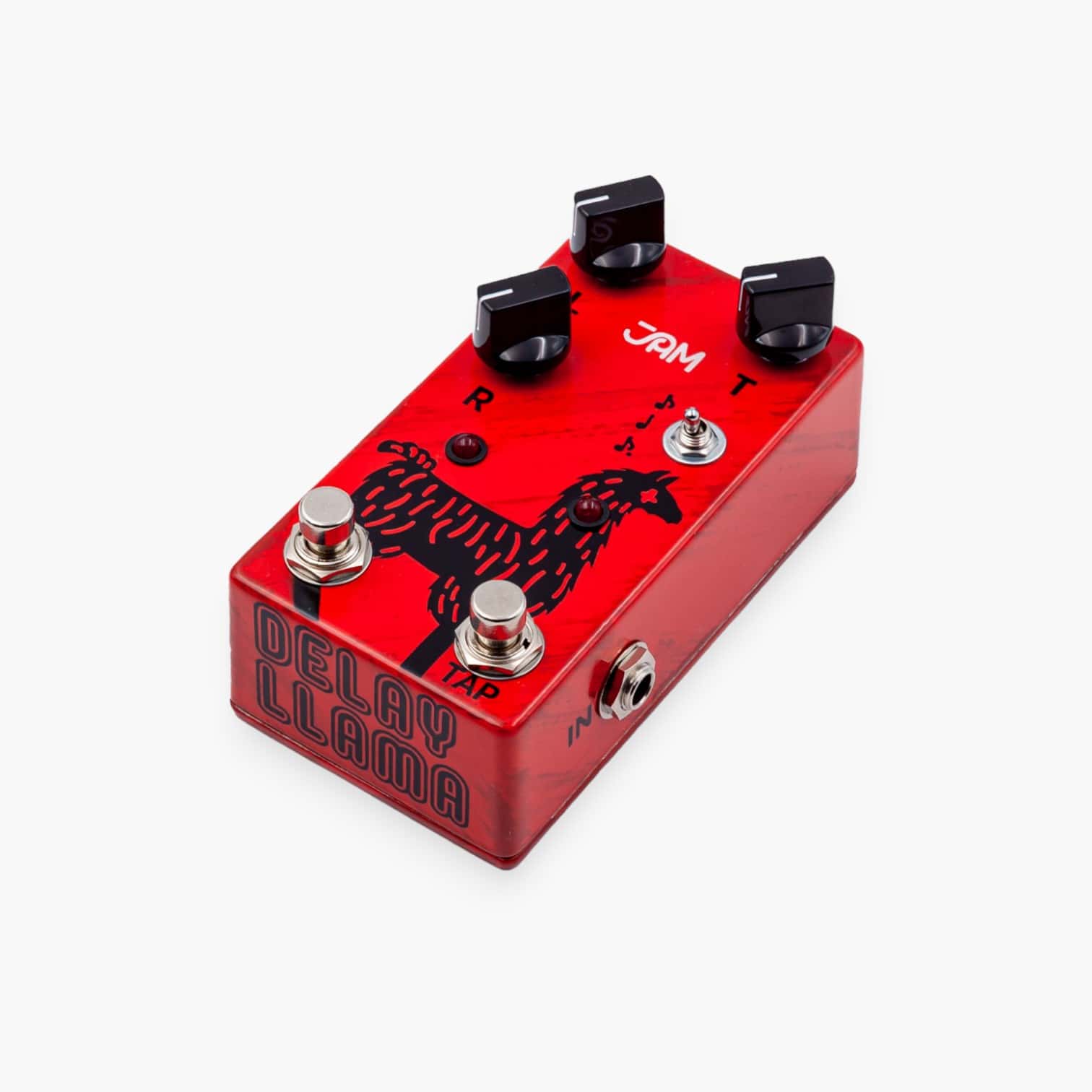

  • Front left angle of JAM Pedals Delay Llama mk.3.

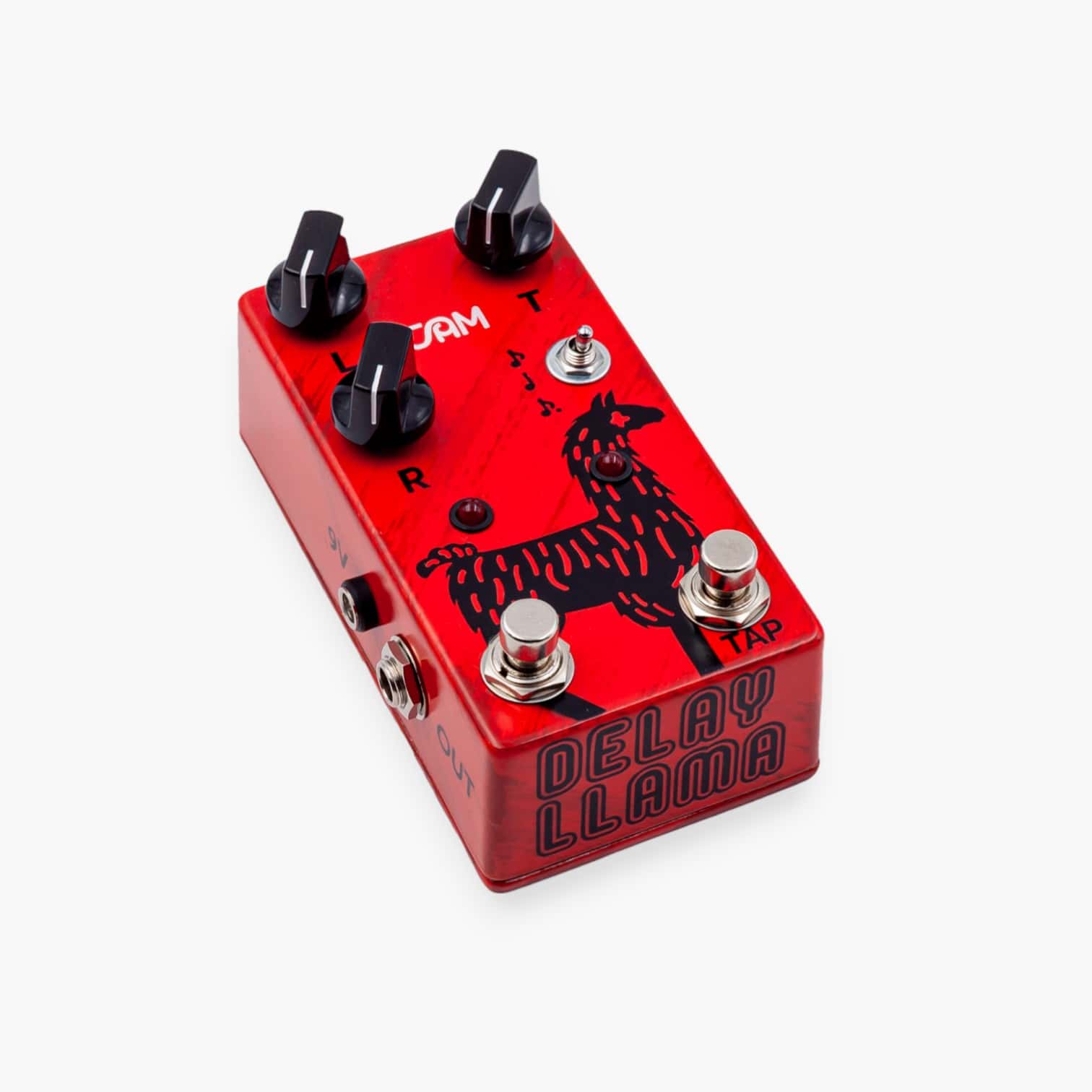

  • Front right angle of JAM Pedals Delay Llama mk.3.

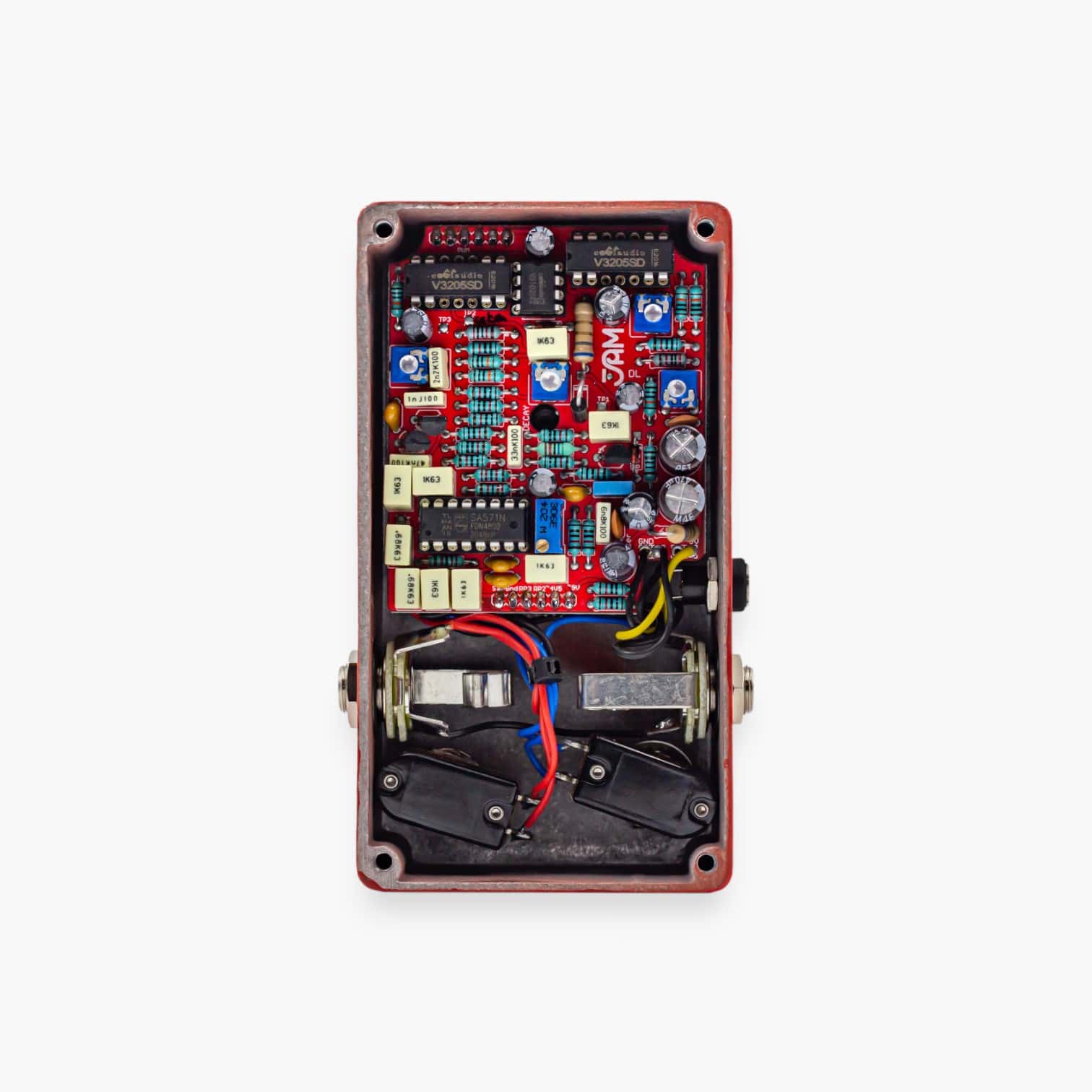

  • Back of JAM Pedals Delay Llama mk.3 internals showing.
1 4

Jam Pedals

JAM Pedals Delay Llama mk.3

JAM Pedals Delay Llama mk.3

$299.00

JAM Pedals Delay Llama mk.3

1) Overview

The JAM Pedals Delay Llama mk.3 is the latest evolution of one of the most beloved analog delay pedals on the market. Built around authentic BBD chips—faithful reproductions of the legendary Panasonic MN3205—it delivers lush, warm, and organic repeats that blend seamlessly with your dry tone. Designed to behave like a classic tape echo machine, the Delay Llama adds depth and dimension without ever coloring your core sound.

With the mk.3 update, JAM Pedals expands the Delay Llama’s versatility while maintaining its classic simplicity. The addition of Tap Tempo with rhythmic subdivisions, a Hold (self-oscillation) function, and selectable trails or true bypass modes makes this compact pedal a modern classic. With up to 600ms of delay time and compatibility with both guitar and bass, the Delay Llama mk.3 offers a timeless tone platform ready for any setup.

2) Highlights

  • True analog delay powered by BBD chips modeled after the Panasonic MN3205
  • Up to 600ms of delay with warm, tape-like character
  • Tap Tempo with quarter, eighth, and dotted eighth note subdivisions
  • Selectable Trails (buffered) or True Bypass operation
  • Hold function for self-oscillation and expressive sound design

3) Specifications

Body

  • Enclosure: Handcrafted metal housing
  • Finish: Custom graphic artwork
  • Bypass: Selectable True Bypass or Buffered (Trails)
  • Footswitches: On/Off and Tap Tempo

Electronics

  • Delay Type: Analog (BBD chip-based)
  • Chips: Faithful reproductions of Panasonic MN3205
  • Max Delay Time: 600ms
  • Controls:

    • L – Level of repeats

    • T – Delay time

    • R – Number of repeats

    • 3-Way Toggle – Tap Tempo subdivisions (quarter, eighth, dotted eighth)

  • Internal Trimmers:

    • Trails fade-out time

    • Max number of repeats (multi-turn trim)

  • Hold Function: Self-oscillation when footswitch held down
  • Power: 9V DC center-negative (adapter only – no battery operation)

Connectivity

  • Input: 1/4” mono jack
  • Output: 1/4” mono jack

Miscellaneous

  • Delay Time Range: 30ms – 600ms
  • Suitable for Guitar and Bass
  • Country of Origin: Handcrafted in Greece
