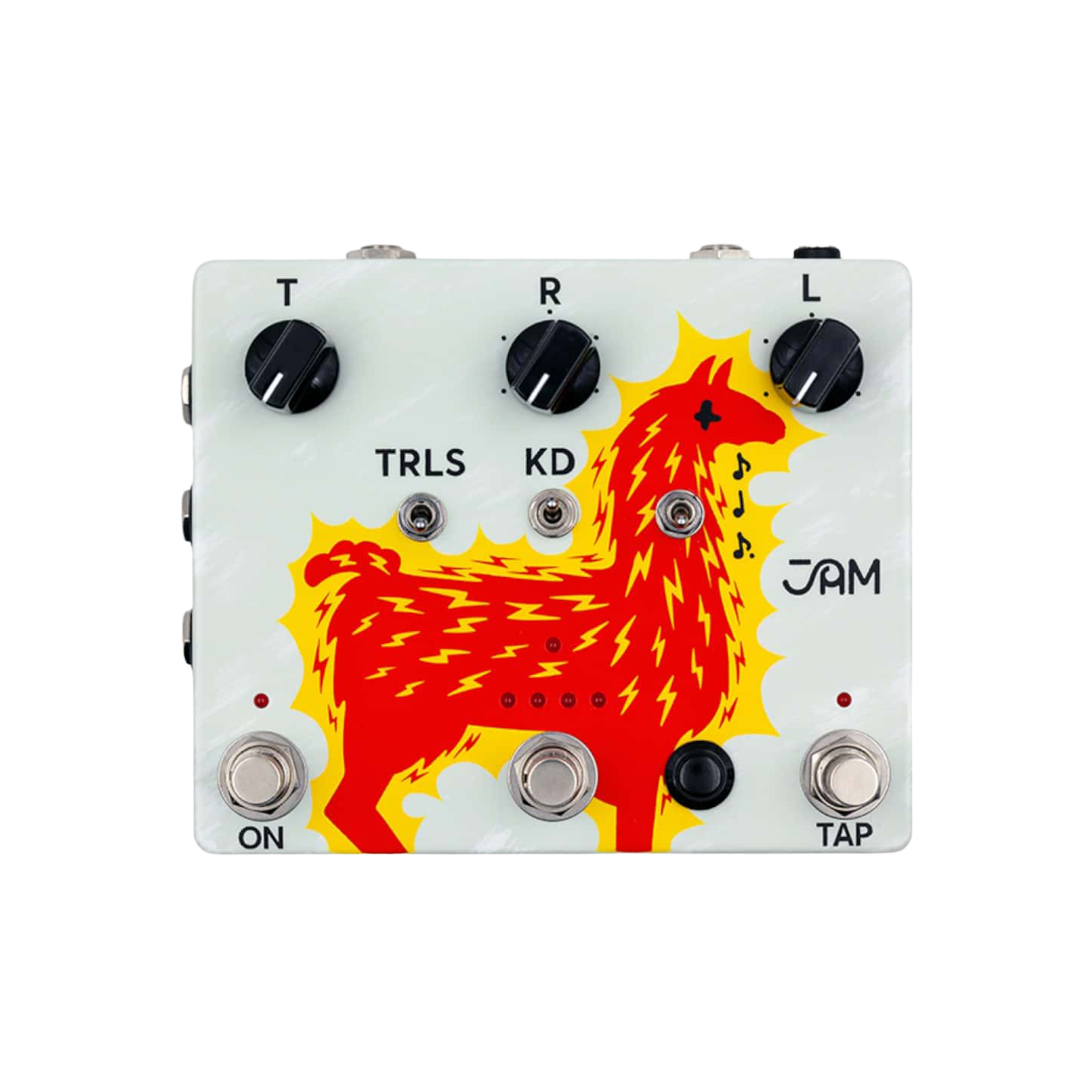

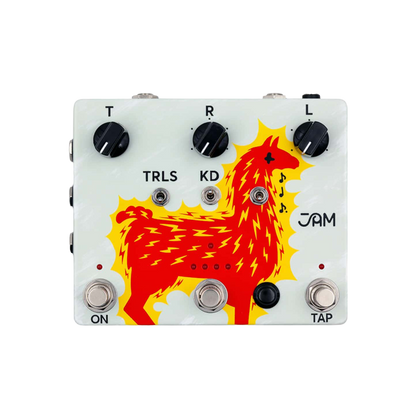

• Top down of JAM Pedals Delay Llama XTREME.

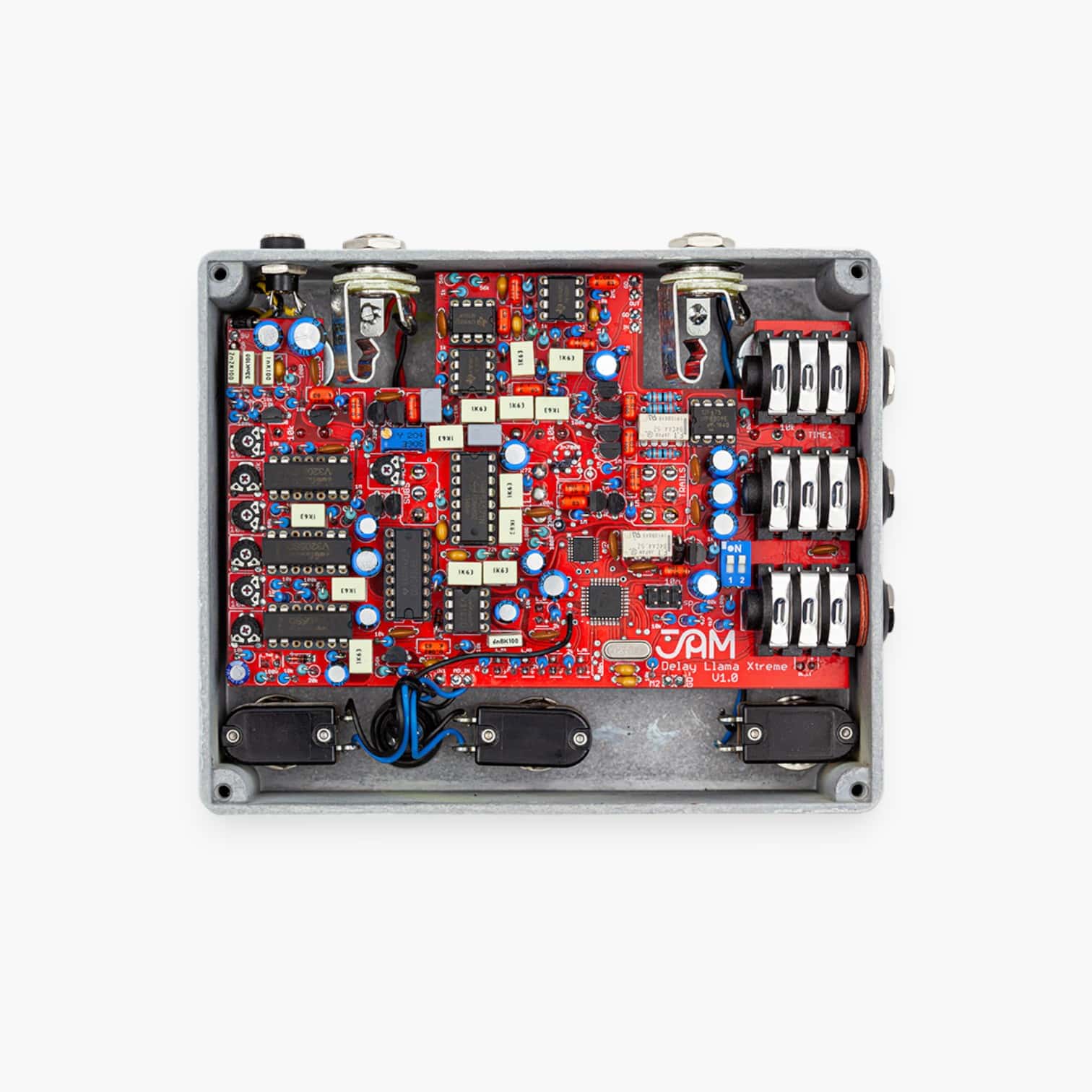

  • Back and insides of JAM Pedals Delay Llama XTREME.

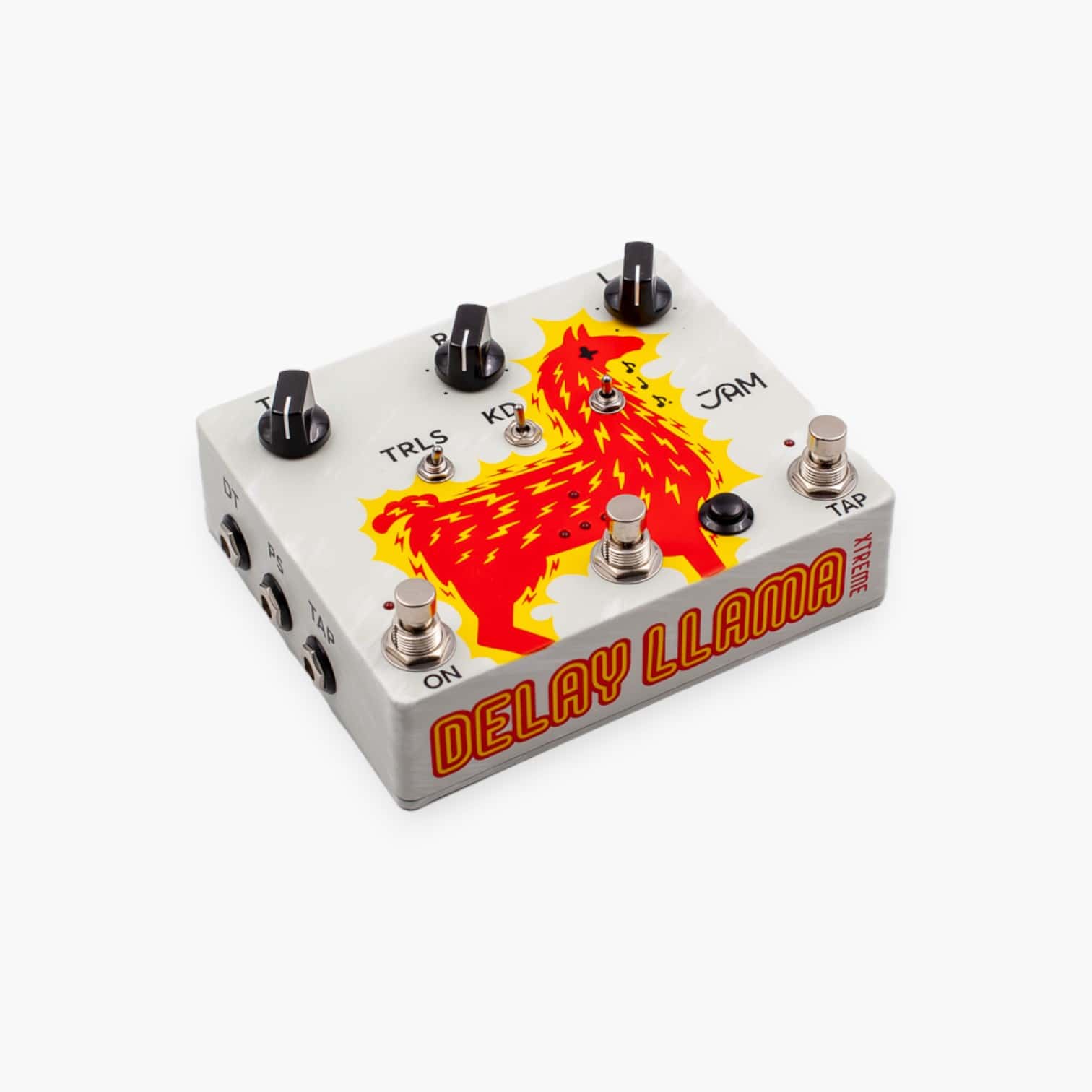

  • Front right angle of JAM Pedals Delay Llama XTREME.

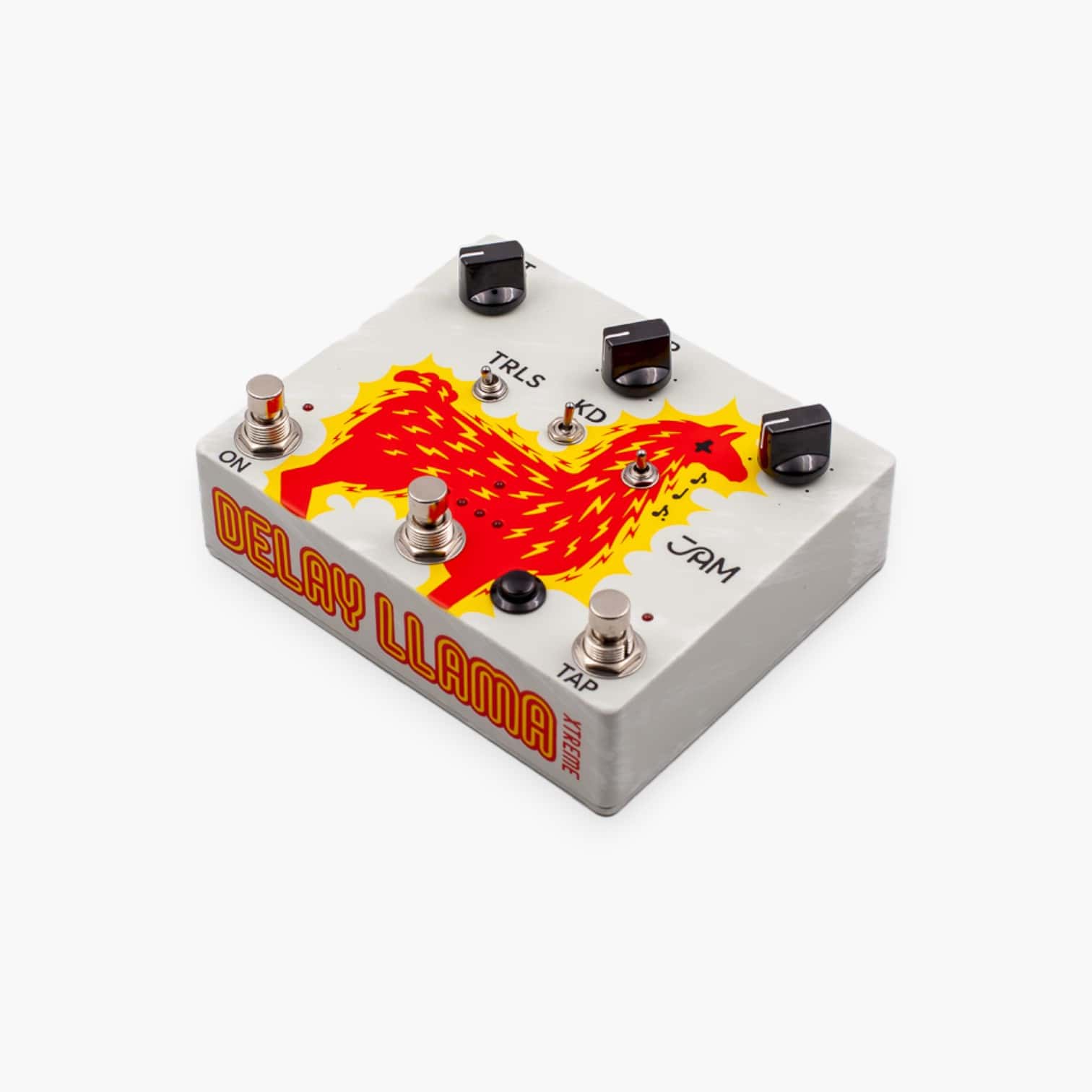

  • Front left angle of JAM Pedals Delay Llama XTREME.
1 4

Jam Pedals

Jam Pedals Delay Llama XTREME

Jam Pedals Delay Llama XTREME

$399.00

JAM Pedals Delay Llama XTREME

1) Overview

The JAM Pedals Delay Llama XTREME takes the revered analog warmth of the Delay Llama series and pushes it into uncharted territory, redefining what a bucket-brigade delay can do. Built around three 3205 BBD chips, this pedal offers up to 800ms of delay time, capturing the lush, organic repeats of true analog circuitry while adding innovative features that expand its creative potential.

Designed for both traditionalists and sonic explorers, the Delay Llama XTREME combines vintage tone with forward-thinking control. It includes tap tempo with subdivisions, four programmable presets, expression and CV inputs, and the choice between true bypass or buffered trails. But where it truly earns its name is in the four unique “XTREME” modes — advanced modulation and pitch-manipulating delay textures that can transform your sound from warm ambience to surreal, shifting soundscapes.

2) Highlights

  • 100% analog signal path with three 3205 BBD chips for rich, warm delay tone
  • Up to 800ms of delay time with tap tempo and subdivisions
  • Four presets and selectable buffered “trails” or true bypass operation
  • Delay time expression/CV input and remote preset or tap control capability
  • Four unique “XTREME” modes for advanced modulation and pitch effects

3) Specifications

Body & Build

  • Enclosure: Handcrafted metal chassis

  • Finish: Custom graphic artwork

  • Bypass: True Bypass or Buffered (Trails) selectable

Electronics

  • Max Delay Time: 800ms

  • Delay Circuit: Analog (3 x 3205 BBD chips)

  • Controls: Time, Repeats, Mix, Mod Depth/Speed (mode-dependent)

  • Presets: 4 programmable slots

  • Tap Tempo: With subdivision selector

  • Hold Function: Yes

  • Kill-Dry Option: Yes

XTREME Modes

  • Vibrato: Sine-wave LFO modulation with Depth and Speed controls
  • Tape-Age: Randomized pitch fluctuations simulating vintage tape warble
  • Random: Abrupt rhythmic pitch jumps via randomized delay-time changes
  • Pitch-Shift: Five pitch intervals and five playback/sequencer patterns

Connectivity

  • Input/Output: Mono 1/4” jacks
  • Expression Input: Delay Time (accepts CV)
  • Remote Inputs: Tap Tempo, Preset Selection
  • Power: 9V DC center-negative (100mA min, adapter only – no battery operation)

Miscellaneous

  • Country of Origin: Handcrafted in Greece
