Vintage Tone Out Of The Box
The DGT (David Grissom Trem) is the result of more than 20 years of collaboration between Paul Reed Smith and David Grissom. The DGT is based on the McCarty platform with a unique DGT neck shape, taller frets, special pickups, and a revised control layout. Grissom and Paul spent a year A/B-ing more than forty sets of pickups before nailing the vintage-voice of DGT humbuckers. When paired with individual volume controls for each pickup and a push/pull master tone control that operates the coil taps, DGT pickups provide versatility and articulation.
“The DGT is a product a lot of miles down the road: a lot of gigs, a lot of records. It’s like picking up a vintage guitar. It sounds like a vintage guitar, and out of the box it’s ready to go. There’s a whole lot of thought gone into this. The DGT is pretty perfect to me.” – David Grissom
Specifications
Body |
Body Construction |
Solidbody |
Top Wood |
Maple |
Back Wood |
Mahogany |
Top Carve |
Violin |
Neck |
Number of Frets |
22 |
Scale Length |
25" |
Neck Wood |
Mahogany |
Neck Construction |
One-Piece |
Truss Rod |
PRS Double-Acting |
Neck Shape |
DGT |
Neck Depth At The 1/2 Fret |
27/32" |
Neck Width At The Nut |
1 21/32" |
Neck Width At The Body |
2 7/32" |
Fretboard Wood |
Rosewood |
Fretboard Radius |
10" |
Fretboard Inlay |
Moons (Birds Optional) |
Headstock Logo |
Signature, Decal |
Neck/Body Assembly |
Neck/Body Assembly Type |
Set |
Hardware |
Bridge |
PRS Patented Tremolo, Gen III |
Tuners |
Phase III with Faux-Bone Buttons |
Hardware Type |
Nickel |
Nut |
Bone |
Truss Rod Cover |
"DGT" |
Electronics |
Treble Pickup |
DGT |
Bass Pickup |
DGT |
Controls |
Two Volume Controls w/ Push/Pull Tone Control and 3-Way Toggle Pickup Switch |
Additional Info |
Strings |
PRS Signature 11-49 (with a plain “G”) |
Tuning |
Standard (6 String): E, A, D, G, B, E |

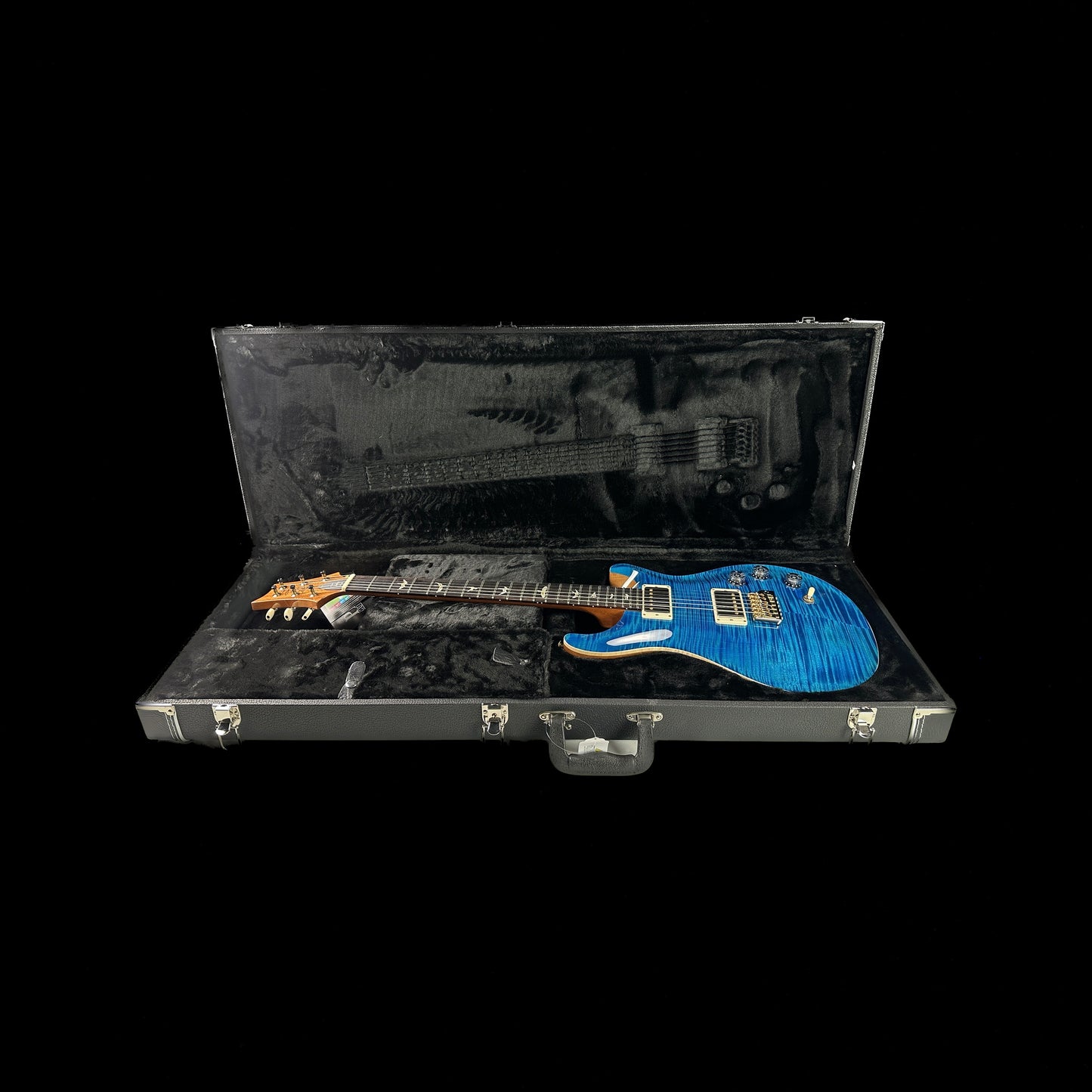

Case |
Hardshell Case |
Options |
10 Top with Hybrid Hardware |
