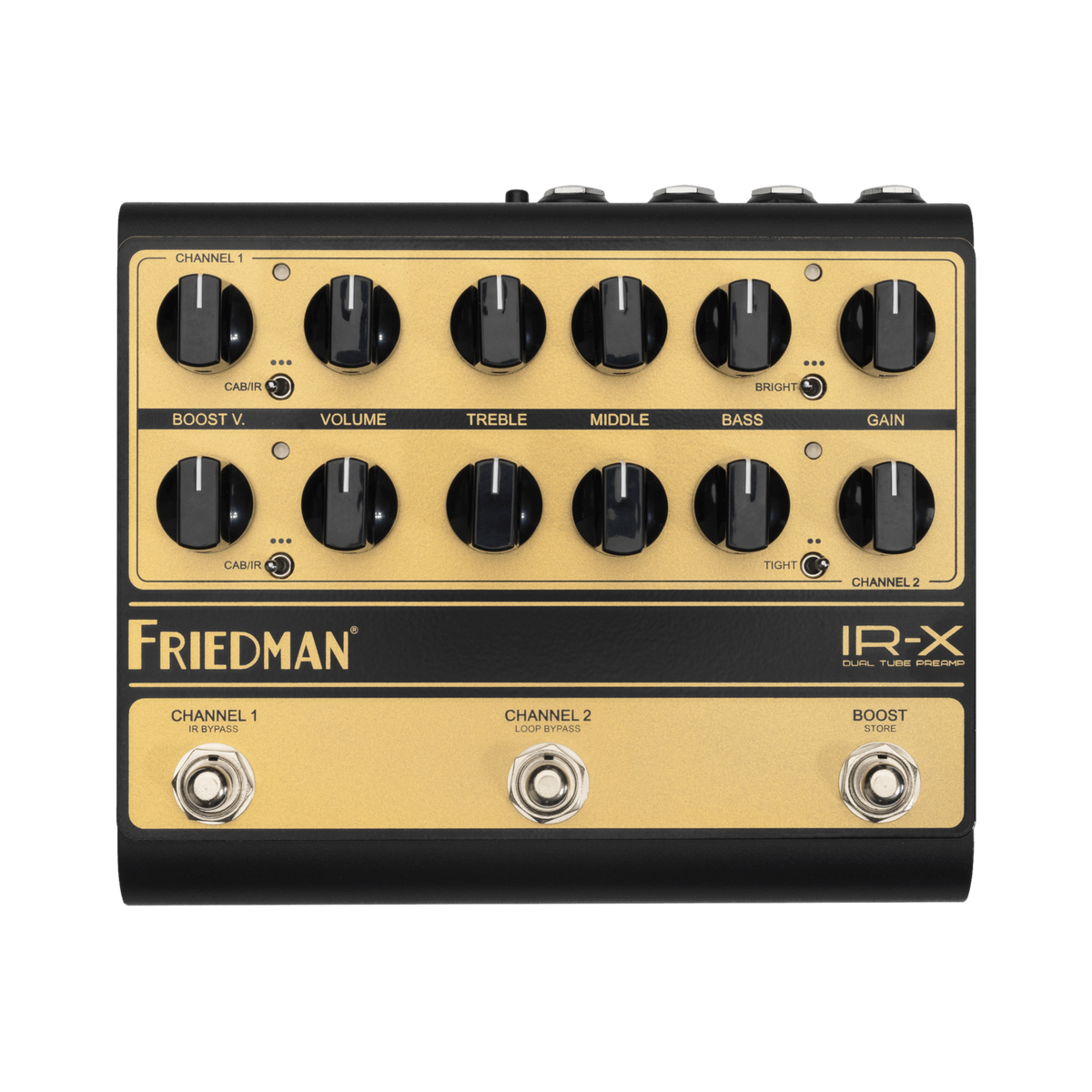

Friedman IR-X Dual Tube Preamp and DI

The Friedman IR-X Dual Tube Preamp and DI packs the unmistakable sound and feel of a Friedman amplifier into a compact, pedalboard-friendly format. Powered by two genuine high-voltage 12AX7 preamp tubes, the IR-X delivers authentic tube dynamics, harmonic richness, and touch sensitivity while combining modern cabinet simulation, direct recording capabilities, and extensive MIDI control. Whether you're running direct to front-of-house, recording into a DAW, or integrating it into a traditional amp rig, the IR-X provides studio-quality Friedman tone without compromise.

Two completely independent channels cover everything from articulate cleans and edge-of-breakup tones to the aggressive high-gain voice Friedman amplifiers are famous for. Channel 1 is voiced for clean through gritty overdrive, while Channel 2 delivers the thick, saturated distortion that has become synonymous with Dave Friedman's designs. Independent Gain, Volume, and three-band EQ controls for each channel allow you to dial in the perfect sound, while dedicated Bright and Tight switches provide additional tonal shaping.

The onboard DSP-powered impulse response section delivers low-latency cabinet and power amp simulation with three selectable IRs per channel. Choose from twelve included Friedman cabinet IRs or load your own using the Synergy-powered software editor. Additional features such as a transparent series effects loop, balanced TRS direct output, headphone output, MIDI connectivity, USB editing, and programmable boost functions make the IR-X equally at home on stage, in the studio, or as the centerpiece of a silent practice rig.

Highlights

• All-tube high-voltage dual-channel preamp
• Two genuine 12AX7 preamp tubes
• Independent clean and high-gain channels
• Built-in low-latency IR cabinet simulation
• Includes 12 Friedman impulse responses
• Load custom IRs via USB software editor
• Power amp simulation with editable Presence and Thump
• Transparent series effects loop
• Balanced TRS direct output
• Headphone output for silent practice
• MIDI and USB connectivity
• Universal 12V power supply included

Specifications

Controls

• Channel 1 Gain
• Channel 1 Volume
• Channel 1 Bass
• Channel 1 Middle
• Channel 1 Treble
• 3-Way Bright Switch
• Channel 2 Gain
• Channel 2 Volume
• Channel 2 Bass
• Channel 2 Middle
• Channel 2 Treble
• 2-Way Tight Switch
• Independent Boost Gain
• Independent Boost Volume
• Three Multi-Function Footswitches

Features

• Two High-Voltage 12AX7 Preamp Tubes
• Dual Independent Channels
• Independent Boost
• Low-Latency Impulse Response Cabinet Simulation
• Bypassable Cabinet Simulation
• Power Amp Simulation
• Software Editable Presence and Thump (Per Channel)
• Three IR/Cabinet Selections Per Channel
• Twelve Friedman IRs Included
• User-Loadable Impulse Responses
• Ultra-Transparent Series Effects Loop
• Headphone Output
• Balanced TRS Direct Output
• USB Software Editor Powered by Synergy
• MIDI via 5-Pin DIN and USB
• Boost Lock Function
• Universal 12V Power Supply Included
• 6 ft USB 2.0 A-to-B Cable Included

Connectivity

• Balanced TRS Output
• Headphone Output
• Effects Loop Send/Return
• MIDI In (5-Pin DIN)
• USB MIDI
• USB Editor Connection

Miscellaneous

• Dimensions: 6.5" (W) x 5.5" (D) x 2.3" (H)
• Weight: 1.5 lbs.
• Power Requirement: Included Universal 12V DC Power Supply
• Warranty: Limited 3-Year Manufacturer Warranty
