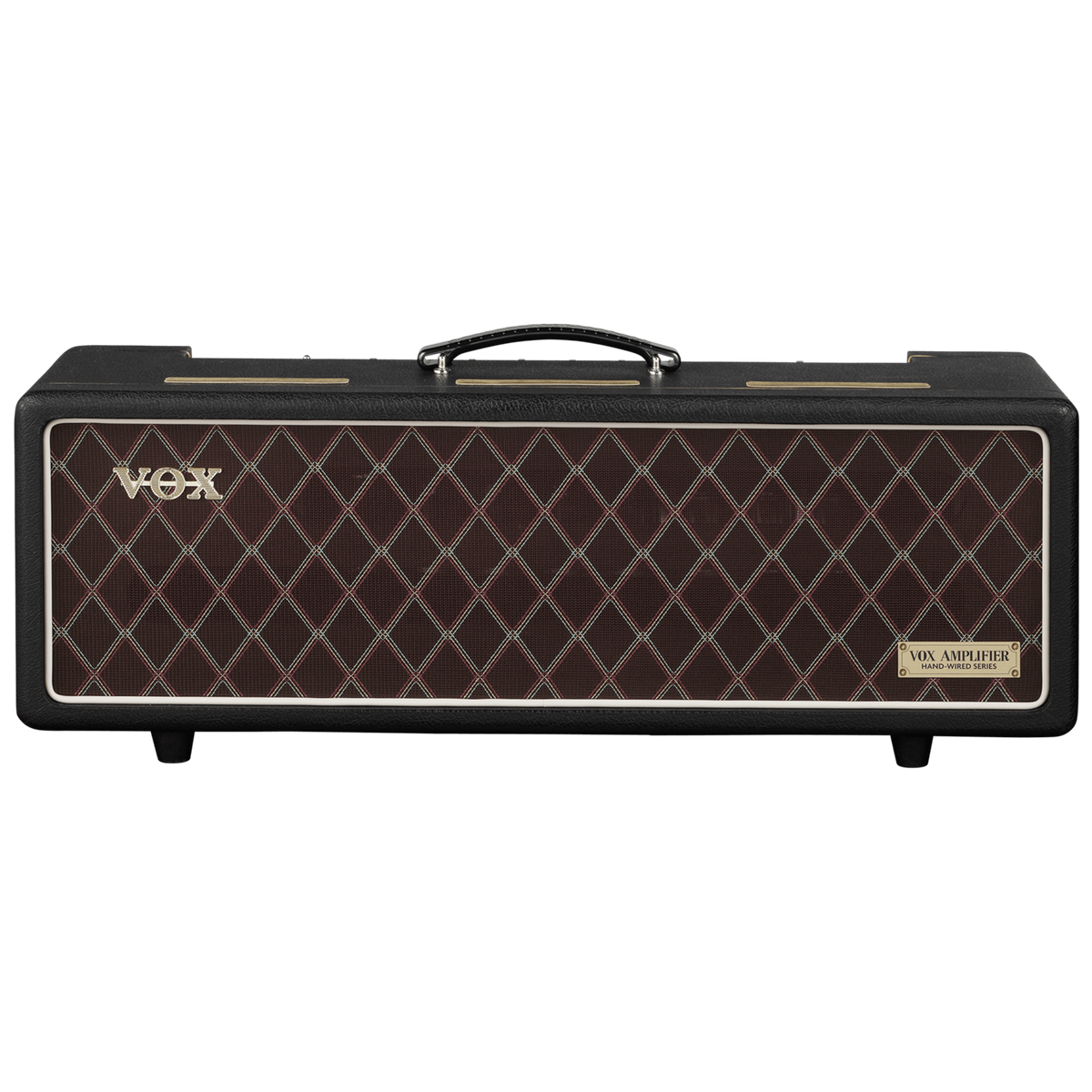

Vox AC30HWRH 30w Head

The Vox AC30HWR Head is a hand-wired, all-tube amplifier designed to recreate the response and tonal character of early 1960s AC30 models in a head format. Built with vintage-accurate construction and custom transformers, it delivers the harmonic complexity, chime, and touch sensitivity that define classic VOX tone while offering the flexibility to pair with a variety of speaker cabinets.

At its core is a four EL84 power section that produces the familiar compression and dynamic response associated with the AC30 platform. The inclusion of both Normal and Top Boost channels allows for a wide tonal range, from warm, rounded cleans to articulate, driven sounds. Modern features like a transparent effects loop, spring reverb, and a master volume that can be removed from the circuit help make it practical for both stage and studio use.

Highlights

• Hand-wired circuitry for vintage-accurate VOX tone and response
• Dual-channel design with Normal and Top Boost voicings
• EL84 power section for classic chime and harmonic complexity
• Master volume, FX loop, and spring reverb for modern flexibility
• Head format for pairing with a variety of speaker cabinets

Specifications

Body

• Type: Amplifier Head
• Dimensions: 27.76" W x 10.35" D x 11.89" H

Hardware

• Construction: Hand-Wired Circuitry
• Transformer: Custom-Wound Output Transformer
• Channels: Normal and Top Boost
• Inputs:
  • Normal Input (High/Low)
  • Top Boost Input (High/Low)
• Outputs:
  • 2 x Speaker Outputs (1/4")
  • Effects Send (1/4")
• Effects Loop: Yes (Return/Send)

Electronics

• Wattage: 30W RMS into 8/16Ω
• Power Tubes: 4 x EL84
• Preamp Tubes: 4 x ECC83 / 12AX7
• Additional Tubes: 1 x ECC81 / 12AT7, 1 x GZ34 Rectifier
• Channels: 2
• Reverb: Spring Reverb
• Master Volume: Yes (removable from circuit)

Miscellaneous

• Included Accessories: Power cable, owner’s manual, VFS1 footswitch, speaker cable
• Other: Vintage-style voltage sag response and phase inverter behavior
• Weight: 43.43 lbs
