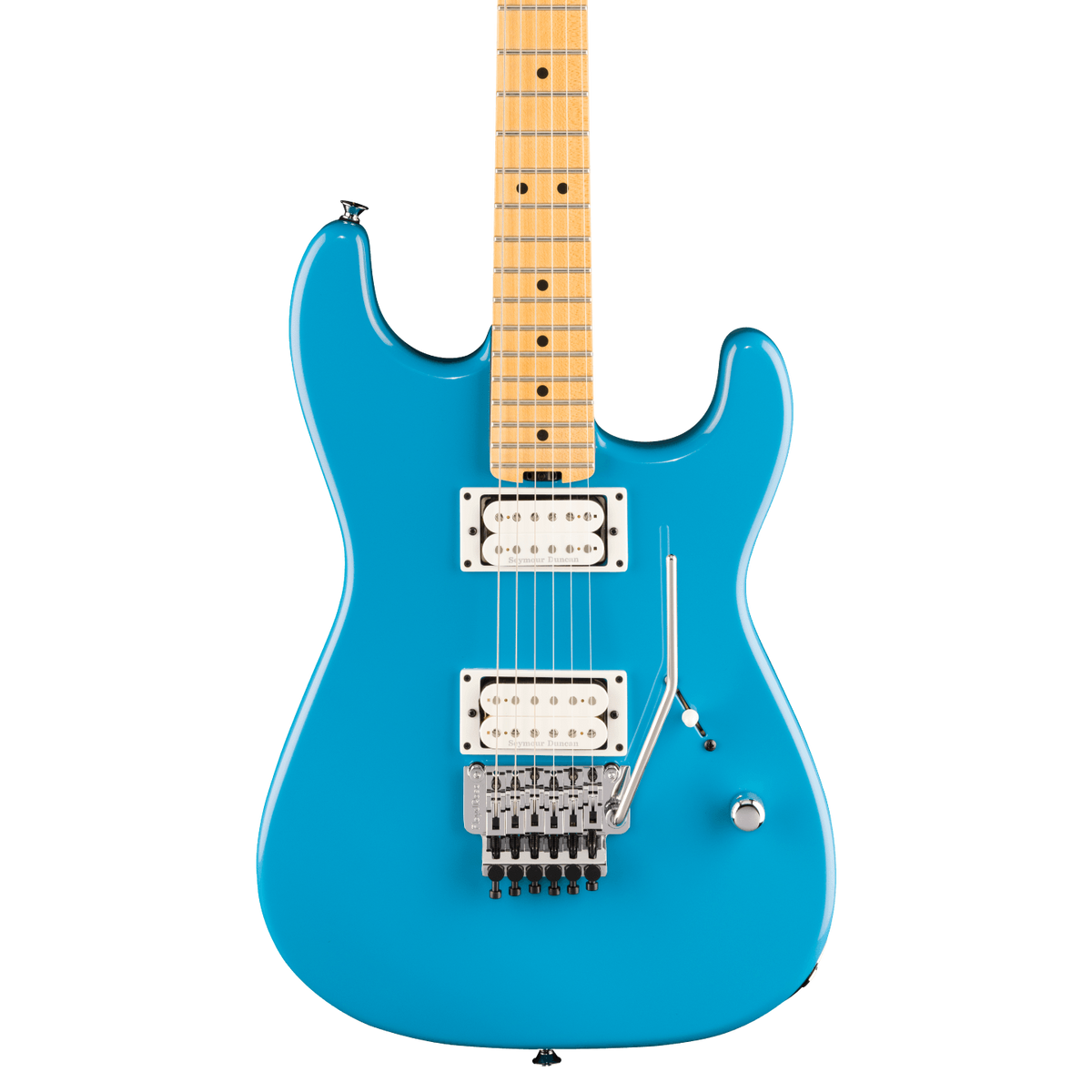

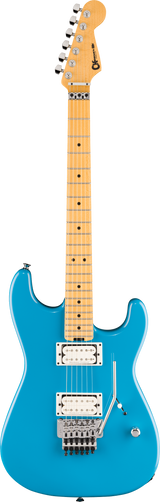

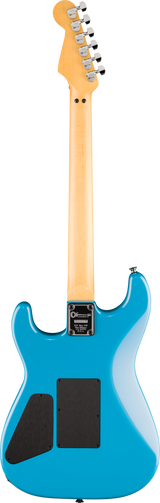

Charvel American NeoClassic San Dimas SD1 HH FR Maple Robin's Egg Blue w/softcase

The Charvel American Neo-Classic San Dimas SD1 HH FR in Robin's Egg Blue combines the unmistakable styling of Charvel's original 1980s hot-rodded guitars with modern performance features and American craftsmanship. Built around a resonant alder body, a one-piece quartersawn maple neck, and a pair of Seymour Duncan humbuckers, this guitar delivers the fast playability, versatile tones, and dependable hardware that have defined the San Dimas design for decades. The gloss Robin's Egg Blue finish, parchment pickup bobbins, and chrome hardware give the instrument a distinctive appearance that balances vintage-inspired styling with contemporary performance.

The alder San Dimas Style 1 body provides a balanced tonal foundation with warm midrange presence, defined lows, and clear high frequencies. Its traditional double-cutaway shape offers comfortable access to the upper frets, while the gloss Robin's Egg Blue finish complements the natural maple neck and understated chrome appointments. A top-mounted Floyd Rose 1000 Series double-locking tremolo provides expressive pitch control and dependable tuning stability, making the guitar equally suited to aggressive dive bombs, subtle vibrato, and technical lead playing.

The one-piece quartersawn maple neck is based on authentic 1980 Charvel specifications, preserving the familiar feel of the original San Dimas guitars while incorporating modern refinements. Graphite reinforcement improves neck stability, while the tinted natural satin finish provides a smooth, comfortable playing surface. The quartersawn maple fingerboard features a 12"–16" compound radius, transitioning from a rounder feel for comfortable chord work to a flatter upper register for effortless bends and fast lead techniques. Twenty-two jumbo stainless steel frets offer durability and consistent note definition, while rolled fingerboard edges enhance comfort along the neck.

A pair of Seymour Duncan humbuckers provides the tonal versatility needed for everything from vintage-inspired rock to modern high-gain playing. The Seymour Duncan '59 SH-1N neck pickup delivers warm, articulate tones with a classic humbucker response, while the Seymour Duncan JB TB-4 bridge pickup provides the powerful output, focused midrange, and cutting attack associated with one of rock guitar's most recognizable pickups. A five-position blade switch expands the available sounds beyond traditional three-way humbucker switching, offering two split-coil combinations alongside the standard bridge, neck, and dual-humbucker settings. A single master volume control uses a 500K EVH Bourns low-friction potentiometer for smooth, responsive adjustments.

Additional performance features include a heel-mounted truss rod adjustment wheel for convenient setup changes and Luminlay side dots for improved position visibility on dark stages. Charvel-branded die-cast tuning machines work alongside the Floyd Rose locking nut and tremolo system, while chrome hardware and a dome-style volume knob maintain the guitar's streamlined appearance. With its combination of classic San Dimas construction, stainless steel frets, versatile Seymour Duncan electronics, and professional-grade tremolo hardware, the American Neo-Classic SD1 HH FR is built for players who demand precision, speed, and tonal flexibility. A Charvel Multi-Fit Hardshell Gig Bag is included for protection and transportation.

Highlights

• Alder San Dimas Style 1 body with gloss Robin's Egg Blue finish and chrome hardware

• One-piece quartersawn maple neck with graphite reinforcement and tinted satin finish

• Quartersawn maple fingerboard with 12"–16" compound radius and 22 jumbo stainless steel frets

• Seymour Duncan JB TB-4 and '59 SH-1N humbuckers with versatile five-position switching

• Top-mounted Floyd Rose 1000 Series tremolo, Luminlay side dots, and included Charvel Multi-Fit Hardshell Gig Bag

Specifications

Body

• Body Shape: San Dimas Style 1

• Body Style: Solidbody Electric Guitar

• Body Material: Alder

• Body Finish: Gloss

• Finish Color: Robin's Egg Blue

• Orientation: Right-Handed

Neck

• Neck Material: One-Piece Quartersawn Maple

• Neck Construction: Bolt-On

• Neck Reinforcement: Graphite

• Neck Profile: Based on Original 1980 Charvel Specifications

• Neck Finish: Tinted Natural Satin

• Fingerboard Material: Quartersawn Maple

• Fingerboard Radius: 12"–16" Compound (304.8–406.4 mm)

• Fingerboard Edges: Rolled

• Position Inlays: Black Dots

• Side Dots: Luminlay

• Number of Frets: 22

• Fret Size: Jumbo

• Fret Material: Stainless Steel

• Scale Length: 25.5" (647.7 mm)

• Nut: Floyd Rose 1000 Series Locking

• Nut Width: 1.6875" (42.86 mm)

• Truss Rod Adjustment: Heel-Mounted Adjustment Wheel

Hardware

• Bridge: Floyd Rose 1000 Series Double-Locking Tremolo

• Bridge Mounting: Top-Mounted

• Tuning Machines: Charvel-Branded Die-Cast

• Hardware Finish: Chrome

• Control Knob: Dome-Style

• Pickup Bobbins: Parchment

• Factory Strings: Nickel-Plated Steel

• String Gauges: .009–.042

Electronics

• Bridge Pickup: Seymour Duncan JB TB-4 Humbucker

• Neck Pickup: Seymour Duncan '59 SH-1N Humbucker

• Pickup Configuration: HH

• Controls: Master Volume

• Volume Potentiometer: 500K EVH Bourns Low-Friction

• Pickup Selector: 5-Position Blade

• Switching:

  • Position 1: Bridge Humbucker

  • Position 2: Bridge Outer Coil and Neck Inner Coil

  • Position 3: Bridge and Neck Humbuckers

  • Position 4: Bridge Inner Coil and Neck Outer Coil

  • Position 5: Neck Humbucker

Miscellaneous

• Brand: Charvel

• Series: American Neo-Classic Series

• Model: San Dimas Style 1 SD1 HH FR

• Fingerboard: Maple

• Finish: Robin's Egg Blue

• Number of Strings: 6

• Scale Length: 25.5"

• Included Case: Charvel Multi-Fit Hardshell Gig Bag
