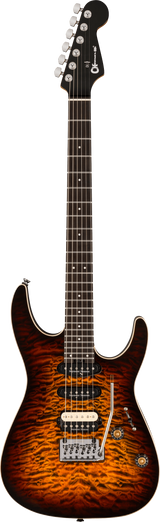

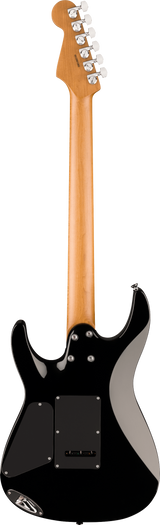

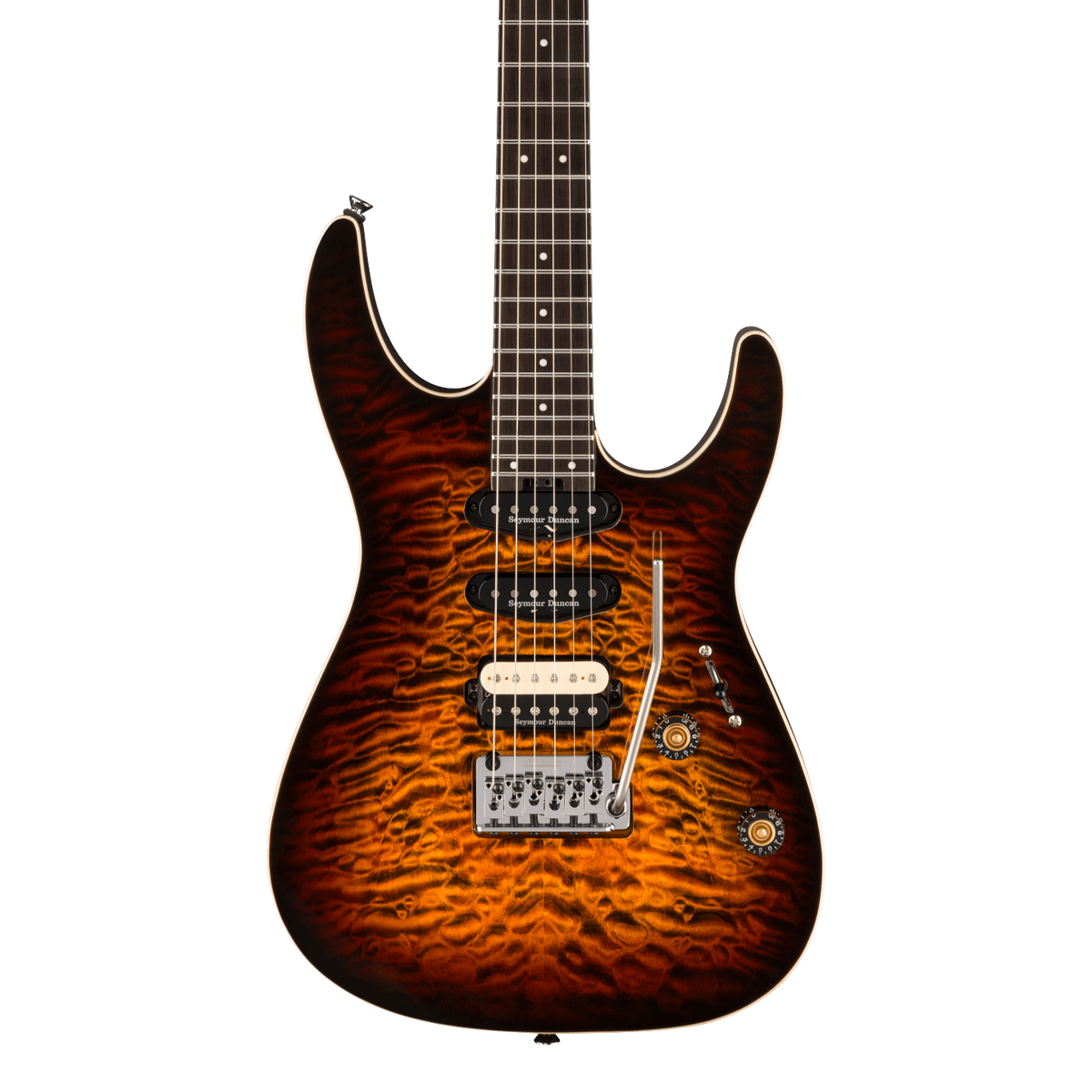

Charvel Pro-Mod Plus Dinky DK24 HSS 2PT EB QM Ebony Amber Tiger Eye

Overview

The Charvel Pro-Mod Plus Dinky DK24 HSS 2PT combines a basswood Dinky body with a quilt maple top and Amber Tiger Eye finish, backed by modern features aimed at fast, precise playing. A sculpted shredder’s cut heel and scalloped lower back bout improve upper-fret access, while the graphite-reinforced caramelized maple neck features a natural satin finish, rolled fingerboard edges, and a heel-mounted truss rod adjustment wheel.

Its 12"-16" compound-radius ebony fingerboard carries 24 jumbo stainless steel frets and Luminlay side dots. The HSS electronics pair a Seymour Duncan Full Shred TB-10 bridge humbucker with Custom Flat Strat SSL-6 single-coils in the middle and neck positions, supported by specialized five-way switching for a broad selection of humbucker and single-coil combinations. A Wilkinson WVS130-2P tremolo and Charvel locking tuners complete the performance-focused hardware package.

Highlights

• Basswood Dinky body with quilt maple top in Amber Tiger Eye
• Graphite-reinforced caramelized maple Speed Neck with rolled fingerboard edges
• 12"-16" compound-radius ebony fingerboard with 24 jumbo stainless steel frets
• Seymour Duncan Full Shred and Custom Flat Strat HSS pickup configuration
• Wilkinson WVS130-2P tremolo with Charvel locking tuners

Specifications

Body

• Body Shape: Dinky
• Body Style: Solid Body
• Body Material: Basswood
• Top Material: Quilt Maple
• Body Finish: Gloss
• Color: Amber Tiger Eye
• Upper-Fret Access: Sculpted Shredder’s Cut Heel
• Lower Back Bout: Scalloped

Neck

• Neck Material: Caramelized Maple
• Neck Construction: Bolt-On with Graphite Reinforcement
• Neck Shape: Speed Neck with Rolled Fingerboard Edges
• Neck Finish: Natural Satin
• Scale Length: 25.5" / 648 mm
• Fingerboard Material: Ebony
• Fingerboard Radius: 12"-16" Compound / 304.8-406.4 mm
• Number of Frets: 24
• Fret Size: Jumbo Stainless Steel
• Position Inlays: 4 mm Pearloid Dots
• Side Dots: Luminlay
• Nut: Graph Tech TUSQ XL
• Nut Width: 1.6875" / 42.86 mm
• Truss Rod: Dual-Action
• Truss Rod Adjustment: Heel-Mount Wheel
• Headstock: Licensed Fender Stratocaster

Hardware

• Bridge: Wilkinson WVS130-2P Tremolo
• Tremolo Arm: Wilkinson
• Tuning Machines: Charvel-Branded Die-Cast Locking
• Hardware Finish: Chrome
• Pickup Covers: Black/Cream
• Control Knobs: Speed Knobs
• Switch Tip: Black
• Pickguard: None
• String Tree: Fender Standard String Guide
• Neck Attachment: 4-Bolt Sculpted Heel
• Strap Buttons: Standard
• Strings: Nickel Plated Steel, .009-.042

Electronics

• Bridge Pickup: Seymour Duncan Full Shred TB-10 Humbucker
• Middle Pickup: Seymour Duncan Custom Flat Strat SSL-6 Single-Coil
• Neck Pickup: Seymour Duncan Custom Flat Strat SSL-6 RWRP Single-Coil
• Pickup Configuration: HSS
• Volume: 500K EVH Bourns Low Friction Pot
• Tone: No-Load Tone Control
• Switching: 5-Position Blade
  • Position 1: Full Bridge Pickup
  • Position 2: Bridge Inner Coil + Middle Pickup
  • Position 3: Bridge Outer Coil + Neck Pickup
  • Position 4: Middle + Neck Pickups
  • Position 5: Full Neck Pickup

Miscellaneous

• Series: Pro-Mod Plus
• Orientation: Right-Handed
• Country of Origin: Indonesia
• Unique Feature: Luminlay Side Dots
