EVH 5150 Iconic Series 15W 6L6 Head Ivory

The 5150 Iconic Series 15W 6L6 Head brings EVH’s high-gain amp platform into a compact all-tube format, delivering 15 watts from a single 6L6 power tube. Two channels divide the amp into Clean/Overdrive and Lead/Burn sections, providing multiple gain ranges without the size and output of a full-powered 5150 head.

Each channel has dedicated Gain and Volume controls. The Green channel’s Overdrive switch moves from clean sounds into higher-gain territory, while the Red channel’s Burn switch adds another stage of saturation. Both channels share Low, Mid and High EQ, along with global Master Boost, Reverb, Resonance and Presence controls. The included two-button footswitch also provides access to the 6dB Clean Input Stage Boost.

A quarter-power setting reduces output for lower-volume playing and recording. Connectivity includes a speaker-emulated 1/8" stereo headphone output, 1/8" stereo line output, effects loop and two parallel speaker outputs with selectable 4-, 8- or 16-ohm impedance.

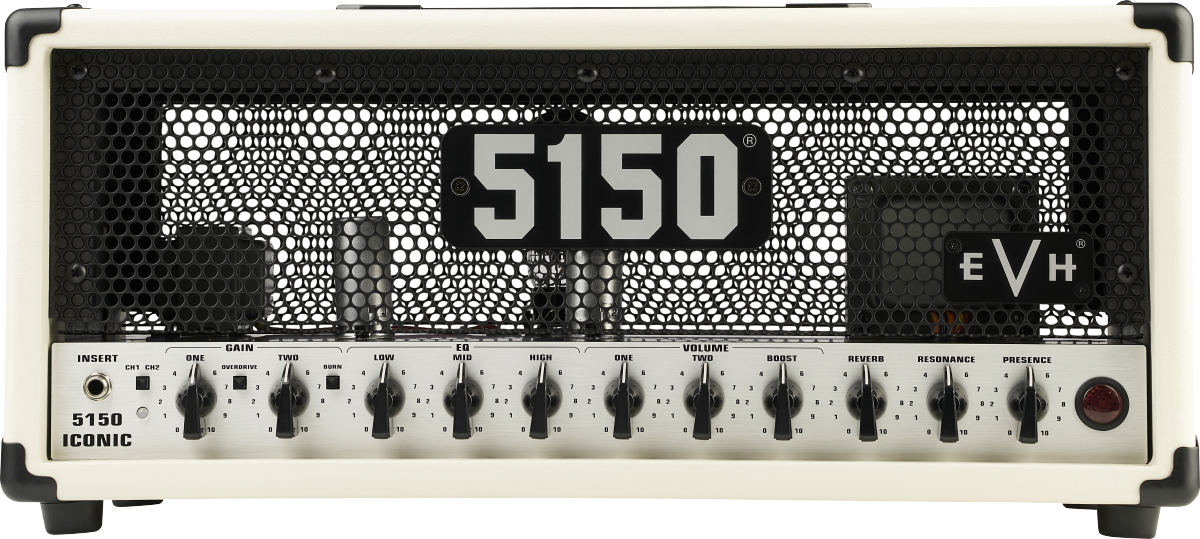

This version is finished in Ivory textured vinyl, providing a sharp contrast to the black metal grille and black chicken-head controls. A silver anodized front panel, red LED jewel and compact 19.7"-wide cabinet complete the design.

Highlights

• 15-watt all-tube design with 6L6 power tube
• Two channels with Clean/Overdrive and Lead/Burn modes
• Quarter-power setting for reduced-volume operation
• Speaker-emulated stereo headphone output
• Ivory textured vinyl covering with black metal grille

Specifications

Amplifier

• Amplifier Type: Tube
• Power: 15 Watts
• Channels: 2
• Channel 1: Clean/Overdrive
• Channel 2: Lead/Burn
• Channel 1 Controls: Gain with Overdrive Switch, Volume
• Channel 2 Controls: Gain with Burn Switch, Volume
• EQ: Shared Low, Mid, High
• Global Controls: Master Boost, Reverb, Resonance, Presence
• Power Reduction: Quarter-Power Setting
• Effects: Reverb

Tubes

• Power Tubes: 1 x 6L6
• Preamp Tubes: 2 x ECC83S

Connectivity

• Input: 1 x 1/4"
• Effects Loop: 1/4" Send/Return
• Headphone Output: 1/8" Stereo, Speaker Emulated
• Line Output: 1/8" Stereo
• Speaker Outputs: 2 x 1/4" Parallel
• Speaker Impedance: Selectable 4, 8 or 16 Ohms

Construction

• Covering: Ivory Textured Vinyl
• Cabinet Material: MDF
• Grille: Black Metal
• Front Panel: Silver Anodized Aluminum
• Control Knobs: Black Chicken-Head Style
• Handle: Molded Plastic Strap with Black Powder-Coated Caps
• Amplifier Jewel: Red LED

Miscellaneous

• Series: 5150 Iconic
• Color: Ivory
• Voltage: 120V
• Dimensions: 19.7" W x 10.2" H x 9" D
• Weight: 18 lbs.
• Country of Origin: Indonesia
• 2-Button Footswitch Included
