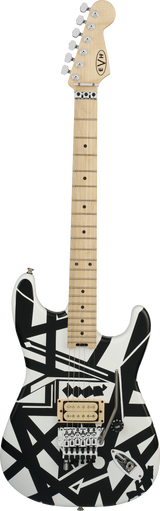

EVH EVH Striped Series Shapes Maple White and Black w/case

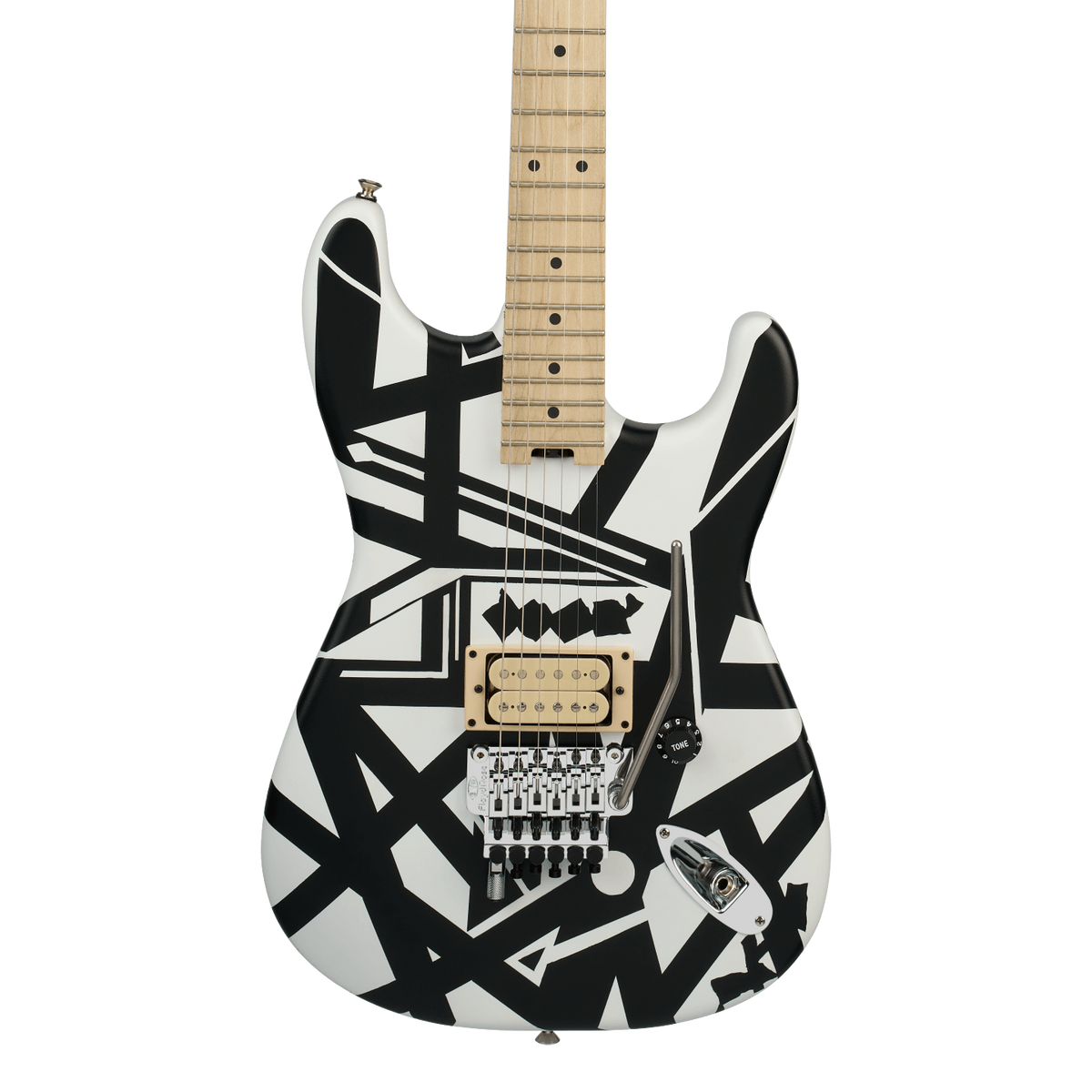

The EVH Striped Series Shapes in White and Black recreates the distinctive geometric design of one of Eddie Van Halen's guitars from the 1981 Fair Warning tour. Inspired by an original instrument Eddie used in Drop D tuning, the Shapes combines a mahogany body, single EVH Wolfgang humbucker, and Floyd Rose locking tremolo with the EVH D-Tuna system. Its bold White and Black painted graphic makes this one of the more recognizable designs in the Striped Series.

The mahogany body features a satin urethane finish and a direct-mounted EVH Wolfgang bridge humbucker. A single master volume control uses a 500K EVH Bourns low-friction potentiometer, keeping the electronics simple and accessible. The pickup provides the high-output response associated with EVH guitars, while the single-humbucker configuration stays faithful to the stripped-down approach of Eddie's original instruments.

The one-piece quartersawn maple neck features graphite reinforcement, a scarf joint, and Eddie's EVH Modified "C" backshape. Its oiled finish provides a smooth playing surface, while the 12"–16" compound-radius maple fingerboard combines a rounder feel near the nut with a flatter upper register. The neck also features 22 jumbo frets, black dot inlays, a 25.5" scale length, and a heel-mounted truss rod adjustment wheel.

An EVH-branded Floyd Rose double-locking tremolo provides pitch control, while the integrated EVH D-Tuna allows quick changes between standard and Drop D tuning when the bridge is properly configured. An R3 locking nut, EVH-branded tuning machines, chrome hardware, and oversized strap buttons complete the instrument. An EVH Wolfgang/Striped Series gig bag is included.

Highlights

• White and Black Shapes graphic inspired by Eddie Van Halen's 1981 Fair Warning tour guitar

• Mahogany body with direct-mounted EVH Wolfgang bridge humbucker

• Quartersawn maple neck with graphite reinforcement and EVH Modified "C" profile

• 12"–16" compound-radius maple fingerboard with 22 jumbo frets

• EVH Floyd Rose locking tremolo with D-Tuna and included gig bag

Specifications

Body

• Body Material: Mahogany

• Body Finish: Satin Urethane

• Body Shape: Shapes

• Color: White and Black

• Graphic: SHAPES Painted Graphic

• Pickguard: None

Neck

• Neck Material: One-Piece Quartersawn Maple with Graphite Reinforcement and Scarf Joint

• Neck Construction: Bolt-On

• Neck Shape: EVH Modified "C" Backshape

• Neck Finish: Oiled

• Fingerboard Material: Maple

• Fingerboard Radius: 12"–16" Compound

• Frets: 22 Jumbo

• Position Inlays: Black Dots

• Scale Length: 25.5"

• Nut: Floyd Rose R3 Locking

• Nut Width: 1.6875"

• Truss Rod Adjustment: Heel-Mount Adjustment Wheel

Hardware

• Bridge: EVH-Branded Floyd Rose Locking Tremolo with EVH D-Tuna

• Tremolo Arm: Floyd Rose

• Tuning Machines: EVH-Branded

• Hardware Finish: Chrome

• Control Knob: Black Plastic

• String Retainer: Floyd Rose Retainer Bar

• Neck Plate: EVH-Branded

• Strap Buttons: Oversized

• Strings: EVH Nickel-Plated Steel .009–.042

Electronics

• Bridge Pickup: EVH Wolfgang Humbucking

• Pickup Configuration: H

• Pickup Mounting: Direct-Mount

• Controls: Master Volume

• Volume Potentiometer: 500K EVH Bourns Low-Friction

• Switching: None

Miscellaneous

• Series: Striped Series

• Orientation: Right-Handed

• Number of Strings: 6

• Country of Origin: Mexico

• Included Case: EVH Wolfgang/Striped Series Gig Bag

• Optional Case: EVH Hardshell Case
