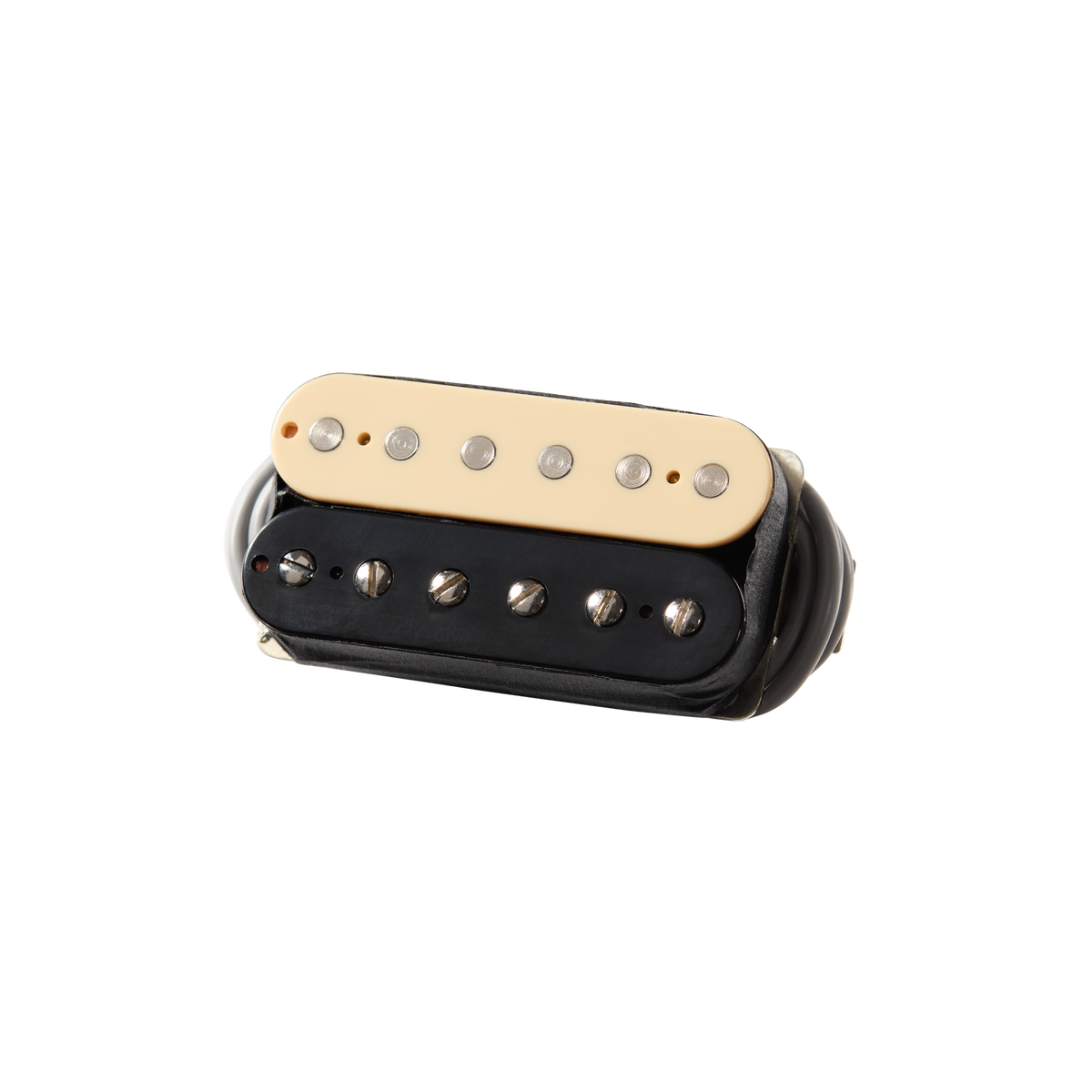

Gibson ELEV8 Treble Humbucker - Zebra

Overview

The Gibson ELEV8 Treble humbucker brings a bold new voice to Gibson’s legendary pickup lineage, combining the power and authority of an Alnico 8 magnet with custom-gauge coil wire for a focused, articulate response built for modern players. The ELEV8 family marks Gibson’s first use of Alnico 8 magnets in pickup construction, creating a platform designed to deliver serious punch without sacrificing musicality, clarity, or dynamic control.

Voiced for the treble—or bridge—position, this standard ELEV8 features an average DC resistance of 10k, striking a balance between muscular output and expressive dynamics. Its tight, controlled low end helps keep aggressive rhythm work precise, while the pickup retains strong note definition and articulation even as gain levels climb. Gibson specifically describes the ELEV8’s focused response as ideal for high-gain and modern styles.

Four-conductor wiring adds another layer of versatility, allowing the ELEV8 to accommodate coil splitting and more advanced switching configurations. That makes it an excellent choice for players who want thick, authoritative bridge humbucker tones while retaining access to brighter and more cutting sounds from the same guitar.

Finished with classic Zebra bobbins and wax potted to help control unwanted feedback, the Gibson ELEV8 Treble combines unmistakable Gibson style with a decidedly modern approach to power, precision, and tonal flexibility.

Highlights

• Modern Gibson humbucker designed for the treble/bridge position
• Powerful Alnico 8 magnet for increased punch and authority
• 10k average DC resistance
• Custom-gauge coil wire
• Tight, focused low-end response
• Excellent articulation and note definition at high gain
• Dynamic response that remains expressive under saturation
• Four-conductor wiring for expanded switching possibilities
• Coil-splitting compatible
• Wax potted to help resist unwanted feedback
• Classic uncovered Zebra bobbins
• Ideal for high-gain and modern playing styles

Specifications

Pickup

• Manufacturer: Gibson
• Series: ELEV8
• Model: ELEV8
• Pickup Type: Humbucker
• Position: Treble / Bridge
• Magnet: Alnico 8
• Average DC Resistance: 10k
• Wiring: 4-Conductor
• Wax Potted: Yes
• Bobbin Color: Zebra
• Cover: None

Tonal Character

• Voicing: Powerful, Focused, Modern
• Output: Powerful with Dynamic Control
• Low End: Tight and Controlled
• Response: Articulate and Dynamic
• High-Gain Performance: Designed to Maintain Clarity and Note Definition
• Recommended Styles: Modern and High-Gain Applications

Wiring & Versatility

• 4-Conductor Lead
• Coil-Splitting Compatible
• Supports Advanced Switching Options
• Capable of Traditional Full Humbucker Tones and Brighter Split-Coil Sounds

Miscellaneous

• SKU: PUE8TZB4
• Configuration: Treble, Zebra
• Magnet Type: Alnico 8
• Average DC Resistance: 10k
