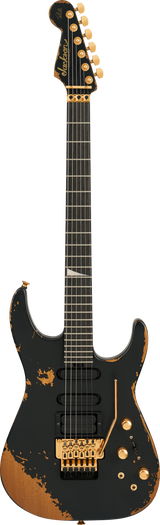

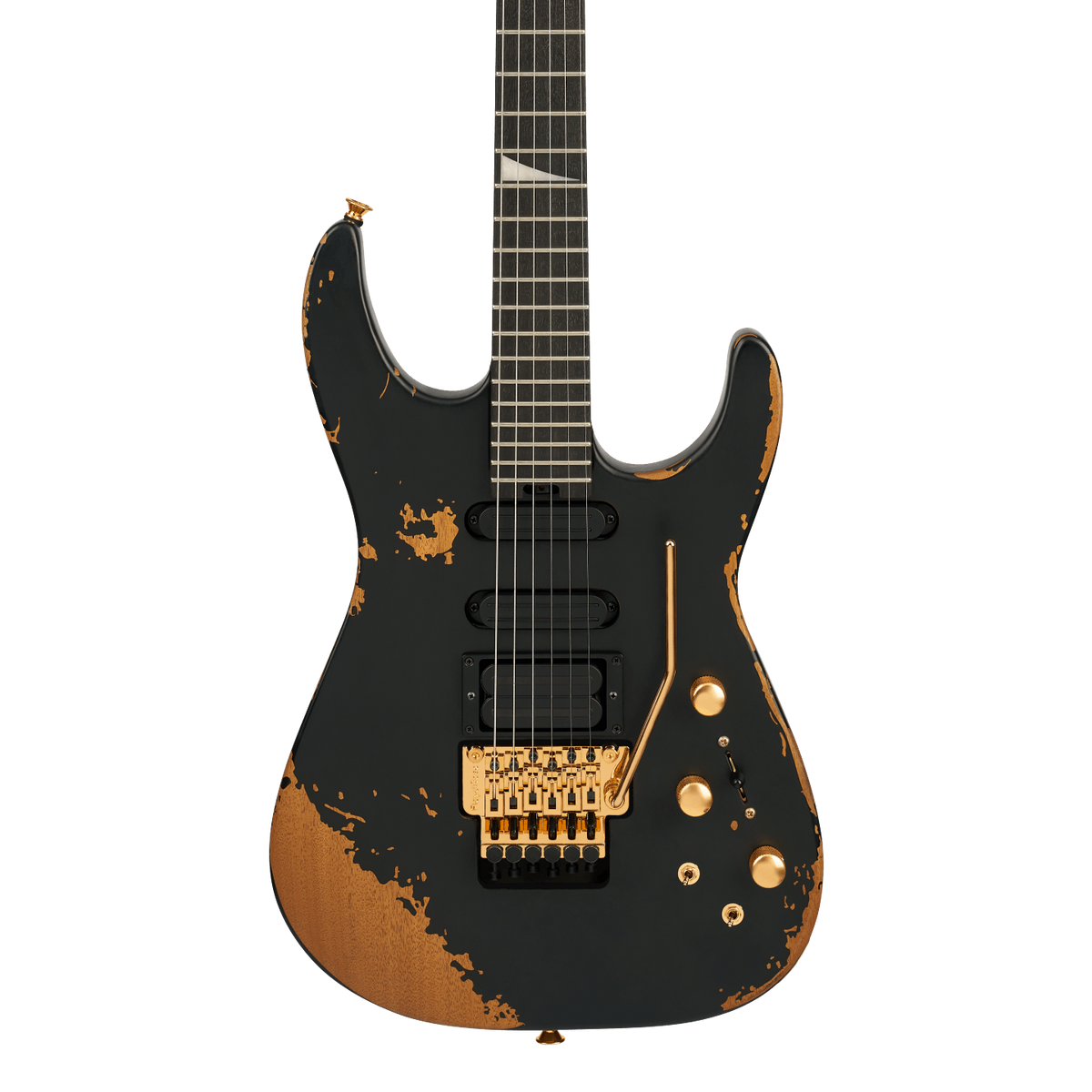

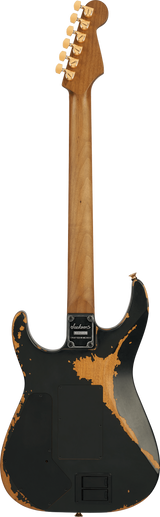

Jackson Pro Series Signature Phil Collen PC1-E Ebony Worn Black w/case

Phil Collen’s relationship with Jackson dates back to 1986, and the Pro Series Signature PC1-E carries forward the distinctive design of his long-running PC1 Dinky. This version combines a genuine mahogany body with a distressed Worn Black nitrocellulose lacquer finish and gold hardware, giving the guitar a deliberately aged appearance that fits the PC1’s high-performance design.

The one-piece caramelized maple neck is reinforced with dual graphite rods and finished with oil for a natural playing feel. Its ebony fingerboard uses Jackson’s 12"-16" compound radius, flattening out toward the upper register, with 24 jumbo frets and a single pearloid sharkfin inlay at the 12th fret. Luminlay side dots, a heel-mounted truss rod adjustment wheel and Floyd Rose locking nut complete the neck setup.

The HSS pickup configuration is built around a DiMarzio X2N humbucker at the bridge and DiMarzio Sugar Chakra pickup in the middle position. A push-pull volume control splits the bridge humbucker for additional single-coil sounds, while a five-way blade handles conventional pickup selection.

At the neck is the PC1 Sustainer Driver, powered by Jackson’s 18-volt Sustainer System. Dedicated intensity, on/off and Fundamental/Harmonic/Blend controls allow sustained notes to be shaped independently of the standard pickup controls. A recessed Floyd Rose 1000 Series double-locking tremolo and Jackson sealed die-cast locking tuners round out a hardware package designed for Collen’s demanding playing style.

Highlights

• PC1 Sustainer Driver with 18-volt Jackson Sustainer System
• DiMarzio X2N bridge humbucker and Sugar Chakra middle pickup
• Distressed Worn Black nitrocellulose lacquer finish with gold hardware
• Caramelized maple neck with ebony 12"-16" compound-radius fingerboard
• Recessed Floyd Rose 1000 Series double-locking tremolo

Specifications

Body

• Body: Mahogany
• Body Shape: Dinky
• Body Finish: Distressed Nitrocellulose Lacquer
• Color: Worn Black

Neck

• Neck Material: Caramelized Maple
• Neck Construction: Bolt-On with Dual Graphite Reinforcement
• Neck Finish: Oiled
• Fingerboard: Ebony
• Fingerboard Radius: 12"-16" Compound (304.8-406.4 mm)
• Frets: 24 Jumbo
• Position Inlays: Single Pearloid Sharkfin at 12th Fret
• Side Dots: Luminlay
• Scale Length: 25.5" (648 mm)
• Nut: Floyd Rose 1000 Series Locking
• Nut Width: 1.6875" (42.86 mm)
• Truss Rod: Dual-Action with Adjustment Wheel

Hardware

• Bridge: Floyd Rose 1000 Series Recessed Double-Locking Tremolo
• Tuning Machines: Jackson Sealed Die-Cast Locking
• Hardware Finish: Gold
• Control Knobs: Dome-Style
• Strings: Nickel Plated Steel, .009-.042
• Neck Plate: 4-Bolt

Electronics

• Bridge Pickup: DiMarzio X2N DP102 Humbucker
• Middle Pickup: DiMarzio Sugar Chakra DP427BK
• Neck Pickup: PC1 Sustainer Driver
• Pickup Configuration: HSS
• Controls: Volume with Push-Pull Coil Split, Tone, Sustainer Intensity
• Pickup Switching: 5-Position Blade
• Sustainer Controls: On/Off and Fundamental/Harmonic/Blend Switch
• Special Electronics: 18-Volt Jackson Sustainer System

Miscellaneous

• Series: Artist Signature
• Orientation: Right-Hand
• Country of Origin: Mexico
• Case: Foam Core Case Included
