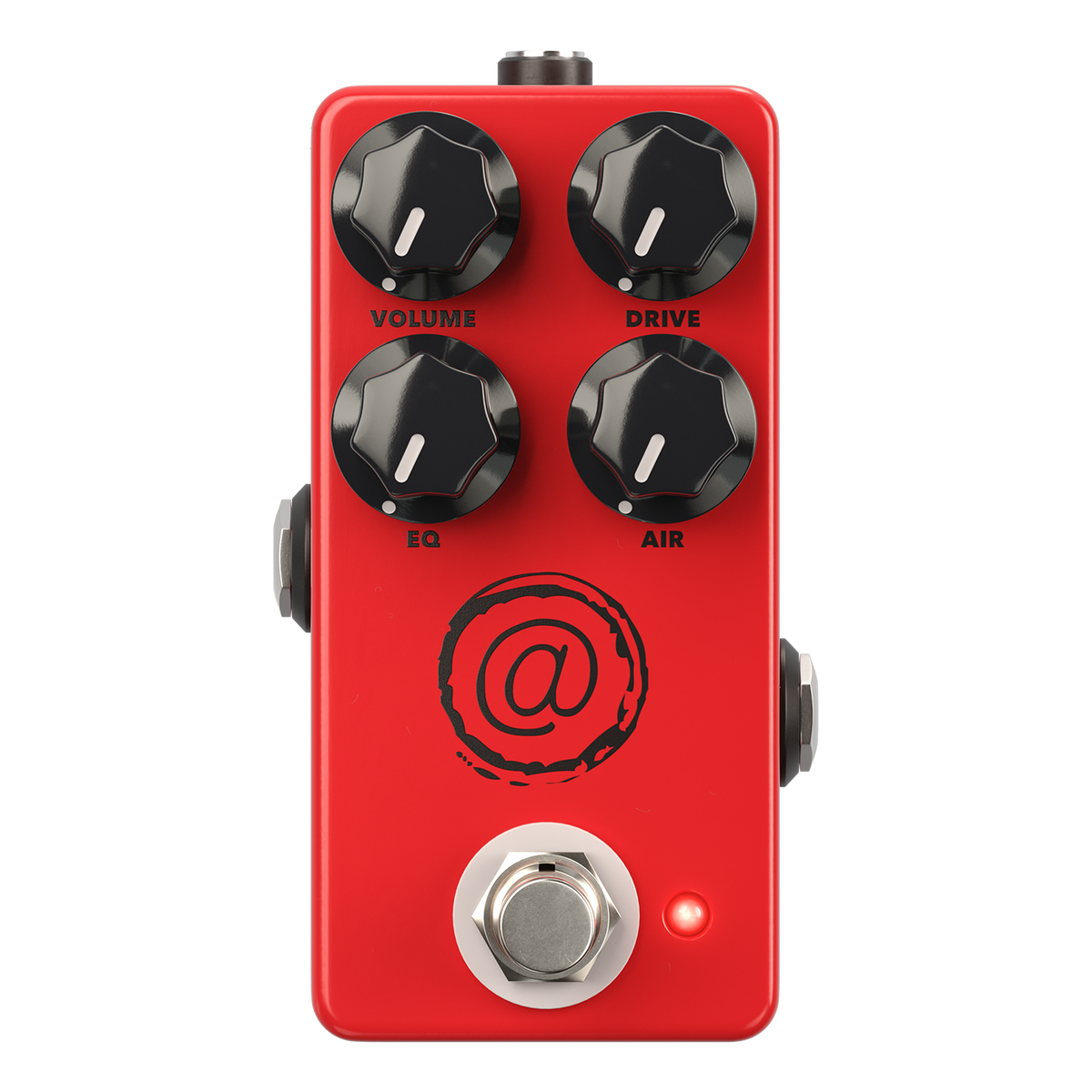

JHS AT Mini Overdrive Andy Timmons Pedal

The JHS AT Mini puts Andy Timmons' signature overdrive sound into a more compact pedalboard-friendly format. Based on the original V1 AT circuit, the AT Mini is permanently configured in Andy's preferred 100-watt voicing—the open, loud, less-compressed setting designed to deliver plenty of output and amp-like crunch.

Rather than simplifying the core sound, JHS retained the V1 circuit and its four-knob control layout while eliminating the wattage selector and reducing the enclosure size. Volume, Drive, EQ, and Air provide direct control over output, gain, overall tonal balance, and high-end presence, giving the AT Mini a broad range from driven blues tones to saturated British-style distortion.

Highlights

• Andy Timmons signature overdrive based on the original V1 AT circuit
• Fixed in Andy's preferred open and less-compressed 100-watt voicing
• Compact enclosure saves pedalboard space without changing the core V1 circuit
• Volume, Drive, EQ, and Air controls provide straightforward tone shaping
• Operates from 9VDC to 18VDC for flexible pedalboard integration

Specifications

Body

• Pedal Type: Overdrive/Distortion
• Enclosure: Compact
• Dimensions: 1.96" x 3.93" x 1.21"

Hardware

• Input: 1/4" Right-Side Jack
• Output: 1/4" Left-Side Jack
• Switching: True Bypass
• Power: 9VDC–18VDC, Center Negative
• Current Draw: 10mA

Electronics

• Circuit: Original V1 AT Circuit
• Voicing: Fixed 100-Watt Mode
• Controls:
  • Volume: Controls Output Level
  • Drive: Controls Drive and Gain
  • EQ: High-Pass Filter for Overall Brightness/Darkness
  • Air: Presence-Style High-Frequency Control
• Wattage Voicing Selector: Fixed at 100-Watt Setting

Miscellaneous

• Artist: Andy Timmons
• Part Number: ATM
• UPC: 810209870126
• Assembled in Kansas City
