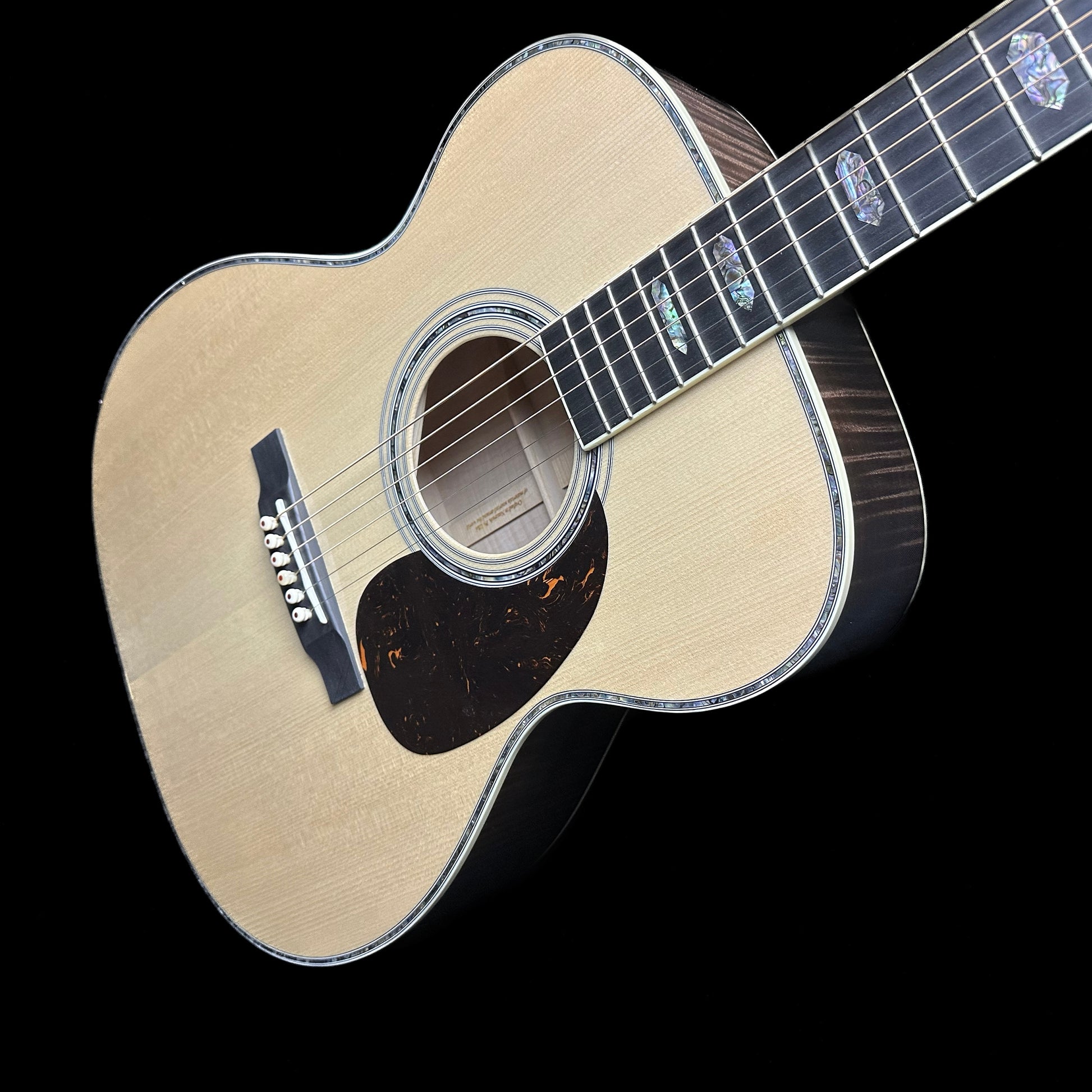

Martin Custom Shop 40 Style 0000 Adirondack/Flamed Maple w/case

Crafted with passion and precision, the Martin Custom Shop guitars designed by Tone Shop Guitars’ custom expert Mike Doty are a testament to the art and craftsmanship of lutherie. Each guitar is a masterpiece, featuring hand-selected tone woods that not only ensure superior sound quality but also add a unique character to every instrument. The meticulous selection process guarantees that each piece of wood contributes to the rich, resonant tones that Martin guitars are renowned for.

The inlays are a work of art in themselves, with options ranging from simple elegance to intricate designs. They are carefully crafted from materials such as pearl, stone, metal, and exotic woods, adding a personal touch that reflects the guitarist’s style and story.

The specifications of these guitars are tailored to perfection. From the body shape and size to the neck profile and tuning machines, every detail is considered to create a guitar that is not just an instrument, but an extension of the musician.

These guitars are more than just a sum of their parts—they are a conduit for musical expression, built to inspire and endure. Whether on stage or in the studio, a Martin Custom Shop guitar designed by Tone Shop Guitars is the ultimate companion for any musician seeking the pinnacle of acoustic performance.



Appointment Level: Standard

Adhesive: Modern Adhesive

Top Material: Adirondack Spruce

Bracing Material, Top: Adirondack Spruce

Back and Side Material: Pacific Big Leaf Flamed Maple

Binding Material: Grained Ivoroid

Top Pearl: Perimeter Only

Rosette Style: Style 45 Boltaron

Bridge Style: Modern Belly

Neck Material: 12/4 Genuine Mahogany

Neck Profile: Modified V

Neck Taper: High Performance Taper

Tuning Machines: Grover Gold V97-18GA StaTite 18:1

Vintage Btn

Fingerboard Material: Black Ebony

Fingerboard Inlay: Style 45 Hexagon

Finish Type: Standard

Finish Package: Gloss Body w/Satin Neck and

Polished Headplate

Top Color: Clear

Electronics: None



Frets Clear: 14 Frets Clear of Body

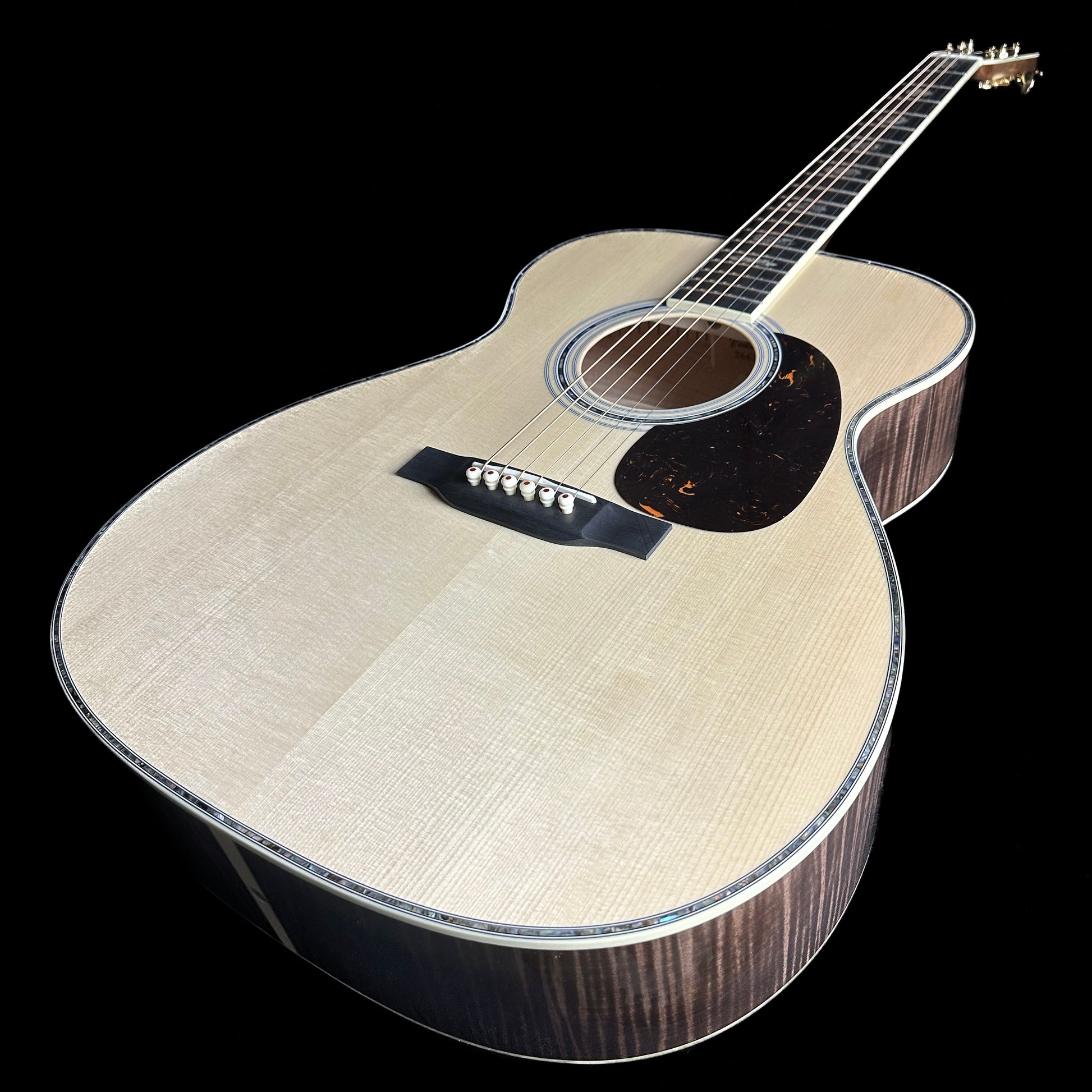

Body Shape: ''M/0000'' Grand Auditorium Body

Inspired by: M41

Appointment Level: Standard

Base Model Note: Wood selected by Custom Expert Tone Shop Guitars - Pacific Big

Leaf Flamed Maple Set #YY-25

Adhesive: Modern Adhesive

Orientation: Right Handed

String Number: 6 String

Venetian Cutaway: No

Electronics: None

Body Depth: Standard

Scale Length: 25.4"

Compensated Scale Length: 25.470"

Neck Joint: Dovetail

Truss Rod: Adjustable 14 Fret



TOP

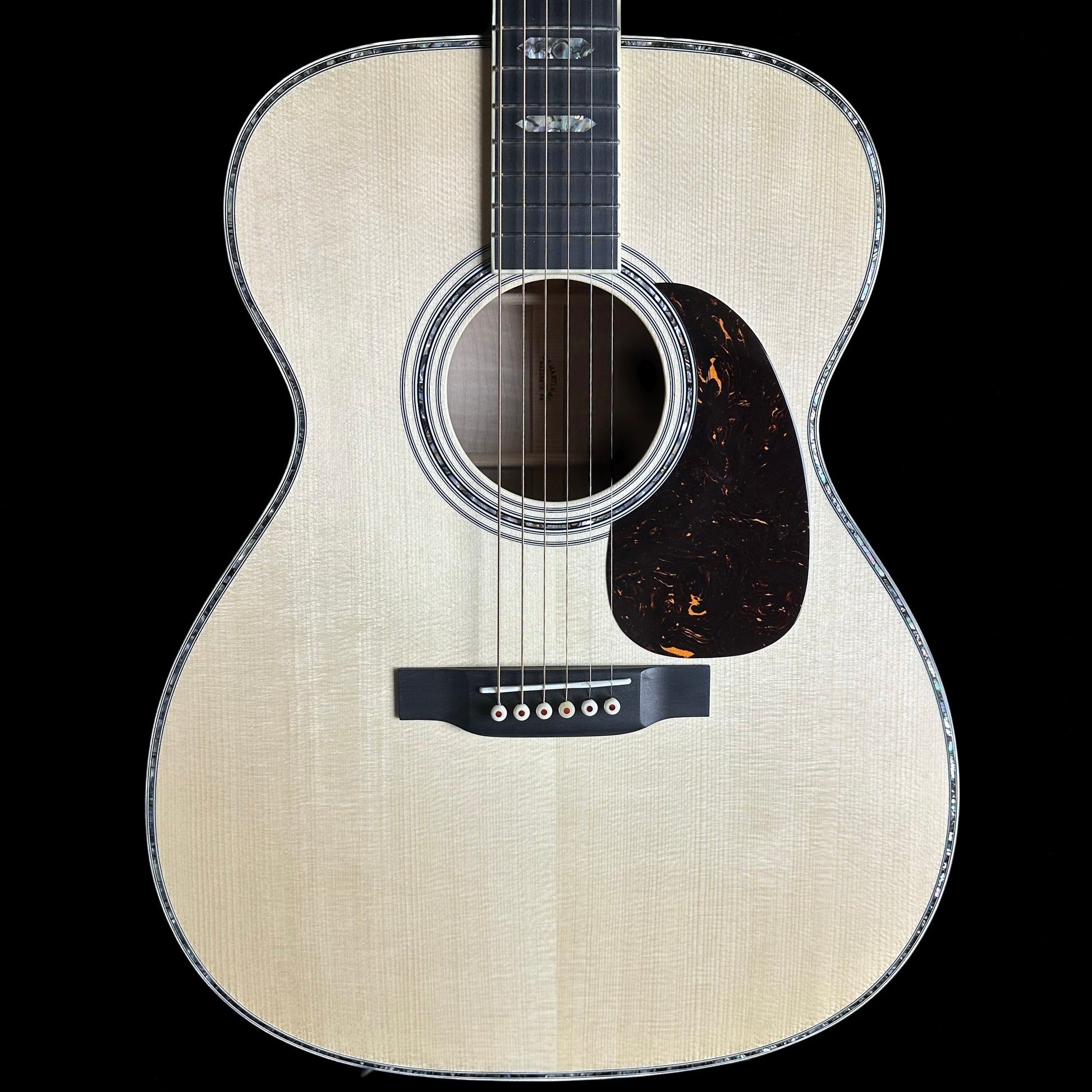

Top Material: Adirondack Spruce

Top Material Upgrade: Premium

Final Top Grade: Grade 8

Top Thickness: Standard

Bracing Material, Top: Adirondack Spruce

Bracing Pattern, Top: X Brace - Forward Shifted

Bracing Shape, Top: Scalloped

Bracing Style, Top: Golden Era

Bracing Size, Top: 5/16''

Binding Material: Grained Ivoroid





Top Pearl: Perimeter Only

Top Pearl Species: Regular Abalone



Rosette Style: Style 45 Boltaron

Rosette Pearl Species: Select Abalone



Pickguard Material: Faux Tortoise

Under Finish Pickguard: No

Pickguard Pattern: Pattern 22B

Pickguard Inlay: None

Pickguard Inlay Pearl Species: N/A

Rosette and Pickguard Note:



BACK AND SIDE

Front Block: BL,Mahogany,Front,000,14,Adj

Rear Block: BL,Mahogany,Rear,000

Back Piece Qty: 2 Piece

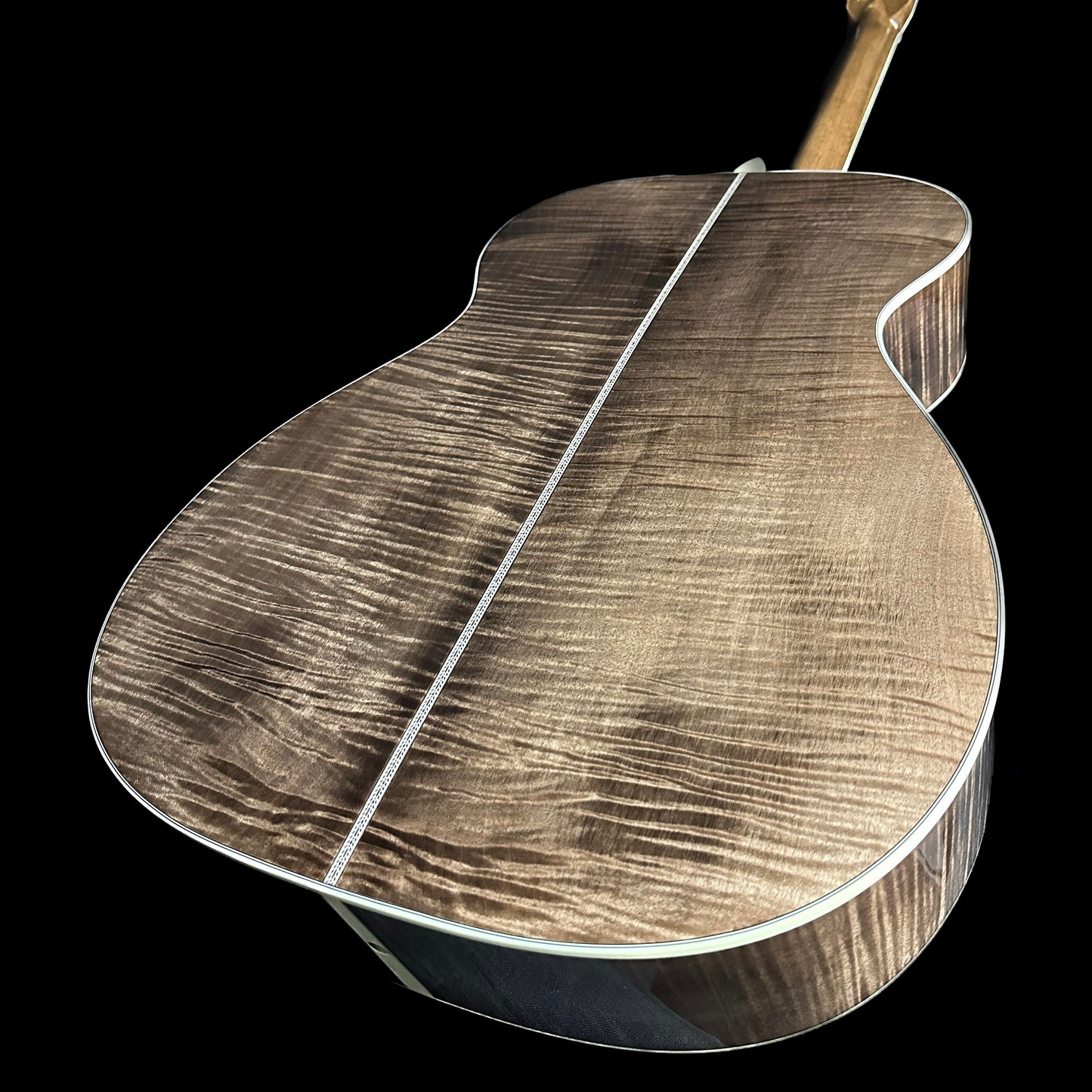

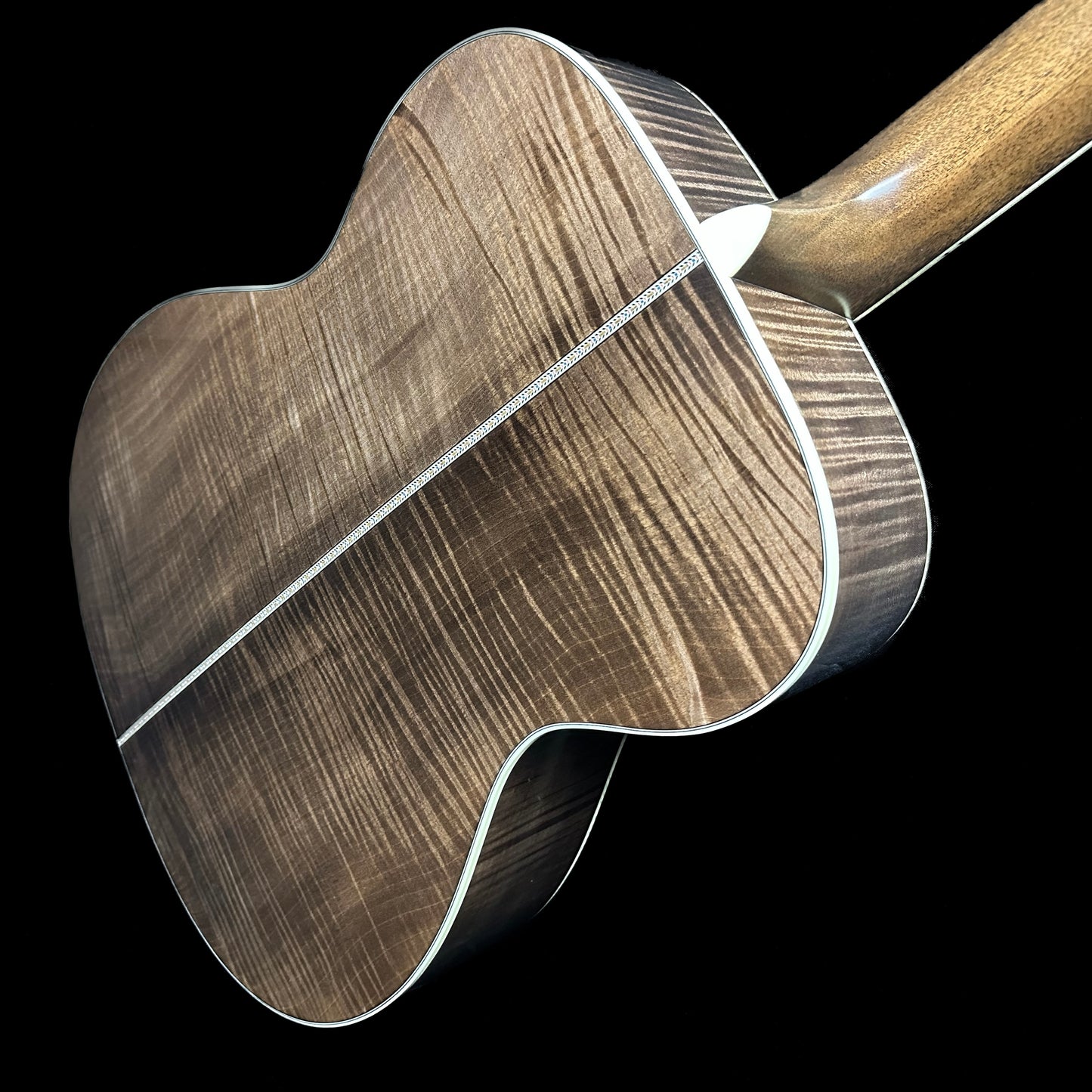

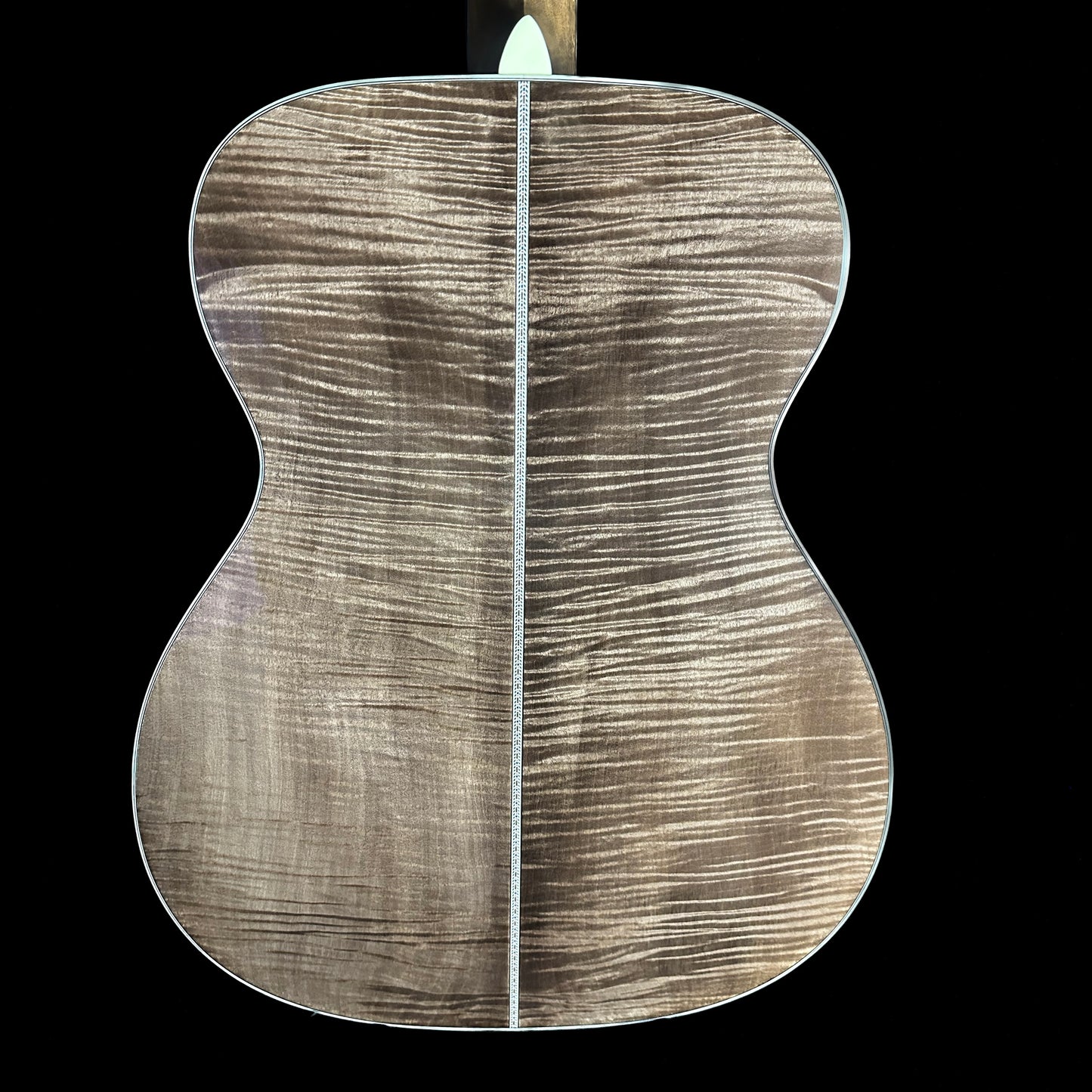

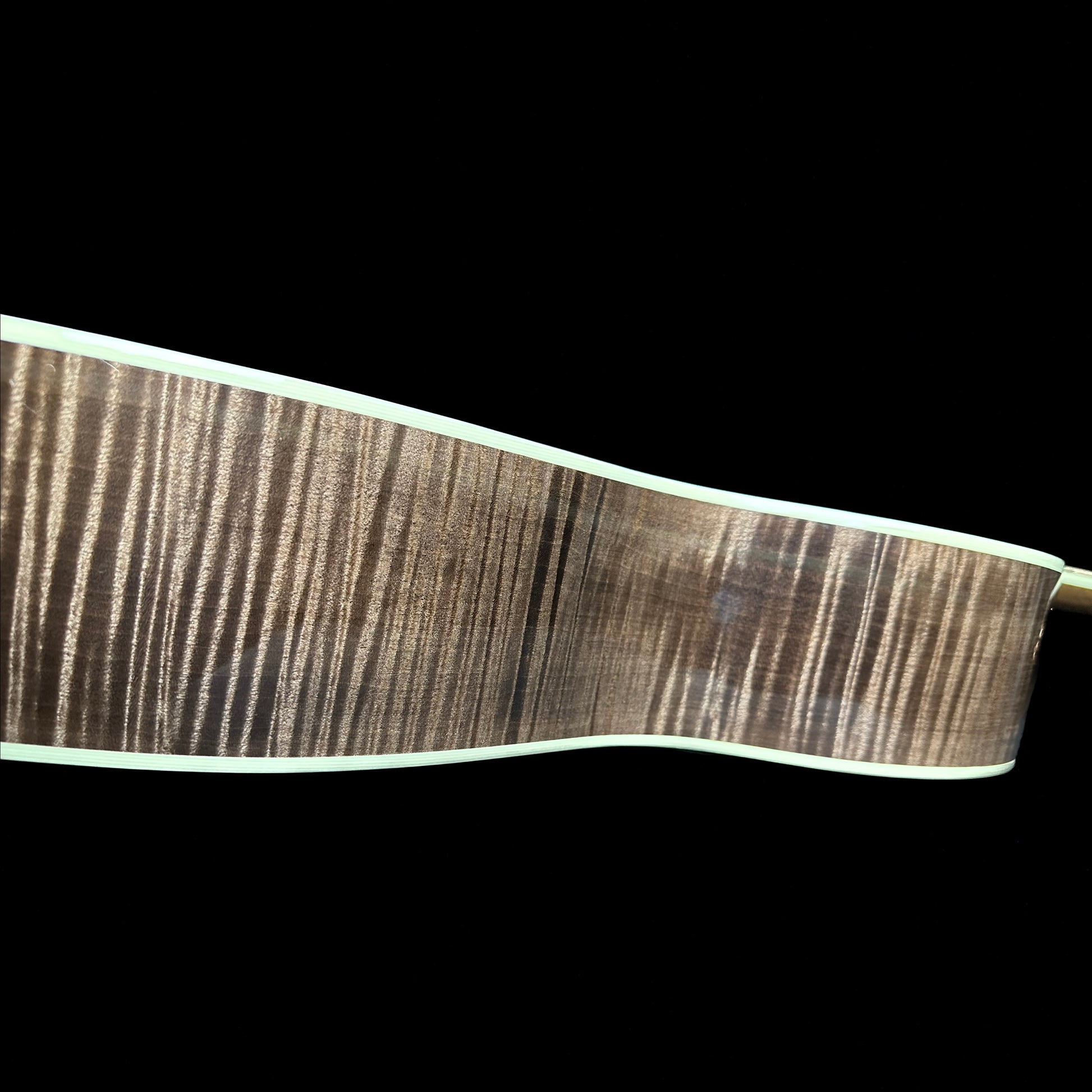

Back and Sides Material: Pacific Big Leaf Flamed Maple

Back and Sides Material Upgrade: Standard

Back and Sides Final Grade: AAA

Wedge Material Upgrade: Premium

Back Purfling: Style 45 (Mosaic)

Bracing Material, Back and Sides: Sitka Spruce

Bracing Pattern: J/M/0000 14 Fret

Center Strip: Sitka Spruce

Center Strip Stamp Location: Between 1st & 2nd Brace

Ribbons: Spanish Cedar

Side Strips: None

Endpiece Material: Grained Ivoroid



NECK

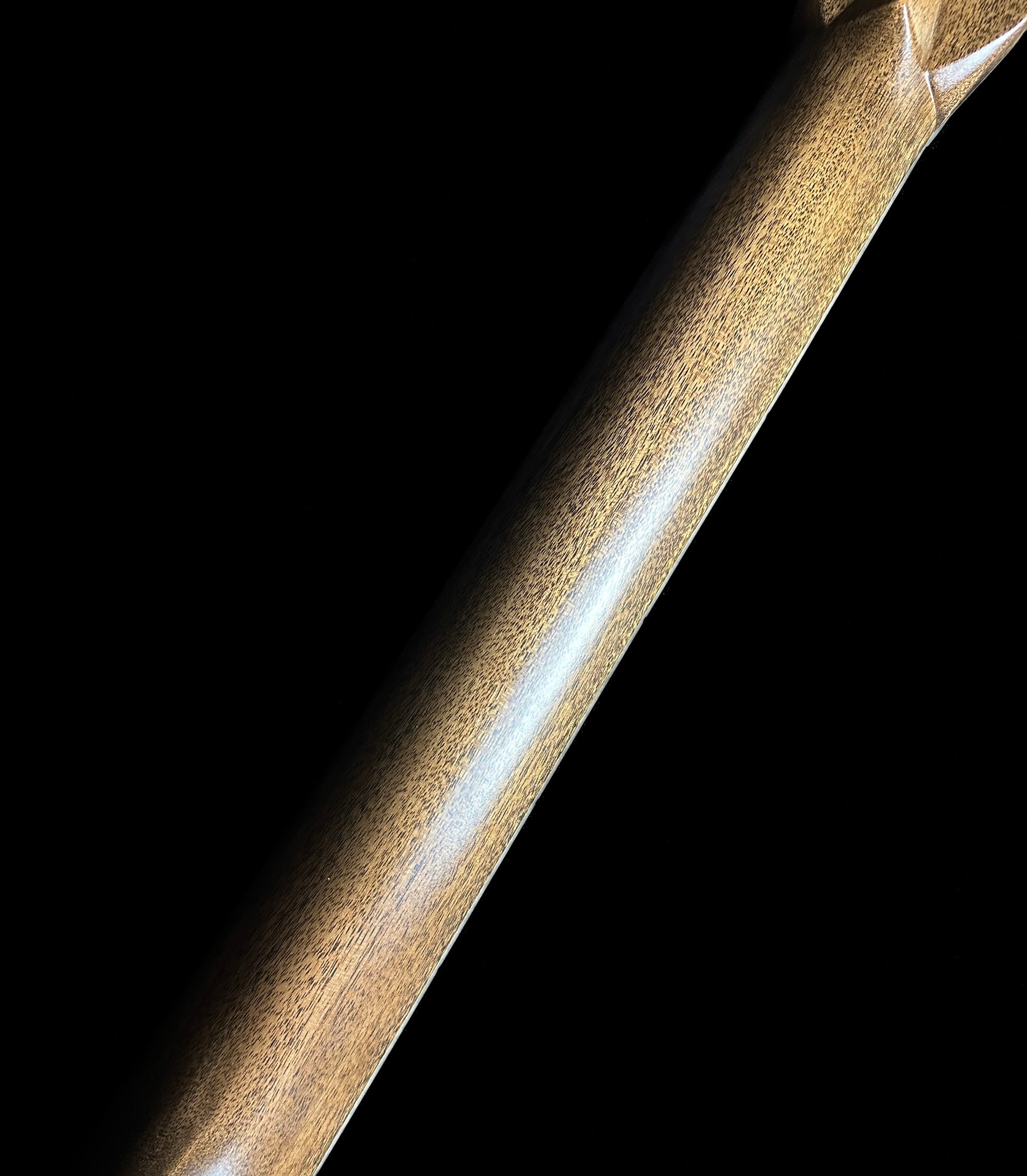

Neck Material: 12/4 Genuine Mahogany

Neck Center Piece Material: n/a

Neck Profile: Modified V

Neck Taper: High Performance Taper

Heelcap Material: Grained Ivoroid

Headstock: Solid

Diamond Volute: Standard

Headstock Taper: Square

Corners: Standard

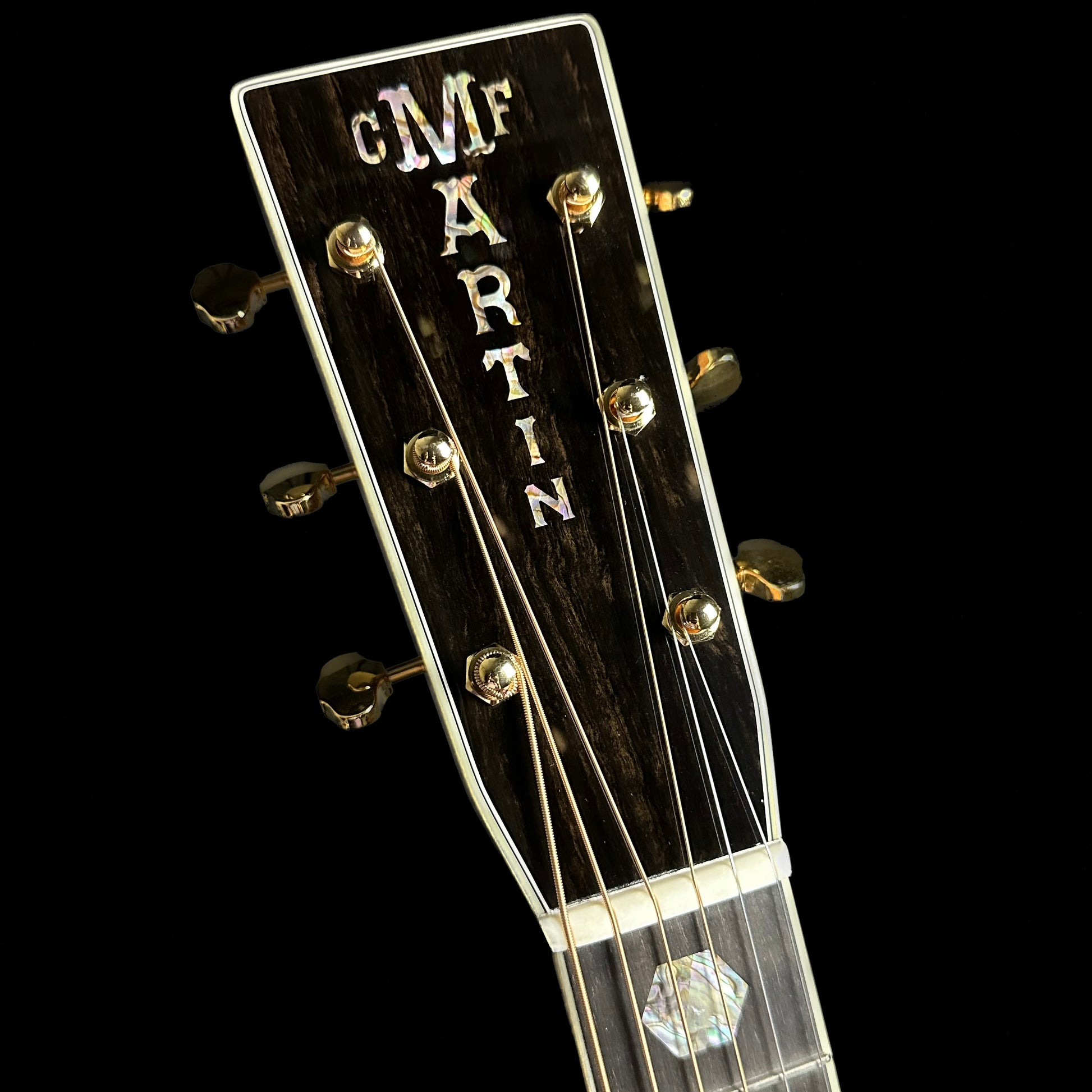

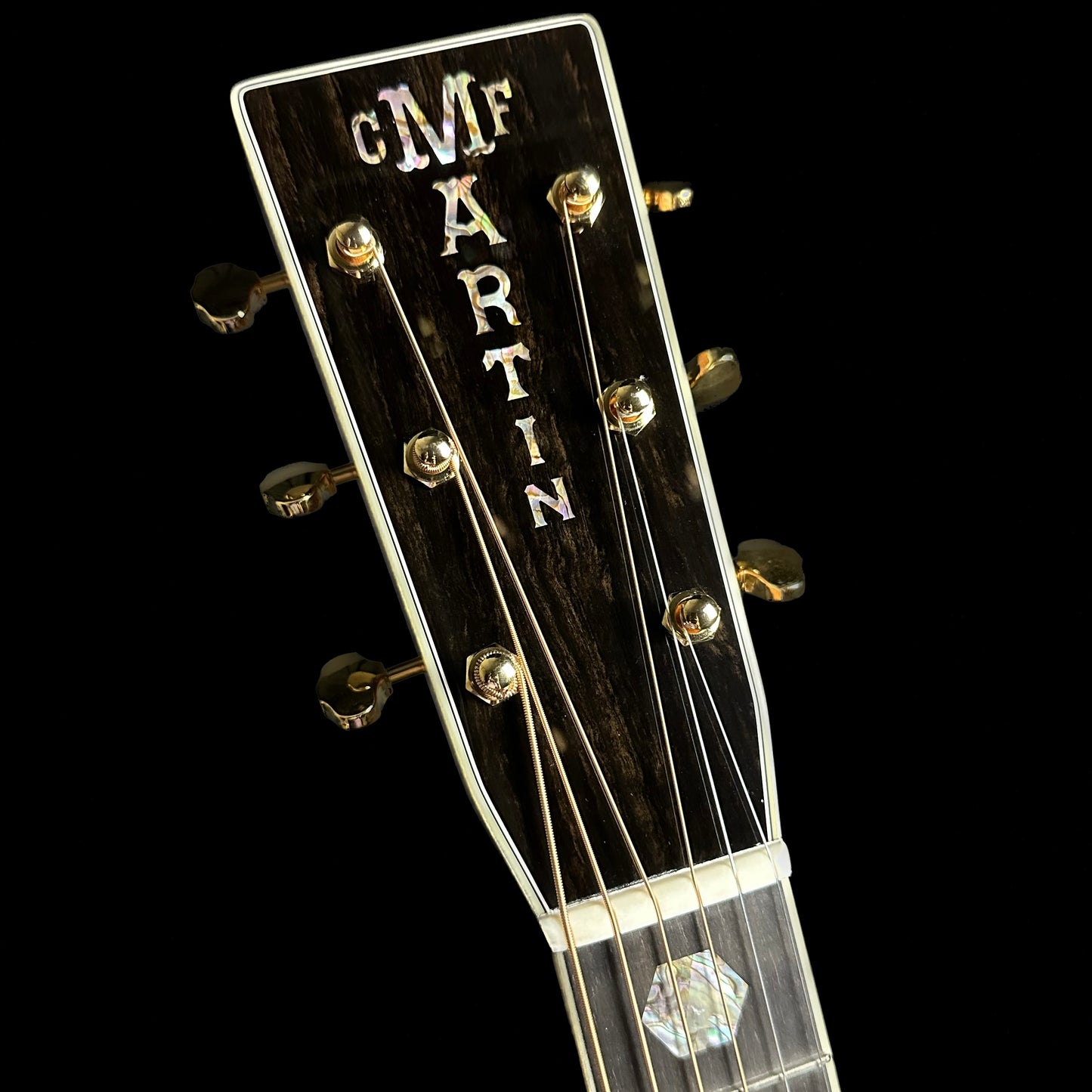

Headplate Material: Black Ebony

Headplate Material Grade: 3

Headplate Thickness: Standard

Headplate Binding: Yes

Headplate Inlay: CFM Block

Headplate Inlay Pearl Species: Select Abalone

Neck Material, Shape, Headstock Note:

FINGERBOARD

Fingerboard Material: Black Ebony

Fingerboard Material Grade: 3

Fingerboard Stain: No

Fingerboard Oil: Yes

Fingerboard Radius: 16''

Fingerboard Width at Nut: 1 3/4"

Fingerboard Width at 12th Fret: 2 1/8"

String Spacing: 2 5/32''

Fingerboard Length: 17.989''

Fingerboard Thickness: Standard Thickness

Fret Wire: Standard

Fingerboard Binding: Yes

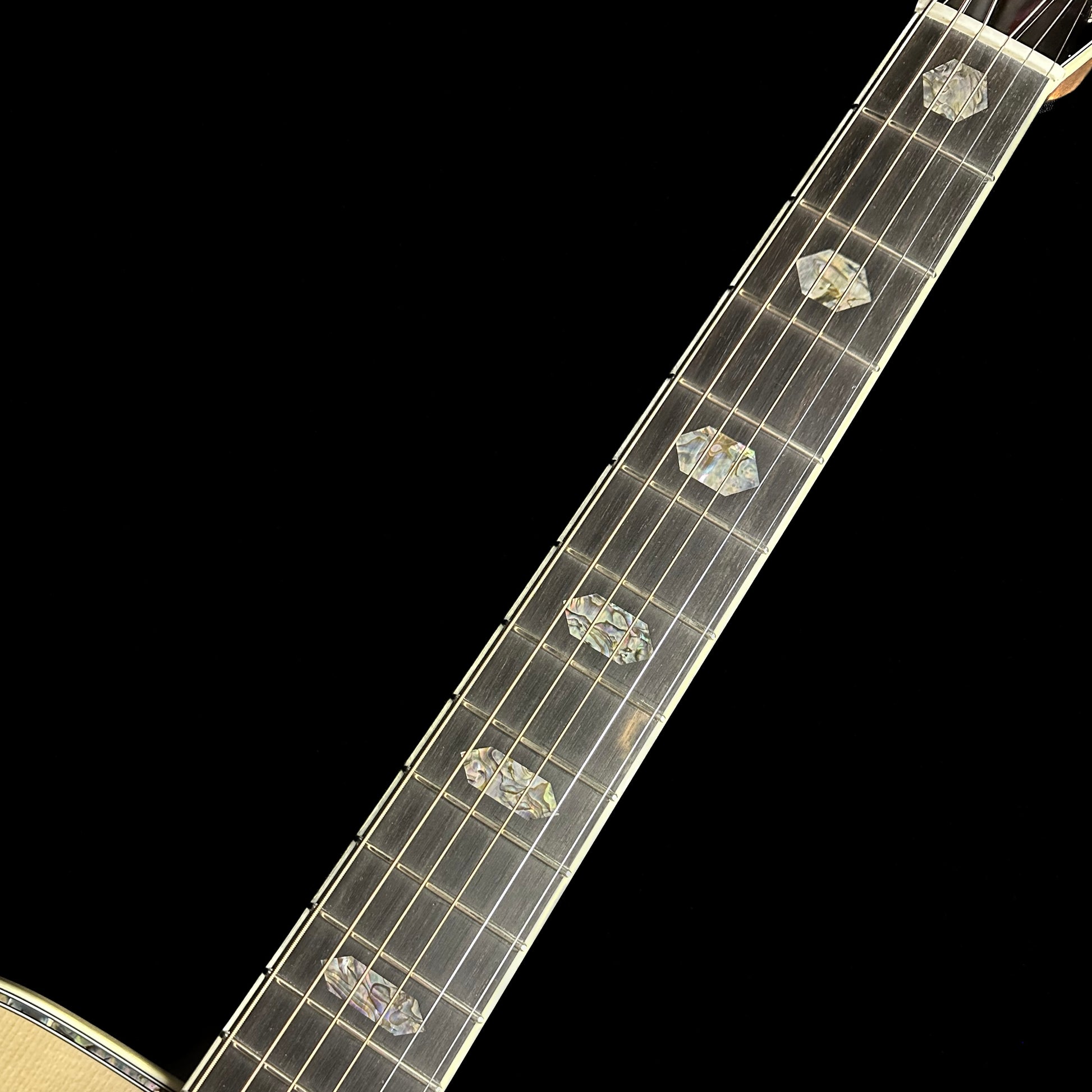

Fingerboard Inlay: Style 45 Hexagon

Fingerboard Inlay Pearl Species: Select Abalone

Side Dots: Black

Nut Material: Bone

Nut Positioning: Flat

FINISH

Finish Type: Standard

Stage 1 Aged Finish: No

Finish Package: Gloss Body w/Satin Neck and Polished Headplate

Top Color: Clear

Neck Filler: Rosewood



Finish and Extras Note: ****Walnut Stain on Back & Sides****



BRIDGE

Bridge Material: Black Ebony

Bridge Style: Modern Belly

Saddle Style: Drop in Saddle

Saddle Material: Compensated Bone

Bridge End Pins: Bone w/ Faux Tortoise



EXTRAS

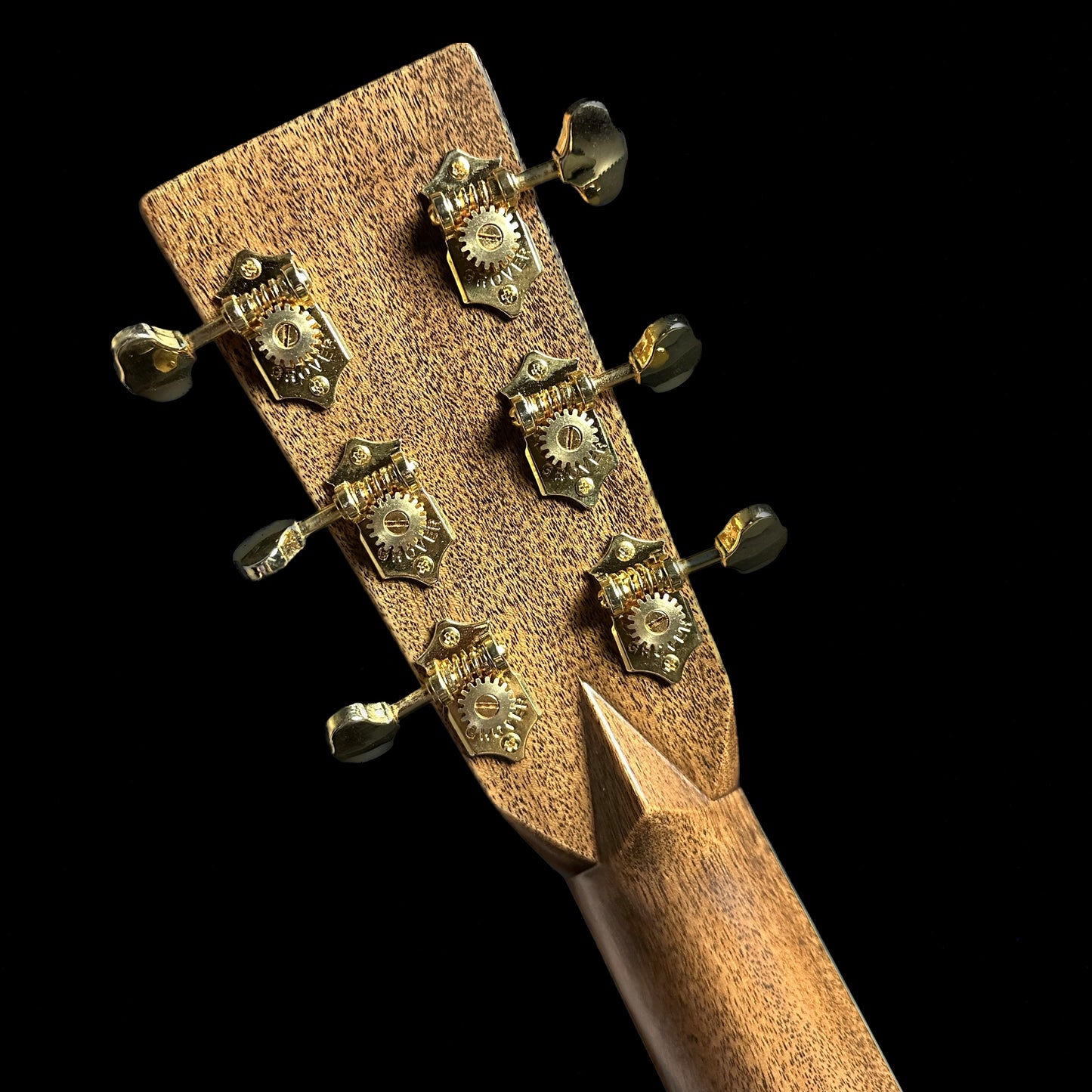

Tuning Machines: Grover Gold V97-18GA StaTite 18:1 Vintage Btn

Strings: Authentic Acoustic Lifespan 2.0

Strings Guage: Light

Strap Button: None

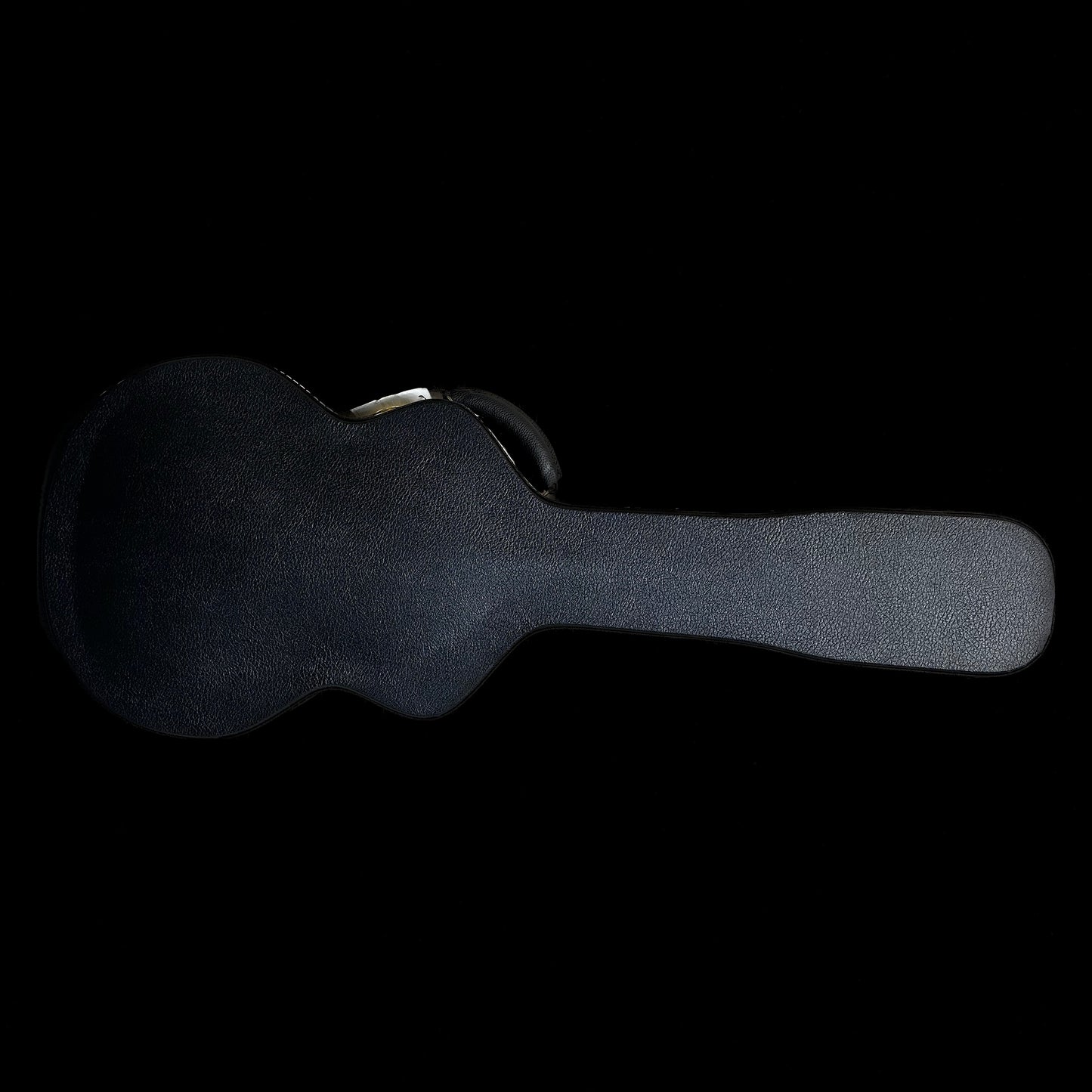

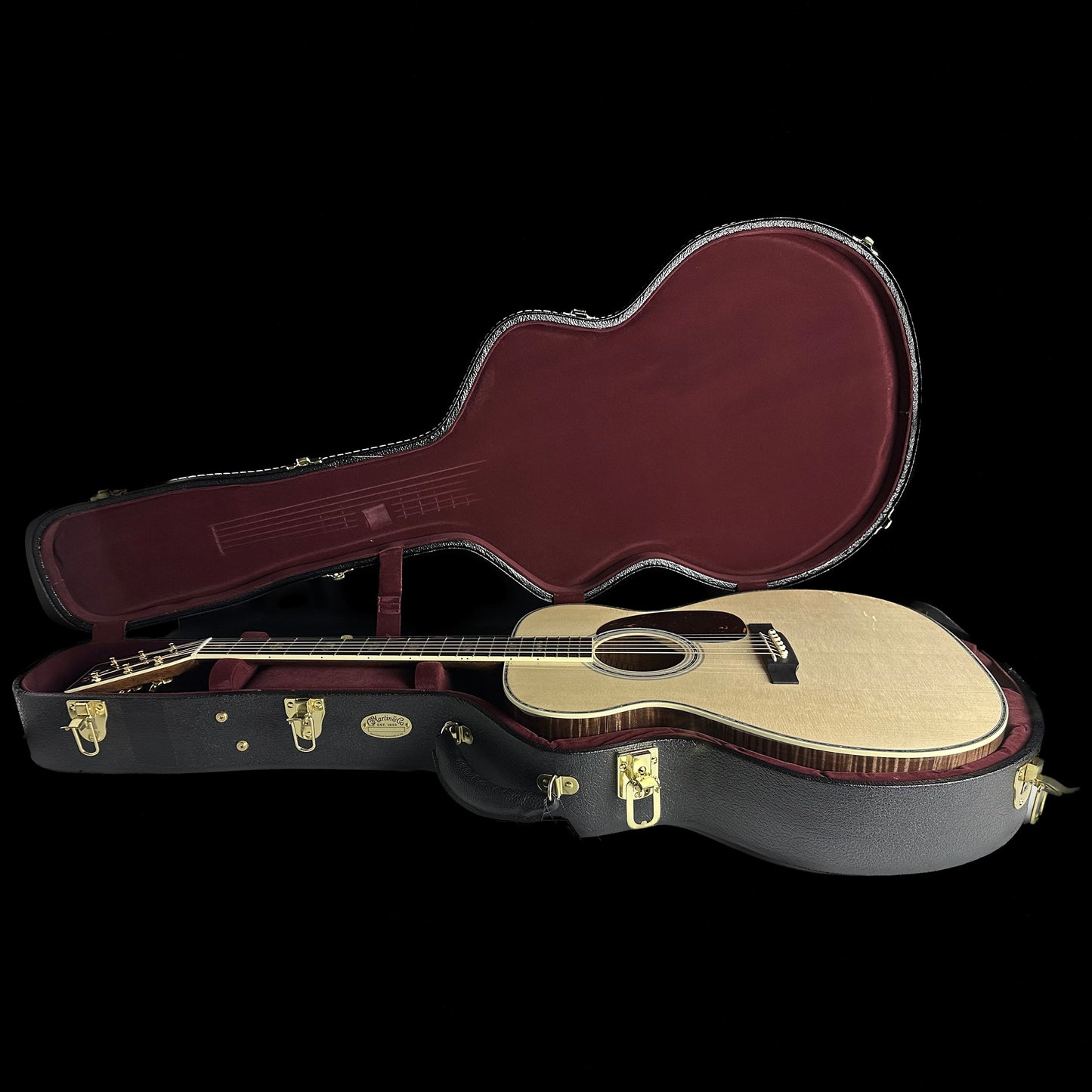

Case: 5-Ply Hardshell
