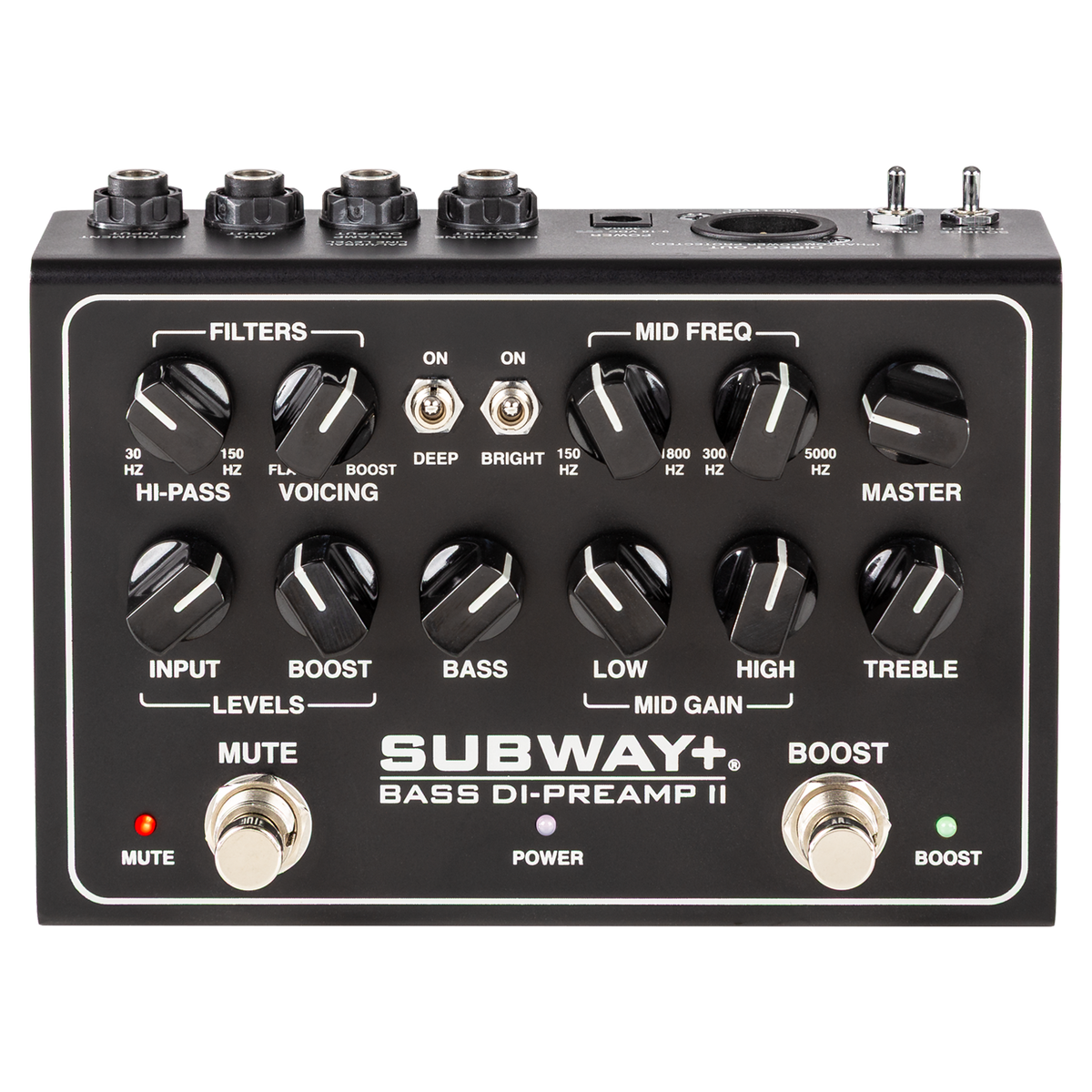

Mesa/Boogie Subway+ Bass DI Black/Silver Screen

Overview

The Mesa/Boogie Subway+ Bass DI-Preamp II combines the core features of Mesa's earlier Subway bass preamps into a compact pedalboard-friendly format designed for live performance, recording, and practice. Its solid-state J-FET preamp accommodates both active and passive basses, with dedicated Input, Boost, and Master controls providing everything from clean, warm bass tones to mild overdrive.

Tone shaping is extensive without relying on menus or presets. A variable Hi-Pass filter, Variable Voicing control, Deep and Bright switches, and fully active four-band EQ with sweepable Low Mid and High Mid frequencies provide detailed control over the bass signal. The Subway+ also includes a balanced XLR DI, balanced or unbalanced preamp output, headphone output, aux input, and footswitchable Mute and Boost functions for a versatile all-in-one bass preamp solution.

Highlights

• Solid-state J-FET bass preamp designed for active or passive instruments
• Fully active 4-band EQ with sweepable Low Mid and High Mid frequencies
• Variable Voicing and Hi-Pass controls plus Deep and Bright switches
• Footswitchable variable Boost and Mute for live and studio use
• Balanced XLR DI plus balanced/unbalanced preamp output, headphone output, and aux input

Specifications

Body

• Product Type: Bass DI/Preamp Pedal
• Series: Subway
• Finish: Black/Silver Screen
• Chassis Material: Aluminum
• Dimensions: 6" W x 4.25" D x 2.25" H
• Metric Dimensions: 152 mm W x 108 mm D x 57 mm H

Hardware

• Instrument Input: 1 x 1/4" for Active or Passive Bass
• Direct Output: Balanced XLR Mic-Level DI
• Preamp Output: 1/4" TS Unbalanced / TRS Balanced
• Headphone Output: Yes
• Auxiliary Input: Yes
• Footswitches:
  • Mute
  • Boost
• Power Requirement: 9–18V DC, Either Polarity

Electronics

• Preamp Type: Solid-State J-FET
• Input Level Control
• Variable Boost Level Control
• Master Output Level Control
• Variable Voicing: Flat to Vintage Scoop
• Variable Hi-Pass Filter: 30 Hz–150 Hz
• Deep Switch: Enhanced Low End
• Bright Switch: Enhanced Top End
• Fully Active 4-Band EQ:
  • Bass: ±12 dB
  • Low Mid: ±12 dB
  • High Mid: ±12 dB
  • Treble: ±12 dB
• Sweepable Low Mid Frequency: 150 Hz–1800 Hz
• Sweepable High Mid Frequency: 300 Hz–5000 Hz
• XLR DI Controls:
  • Pre/Post EQ
  • Ground Lift
• Footswitchable Mute
• Footswitchable Variable Boost

Miscellaneous

• Model: Subway+ Bass DI-Preamp II
• SKU: FP.SBDI
• Weight: 1.65 lb / 0.75 kg
• Country of Origin: China
• Suitable for Live Performance, Recording, Silent Practice, and Pedalboard Preamp Applications
