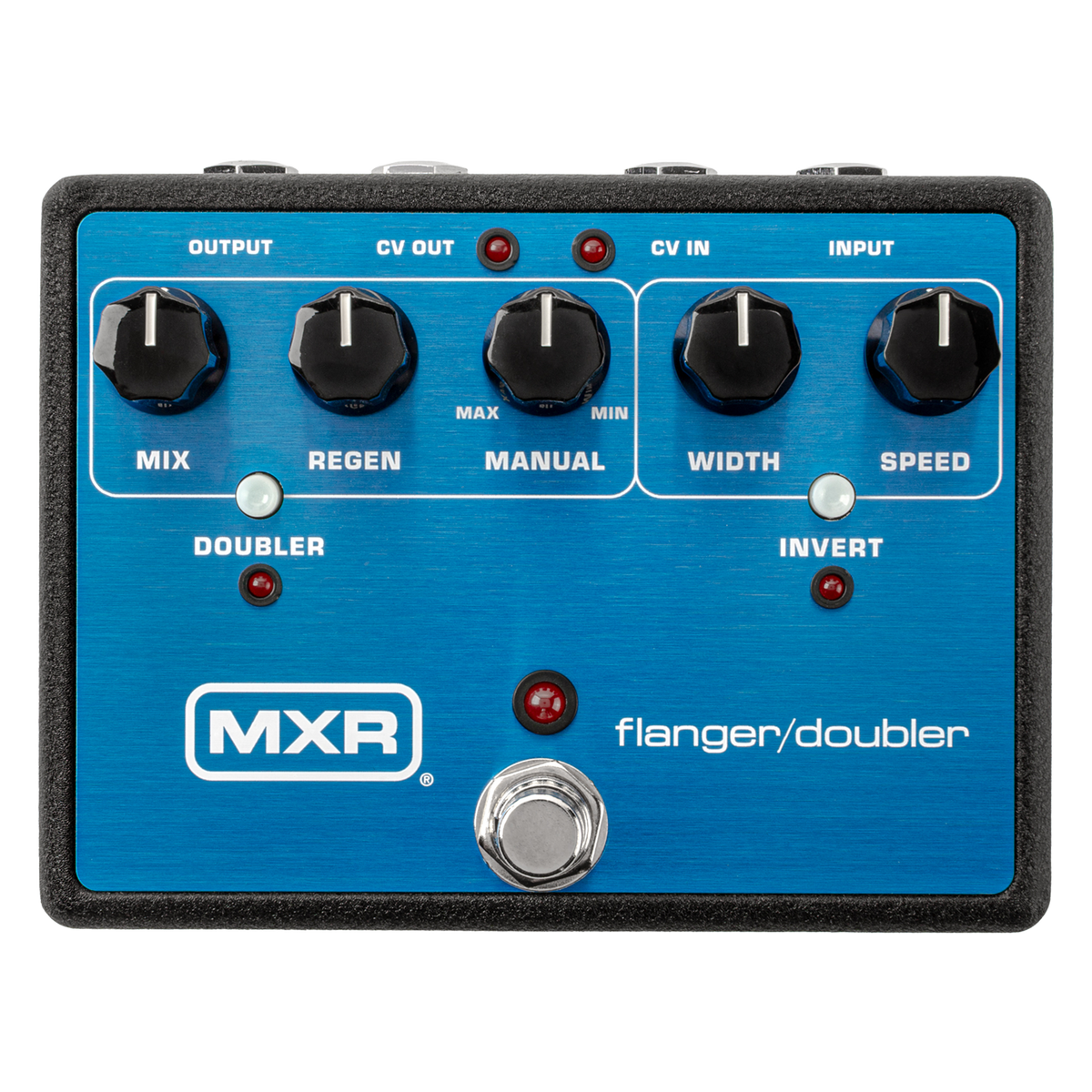

MXR M226 Flanger/Doubler Pedal

The MXR M226 Flanger/Doubler brings the sound and functionality of the original MXR rackmount Flanger/Doubler into a pedalboard-friendly format. Its all-analog design recreates the flanging and doubling effects heard across recordings from the 1970s and '80s, with enough control to move from subtle modulation and added depth to dramatic jet-like sweeps and layered textures.

Dedicated Flanger and Doubler operation significantly expands its range. Flanger mode covers metallic sweeps and classic whooshing modulation, while Doubler mode increases the delay time for sounds ranging from vibrato and chorus to slap-back delay and pitch-bent feedback. CV connectivity, wet-signal polarity inversion, and selectable instrument/line-level operation make the M226 equally useful with traditional guitar rigs, synthesizers, and more complex effect setups.

Highlights

• All-analog Flanger/Doubler inspired by the original MXR rack unit
• Dedicated Doubler mode covers chorus, vibrato, slap-back delay, and pitch-bent textures
• Mix, Regen, Manual, Width, and Speed controls provide detailed modulation shaping
• CV input and output provide integration with compatible pedals, synths, and external controllers
• Instrument/Line level switch provides optimized gain staging and additional headroom

Specifications

Body

• Pedal Type: Flanger/Doubler
• Circuit: All-Analog
• Model: M226
• Bypass: True Bypass

Hardware

• Footswitch: Effect On/Bypass
• Sweep LEDs: Dual LED Visual Delay/Modulation Indicators
• CV Input: 0–5V
• CV Output: 0–5V
• Input Level Switch: Instrument/Line
• Power Requirement: 9V DC
• Current Draw: 160 mA
• Battery Operation: Not Supported

Electronics

• Controls:
  • Mix
  • Regen
  • Manual
  • Width
  • Speed
• Mode Controls:
  • Doubler
  • Invert
• Mix Control: Fully Dry to Fully Wet
• Regen Control: Adjustable Feedback
• Manual Control: Adjustable Average Delay Time
• Width Control: Adjustable Modulation Sweep Range
• Speed Control: Adjustable Modulation Rate
• LFO Rate: 0.025 Hz–18.5 Hz
• Flanger Delay Time: 0.33 ms–5.5 ms
• Doubler Delay Time: 17 ms–66 ms
• Input Impedance: >220 kΩ
• Output Impedance:
  • Instrument: <1 kΩ
  • Line: <200Ω
• Maximum Input Level:
  • Instrument: 0 dBu
  • Line: +12 dBu

Miscellaneous

• Recommended Power: Dunlop ECB003/ECB003EU or MXR Brick Series Power Supply
