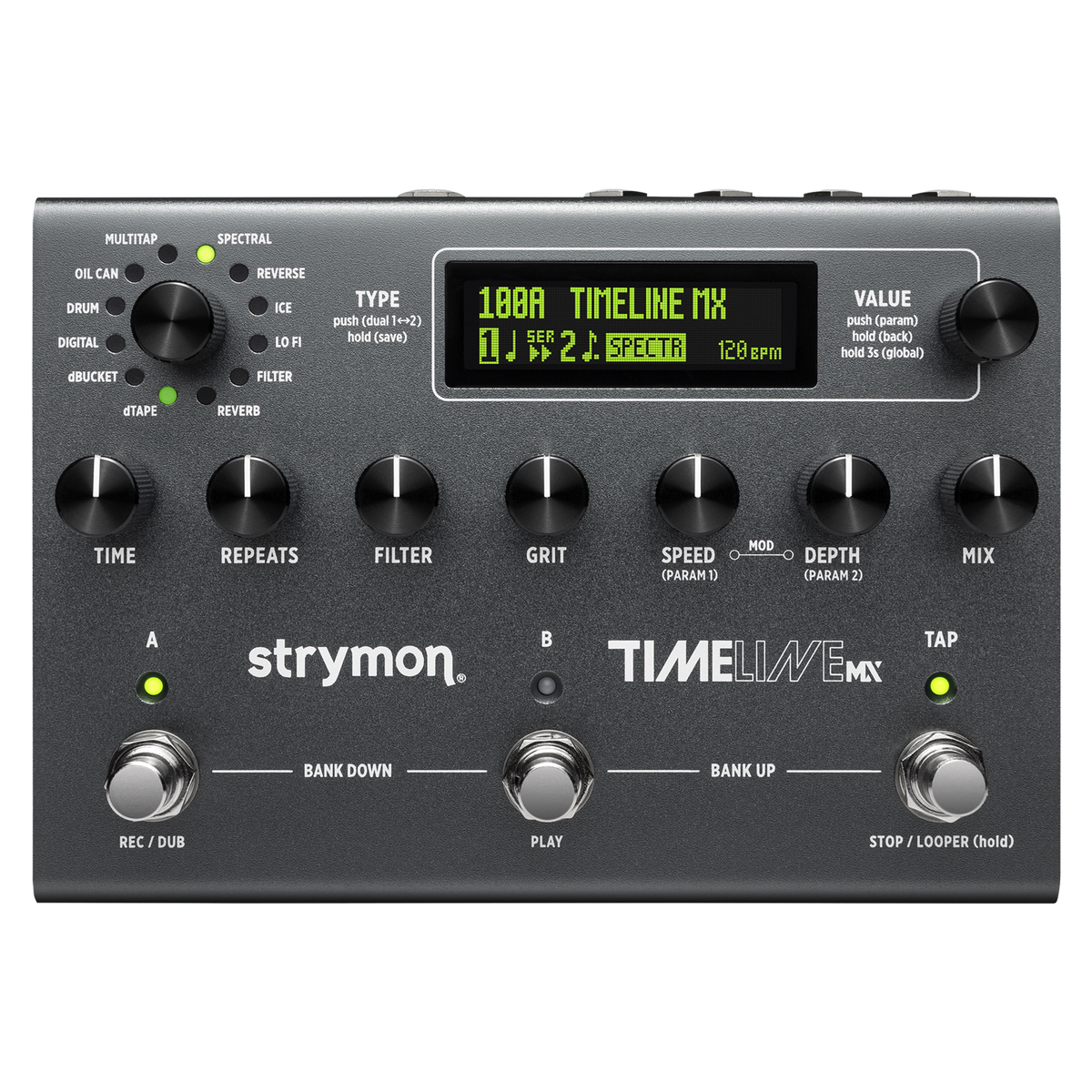

Strymon TimeLine MX

The Strymon TimeLine MX takes the acclaimed TimeLine platform to a new level with expanded processing power, dual-engine architecture, and an entirely new collection of delay and reverb algorithms. Built around a high-performance tri-core ARM processor, it delivers studio-quality effects with exceptional realism, from vintage tape echoes and analog bucket-brigade delays to granular textures, multi-tap rhythms, and expansive ambient reverbs. Whether you're recreating classic sounds or exploring entirely new sonic territory, TimeLine MX offers remarkable flexibility in a stage-ready format.

Designed for professional rigs, TimeLine MX allows two independent delay or reverb engines to run simultaneously in series, parallel, or split configurations, while a five-minute stereo looper, comprehensive MIDI implementation, expression pedal compatibility, and flexible stereo routing make it equally at home on stage or in the studio. An intuitive OLED display and straightforward controls keep advanced sound design accessible without sacrificing depth.

Highlights

• Dual-engine architecture runs two delay or reverb effects simultaneously
• Twelve premium delay machines plus a dedicated studio-quality reverb engine
• Integrated five-minute stereo looper with flexible routing options
• Full stereo I/O, effects loop, MIDI, USB-C, and expression pedal support
• Designed and built in the USA with 32-bit floating-point processing

Specifications

Body

• Compact aluminum pedal enclosure
• Strong anodized aluminum chassis
• Dimensions: 5" (D) x 7" (W) x 1.87" (H)

Hardware

• Stereo TRS Inputs and Outputs
• Stereo Send and Return
• Dedicated Tap Tempo Footswitch
• OLED Display
• USB-C Port
• Expression Pedal Input
• TRS MIDI
• 5-Pin DIN MIDI
• Compatible with Strymon MultiSwitch and MultiSwitch Plus

Electronics

• 12 Delay Machines:
  • dTape
  • dBucket
  • Digital
  • Drum
  • Oil Can
  • Multitap
  • Spectral
  • Reverse
  • Ice
  • Lo-Fi
  • Filter
  • Reverb
• Dual Engine Operation
• Routing Modes:
  • Series
  • Parallel
  • Split
• Five-Minute Stereo Looper
• Stereo Panning Per Engine
• Swell and Duck Functions Available on Every Delay Engine
• Integrated Reverb Engine
• Analog Dry Path
• True Bypass or Selectable Buffered Bypass
• 24-bit / 96kHz A/D and D/A Conversion
• 32-Bit Floating Point Processing
• High-Performance 800 MHz Tri-Core ARM Processor
• Nixie 2 Editor Compatibility
• Instrument and Line Level Operation

Miscellaneous

• Power Requirements: 9VDC Center Negative, 500mA Minimum (Power Supply Sold Separately)
• Input Impedance: 1 Meg Ohm
• Output Impedance: 100 Ohm
• Maximum Input Level: +10 dBu
• Signal-to-Noise Ratio: 116 dB Typical
• Country of Origin: USA
