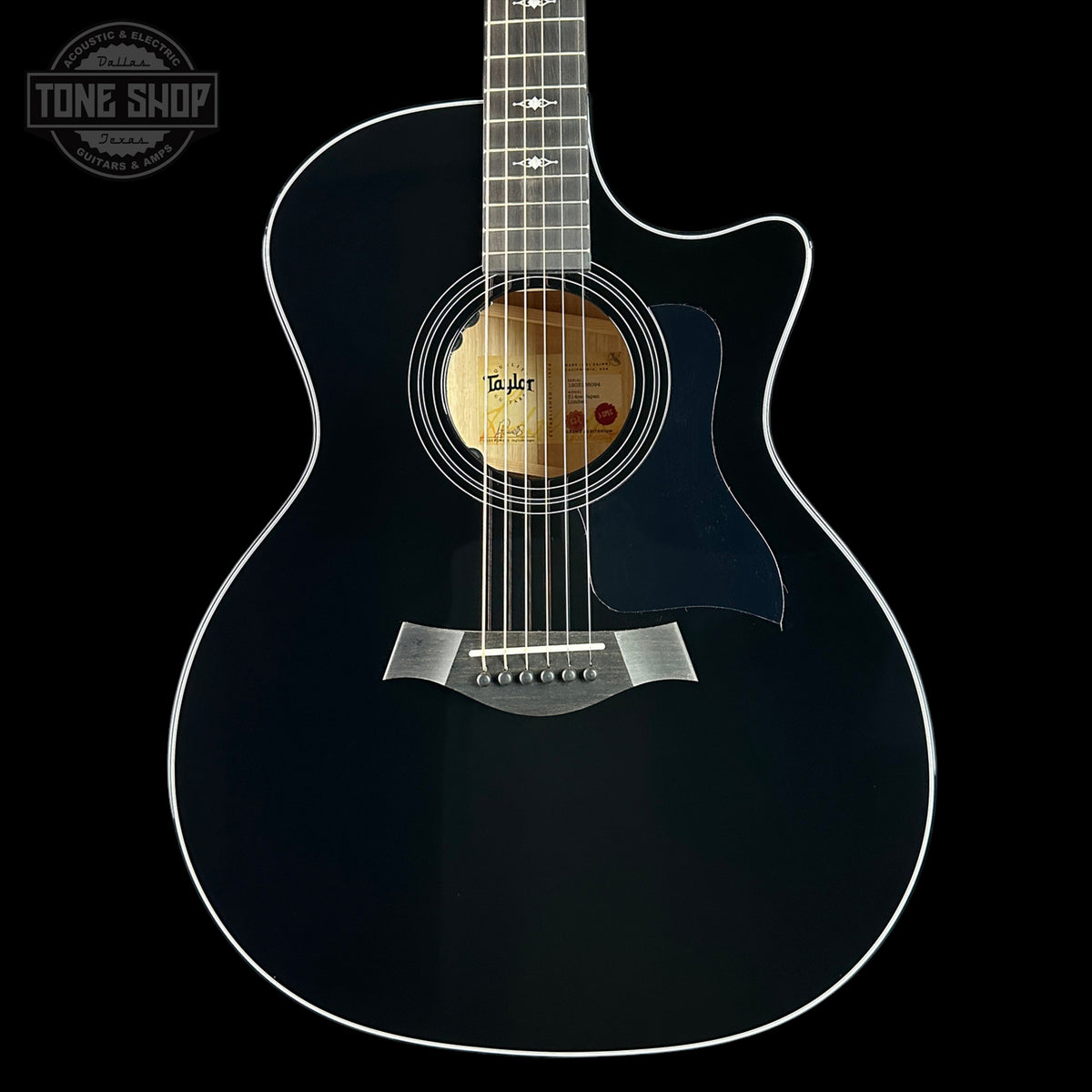

Taylor Prototype 314ce Shamel Ash / Sitka Blacktop

Serial:

The Taylor Prototype 314ce Japan Limited Blacktop is a distinctive Grand Auditorium acoustic-electric guitar featuring Shamel ash back and sides, a Sitka spruce top, and a custom finish developed for the Japanese market. Its gloss Blacktop contrasts with Shaded Edgeburst back and sides and a matching satin-finished neck, creating a striking variation of Taylor's 300 Series design. Scalloped V-Class bracing, an Action Control Neck, and Taylor Claria electronics combine modern construction features with a comfortable, performance-oriented playing experience.

The Grand Auditorium body pairs a Sitka spruce top with Shamel ash back and sides, offering the dynamic response of spruce alongside the balanced tonal character of ash. Taylor's scalloped V-Class bracing with Relief Rout, Voicing G, is designed to enhance resonance, projection, and sustain. The guitar's gloss Blacktop is complemented by a Shaded Edgeburst treatment on the Shamel ash back and sides, with tobacco-colored shading that highlights the wood's natural grain. Black body binding, multi-line black-and-white purfling, and a three-ring rosette complete the distinctive appearance.

The neo-tropical mahogany neck features Taylor's Action Control Neck construction, allowing convenient adjustment of the guitar's playing action. Its Slim Carve profile and satin finish provide a comfortable feel, while the Crelicam ebony fingerboard features a 15" radius, 20 frets, and faux-pearl Gemstone inlays. A 25.5" scale length and 1 11/16" nut width provide familiar string tension and spacing, and the Venetian cutaway allows access to the upper frets. Matching Gemstone peghead inlays and a faux-pearl Taylor logo add further detail to this Japan Limited prototype.

The Prototype 314ce Japan Limited is equipped with Taylor's Claria electronics, featuring an undersaddle pickup and soundhole-mounted controls for amplified performance. A Crelicam ebony straight-wing bridge, matching ebony bridge pins, black TUSQ nut, and white Micarta saddle complete the string path. Taylor nickel tuning machines, a black pickguard, and black hardware accents complement the instrument's dark finish. Additional details include a J-Spec back label and D'Addario XS coated phosphor bronze strings. A brown Taylor AeroCase is included.

Highlights

• Japan Limited prototype with gloss Blacktop and Shaded Edgeburst Shamel ash back and sides

• Sitka spruce top with Shamel ash back and sides

• Scalloped V-Class bracing with Relief Rout, Voicing G

• Action Control Neck with Slim Carve profile and Gemstone inlays

• Taylor Claria electronics and brown AeroCase

Specifications

Body

• Body Shape: Grand Auditorium

• Body Style: Acoustic-Electric

• Cutaway: Venetian

• Top Wood: Sitka Spruce

• Back Wood: Shamel Ash

• Side Wood: Shamel Ash

• Back Configuration: 2-Piece, No Wedge

• Bracing: Scalloped V-Class with Relief Rout, Voicing G

• Bracing Wood: Sitka Spruce

• Body Lining: Kerfed

• Top Finish: Blacktop, Gloss

• Back and Side Finish: Shaded Edgeburst, Gloss

• Back and Side Color Treatment: Ash Stain, Brown Filler, Tobacco Shading

• Body Binding: Black ABS

• Top Purfling: Black/White/Black/White/White/Black

• Rosette: Three-Ring Black ABS

• Rosette Purfling: Black/White/Black

• Tail Strip: Crelicam Ebony

• Cutaway Cap: Shamel Ash

• Heel Cap: Black ABS

• Armrest: None

• Orientation: Right-Handed

Neck

• Neck Wood: Neo-Tropical Mahogany

• Neck Joint: Taylor Action Control Neck

• Neck Profile: Slim Carve

• Neck Finish: Shaded Edgeburst, Satin

• Neck-to-Body Joint: 14th Fret

• Fingerboard Wood: Crelicam Ebony

• Fingerboard Binding: Black ABS

• Fingerboard Radius: 15"

• Fingerboard Inlays: Gemstone, Faux-Pearl Italian Acrylic

• Side Dots: Silver

• Number of Frets: 20

• Fret Style: Standard

• Scale Length: 25.5"

• Nut Width: 1 11/16"

• Nut Material: Black TUSQ

• Peghead Type: Standard Paddle

• Peghead Veneer: Crelicam Ebony

• Peghead Inlay: Gemstone, Faux-Pearl Italian Acrylic

• Peghead Logo: Faux-Pearl Italian Acrylic

• Peghead Binding: None

• Peghead Finish: Satin

Hardware

• Bridge: Crelicam Ebony Straight Wing

• Saddle: White Micarta

• Bridge Pins: Crelicam Ebony

• Tuning Machines: Taylor Standard Nickel

• Tuner Buttons: Nickel

• Pickguard: Classic Black

• Truss Rod Cover: Black ABS

• Strap Pin: Black, Neck Heel

• End Pin: Black

• Factory Strings: D'Addario XS Coated Phosphor Bronze Light

Electronics

• Pickup System: Taylor Claria

• Pickup Type: Undersaddle

• Controls: Soundhole-Mounted

• Battery Compartment: Integrated Battery Box

• Configuration: Acoustic-Electric

Miscellaneous

• Brand: Taylor

• Series: 300 Series

• Model: Prototype 314ce Japan Limited

• Finish: Blacktop / Shaded Edgeburst

• Number of Strings: 6

• Orientation: Right-Handed

• Prototype Designation: Japan Limited J-Spec

• Back Label: J-Spec

• Case: Taylor AeroCase, Brown
