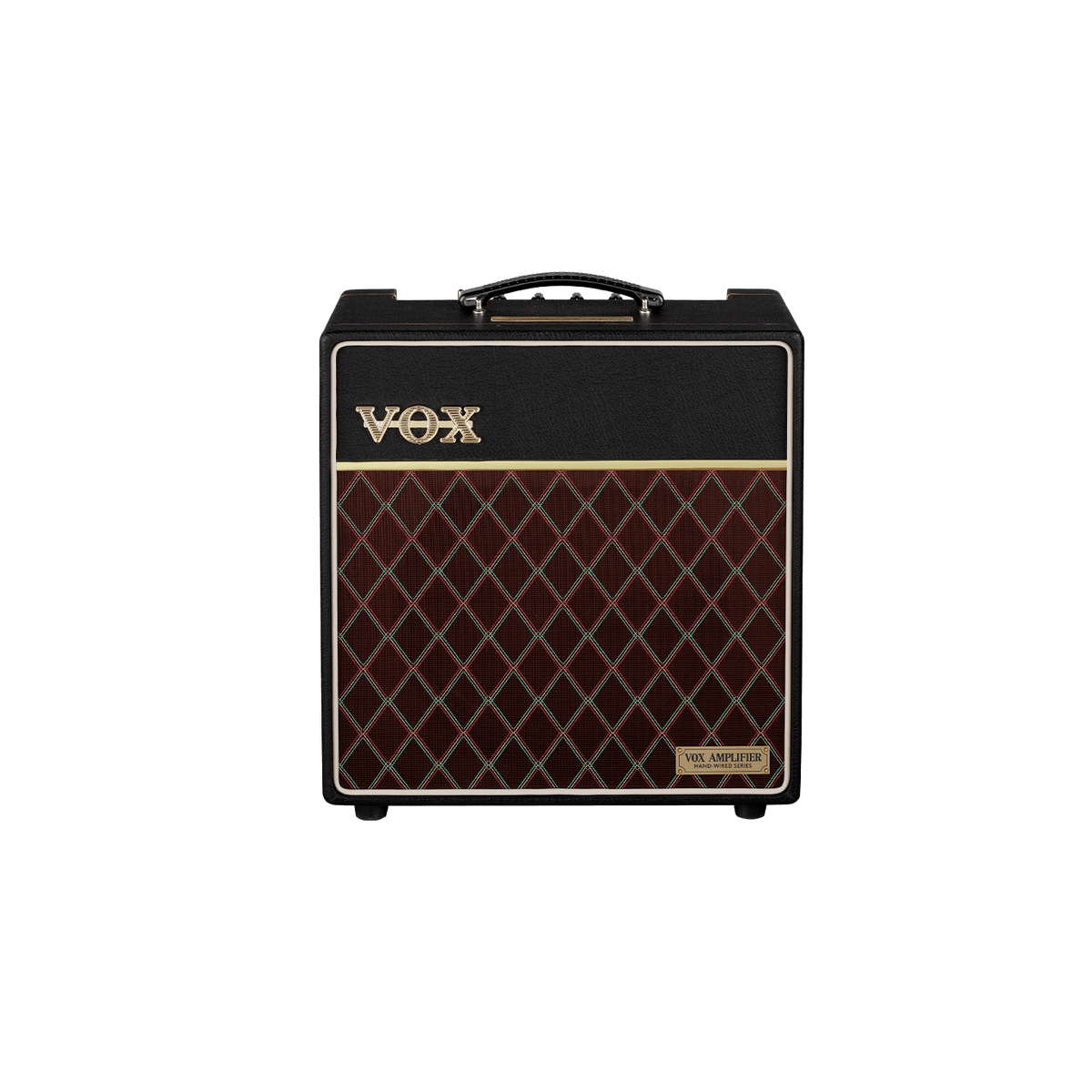

Vox AC4HWR1 4w 1x12 Combo

Weight: 29.98 lbs

The Vox AC4HWR1 is a compact, hand-wired combo designed to deliver classic VOX tone in a more manageable format. Built with vintage-inspired construction and modern refinements, it captures the chime, harmonic complexity, and touch sensitivity associated with early VOX amplifiers while remaining practical for home, studio, and small-stage use.

Unlike typical low-wattage designs, the AC4HWR1 incorporates a phase inverter stage to recreate the harmonic behavior of larger VOX amps. Paired with a custom transformer and a responsive EL84 power section, it delivers natural compression, dynamic breakup, and a lively feel even at lower volumes. With features like a transparent effects loop, spring reverb, and a bypassable master volume, it balances vintage tone with modern flexibility.

Highlights

• Hand-wired circuitry for vintage VOX tone and response
• Single EL84 power section with enhanced harmonic complexity
• 12" Celestion Greenback speaker for classic British voicing
• Built-in spring reverb and transparent effects loop
• Compact 4-watt design ideal for studio, home, or small gigs

Specifications

Body

• Type: Combo Amplifier
• Cabinet Material: Birch Ply (vintage-spec construction)
• Speaker Configuration: 1x12" Celestion G12M Greenback (16Ω)
• Dimensions: 16.38" W x 9.57" D x 18.66" H

Hardware

• Construction: Hand-Wired Circuitry
• Transformer: Custom-Wound Output Transformer
• Cabinet Design: Vintage-style resonant build

Electronics

• Wattage: 4 Watts
• Power Tubes: 1 x EL84
• Preamp Tubes: 2 x ECC83 / 12AX7
• Channels: Top Boost
• Controls: Volume, Treble, Bass, Reverb
• Effects Loop: Yes (FET-buffered, bypassable)
• Reverb: Spring Reverb
• Master Volume: Yes (bypassable)

Miscellaneous

• Other: Phase inverter design for enhanced harmonic response
• Other: Vintage-style voltage sag for natural compression
