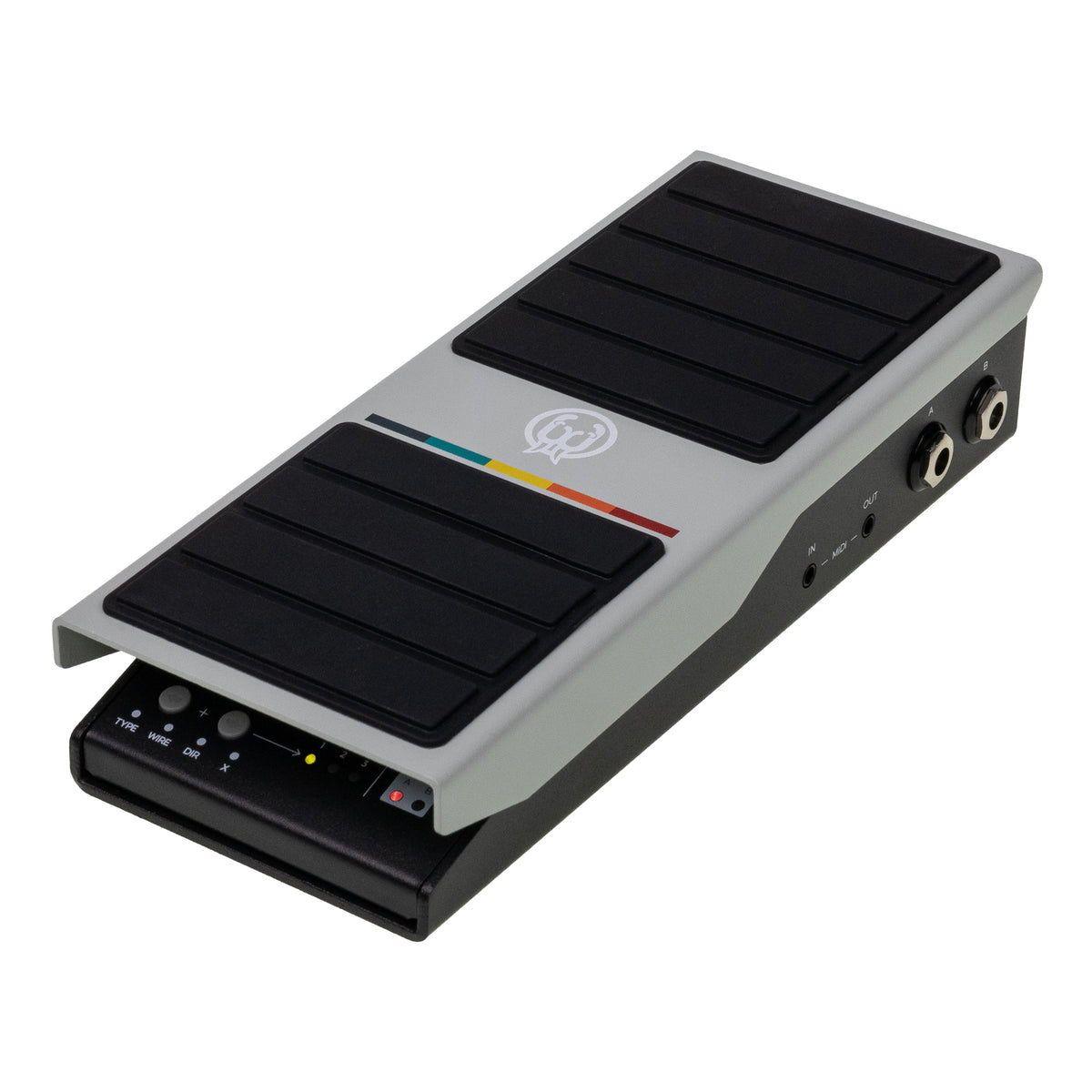

Walrus Audio Canvas Expression Pedal

The Walrus Audio Canvas Expression reimagines what an expression pedal can do, giving you two independently configurable outputs that can operate as expression, switch, or control voltage sources. Instead of carrying multiple controllers for different jobs, Canvas Expression is designed to adapt to your board, synth rig, desktop setup, or MIDI workflow.

Each output can be configured independently, so Jack A and Jack B can control two different devices at the same time. Use it for standard expression sweeps, programmable switch control, or CV output for synths and modular gear.

Beyond analog control, Canvas Expression also functions as a deep MIDI controller, capable of sending up to 16 assignable MIDI messages over USB-C and TRS MIDI. It can handle Control Change, Program Change, high-resolution 14-bit USB MIDI, and MIDI input for remotely enabling or disabling outputs.

Setup is handled through onboard configuration and the Canvas web editor, where you can adjust MIDI assignments, switch behavior, TS resistance values, global settings, and firmware updates. Automatic expression wiring detection, adjustable taper, forward or reverse sweep direction, and programmable switching make it easy to fit into a wide range of rigs.

The treadle feel is adjustable, and the design has no strings, pots, or gears to wear out, get scratchy, or fail mid-set. Canvas Expression is built to be the central control point for a modern pedalboard, synth system, or studio setup.

Highlights

• Dual independent outputs for expression, switch, or control voltage
• MIDI control over USB-C and 1/8" TRS Type A MIDI
• Up to 16 assignable MIDI messages
• Automatic expression wiring detection and adjustable response
• Adjustable treadle feel with no strings, pots, or gears

Specifications

Controls

• Outputs: Jack A and Jack B, Independently Configurable
• Output Modes: Expression, Switch, or Control Voltage
• Expression Compatibility: TRS, RTS, and TS Resistance Mode
• Expression Features: Automatic Wiring Detection, Adjustable Tapers, Forward or Reverse Sweep Direction
• Switch Control: Momentary or Latching
• Switch Activation: Heel, Middle, or Toe Activation Point
• Switch Behavior: Multiple Switching Configurations, Forward or Reverse Triggering
• CV Ranges: 0–3.3V or 0–5V
• MIDI Messages: Up to 16 Assignable MIDI Messages
• MIDI Types: Control Change and Program Change
• MIDI Resolution: High-Resolution 14-Bit USB MIDI
• Treadle Feel: Adjustable Resistance

Hardware

• Output A: Variable Operation TRS Output for Expression, Switch, or Control Voltage
• Output B: Variable Operation TRS Output for Expression, Switch, or Control Voltage
• TRS Output: Voltage Divider Using 50kΩ Potentiometer
• TS Output: Variable Resistor with Selectable 10kΩ, 25kΩ, and 50kΩ Total Resistance
• Switch Output: Grounds Tip to Sleeve, Ring to Sleeve, or Tip and Ring to Sleeve
• MIDI: 1/8" TRS Type A MIDI In and MIDI Out
• USB-C: MIDI In, MIDI Out, and Firmware Updates
• Design: No Strings, Pots, or Gears

Electronics

• Power Requirement: Isolated 9VDC, Center-Negative
• Minimum Current: 300 mA
• Firmware Updates: Via USB-C

Miscellaneous

• Height: 1.9" / 48 mm
• Width: 3.6" / 91 mm
• Depth: 8.9" / 225 mm
• Weight: 2.2 lb
• Web Editor: Canvas Expression Web Editor
• Warranty: Limited Lifetime Warranty
