Walrus Audio Canvas Volume Pedal Gray

Walrus Audio Canvas Volume Pedal Gray

The Walrus Audio Canvas Volume Pedal is a modern take on the volume pedal, designed to deliver consistent performance, precise control, and long-term reliability. Using a contactless position sensor and high-quality analog VCAs, it provides smooth, musical volume changes without the mechanical wear associated with traditional string- or pot-based designs.

Canvas Volume features a fully analog signal path with digital control, allowing players to tailor the pedal’s response to their exact needs. With flexible routing options, deep customization hidden under the heel, and a rugged steel and aluminum chassis, it’s built to integrate seamlessly into a wide range of rigs for stage, studio, and home use.

Highlights

• Fully analog signal path with digitally controlled precision
• Contactless position sensor for consistent, maintenance-free operation
• Eight selectable tapers modeled after classic volume pedals
• Adjustable minimum volume, maximum gain, and lag for custom feel
• Mono, stereo, and dual-mono routing options with tuner out support

Specifications

Body

• Chassis: Steel and aluminum
• Finish: Gray
• Height: 1.9" (48 mm)
• Width: 3.6" (91 mm)
• Depth: 8.9" (225 mm)
• Weight: 2.2 lbs

Neck

• Not applicable

Hardware

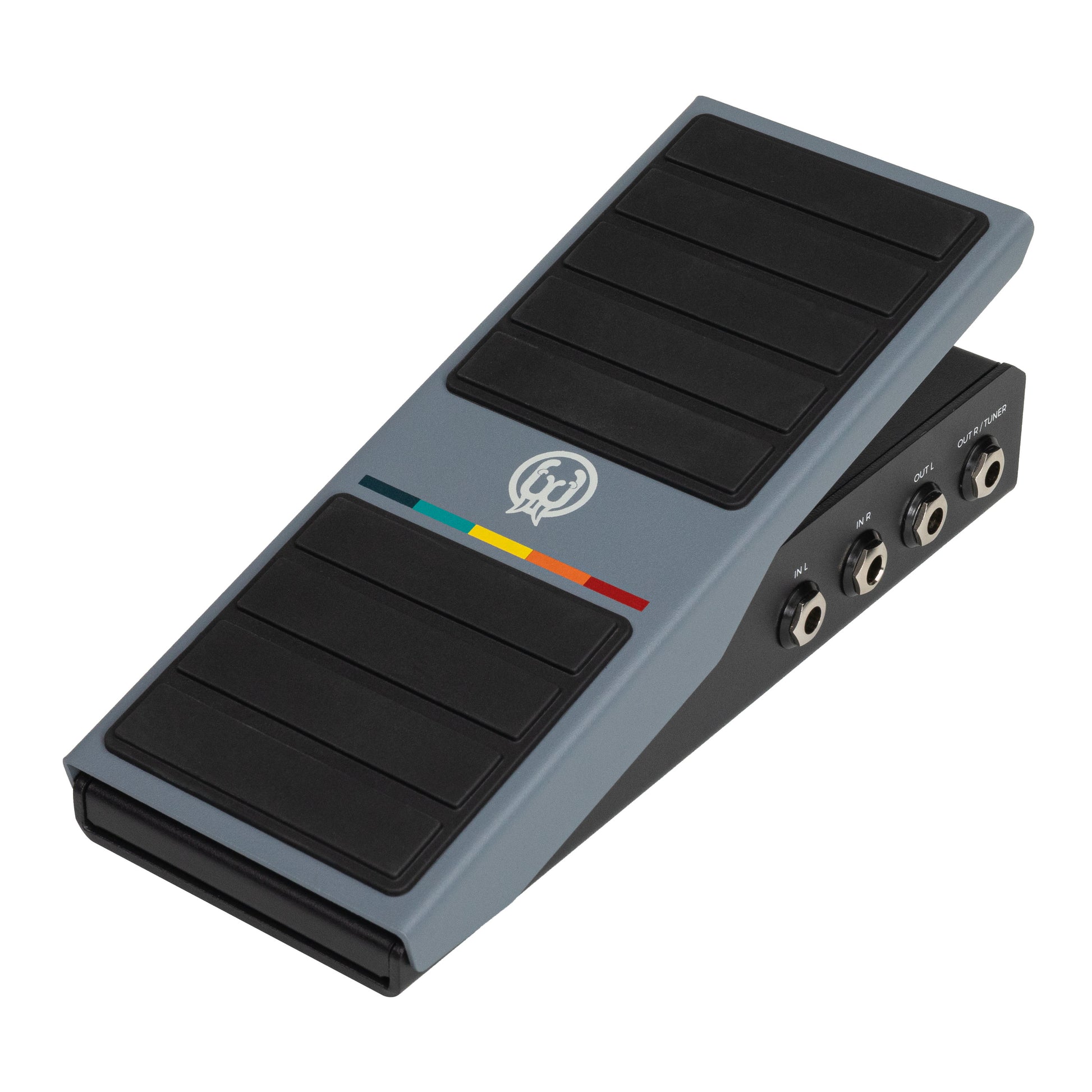

• Inputs: 2 x 1/4" unbalanced TS
• Outputs: 2 x 1/4" unbalanced TS

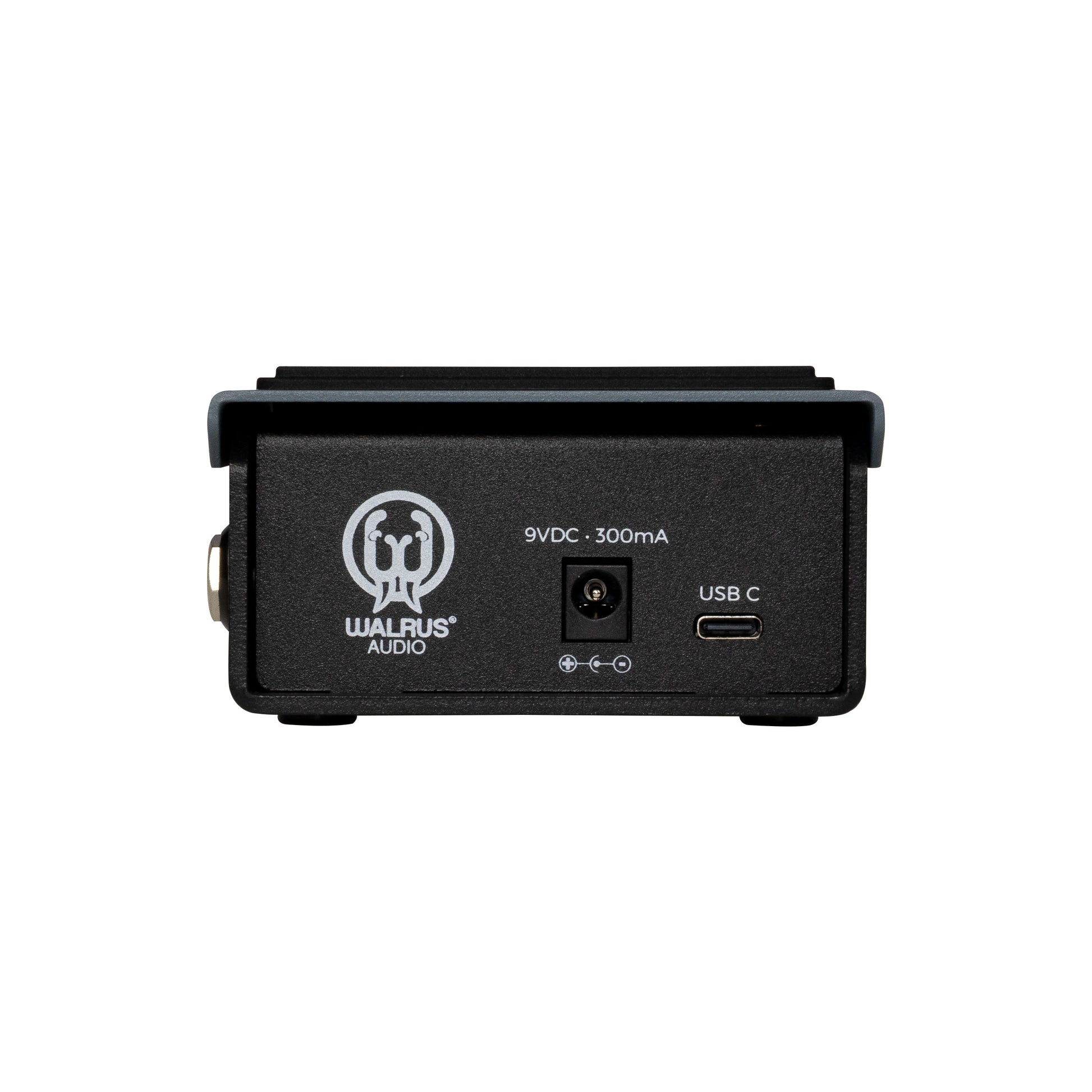

• USB-C: Firmware updates

Electronics

• Signal Path: Fully analog with high-quality VCAs
• Input Impedance: 1 MΩ
• Output Impedance: 330 Ω
• Frequency Response: 20 Hz – 20 kHz
• Routing Modes:

• • Mono in / Mono out with dedicated tuner out

  • Stereo in / Stereo out

  • Mono in / Dual mono out

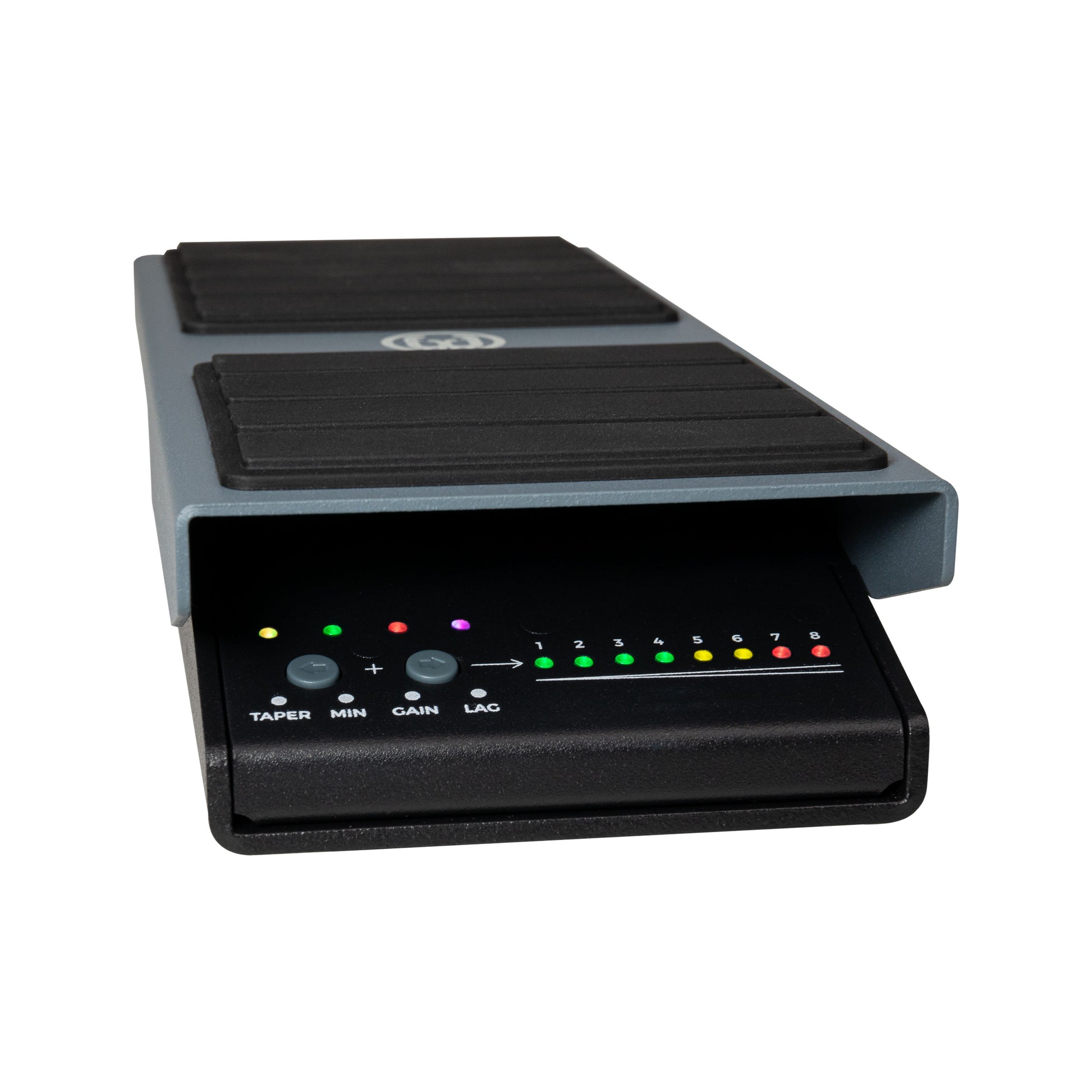

• Customization Parameters:

  • Taper (8 selectable options)

  • Minimum on volume

  • Maximum gain (up to +9 dB)

  • Lag (up to 2 seconds)

Miscellaneous

• Power Requirement: Isolated 9VDC, center-negative, 300 mA minimum
• Utility Functions: Factory reset, calibration, mono mode selection, DFU mode
