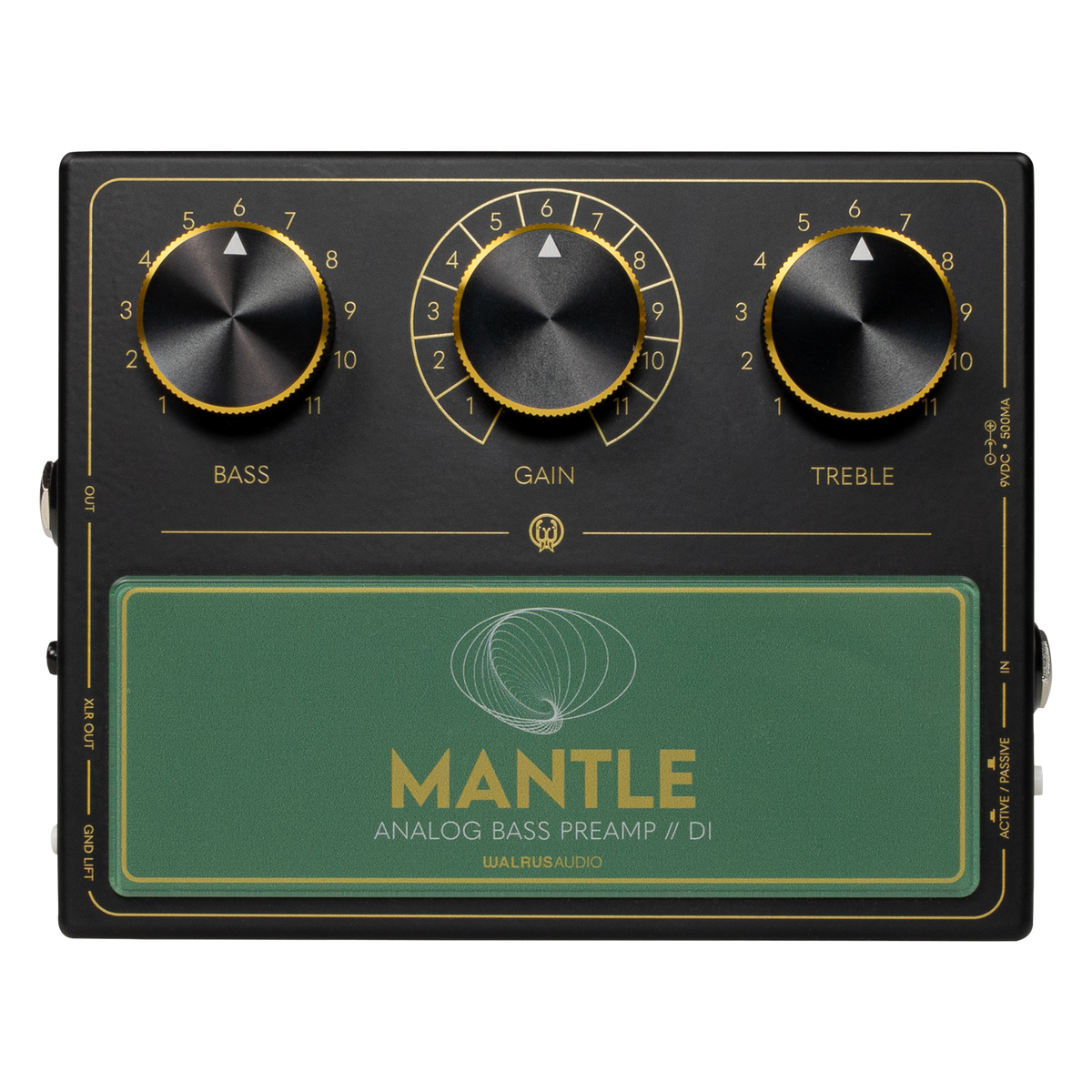

Walrus Audio Mantle Bass Pre-Amp/DI Black

Walrus Audio Mantle Bass Pre-Amp/DI Black

The Walrus Audio Mantle Bass Pre-Amp/DI is a studio-grade front-end designed to serve as a foundational tone tool for electric bass. Developed in close collaboration with Ian Martin Allison, Mantle focuses on delivering clarity, harmonic depth, and authoritative low-end through a carefully voiced, transformer-based signal path.

Built around a high-impedance JFET input stage and custom Sapphire transformers, Mantle brings together classic console-inspired character with modern headroom and flexibility. Whether used as an always-on tone shaper, a recording DI, or a live performance hub, it’s designed to present your bass in its most confident and fully realized form.

Highlights

• Custom Sapphire input and output transformers inspired by classic Neve and API designs
• High-impedance JFET input for articulate, touch-sensitive response
• Transformer-balanced XLR DI with massive headroom and extended low end
• Musical Bass and Treble controls with boost, cut, and filter behaviors
• Internally boosted +24V power for clean dynamics and low-noise performance

Specifications

Body

• Enclosure: Die-cast metal
• Finish: Black
• Dimensions: 6.09" x 4.7" x 2.28" (154.78mm x 119.35mm x 57.98mm)

Hardware

• Input: 1/4" TS unbalanced (Hi-Z)
• Output: 1/4" TS unbalanced
• Direct Output: Male XLR, transformer-balanced
• Switches: Active/Passive pad, Ground lift

Electronics

• Circuit Type: Fully analog, transformer-based preamp and DI
• Input Impedance: 1M Ω
• Output Impedance: 150 Ω balanced / 150 Ω unbalanced
• Gain Range: -6 dB to +23 dB
• EQ Boost Range: 0 dB to +15 dB
• Frequency Response: 20 Hz – 20 kHz
• Noise Floor:

  • Balanced: -101 dBV

  • Unbalanced: -94 dBV

• THD @ 1 kHz, 1 Vrms: 0.04%

Miscellaneous

• Power Requirement: 9VDC, center-negative, 500 mA minimum
• Internal Voltage: Boosted to +24V
• Power Supply: Not included
• Recommended Power: Isolated supply only
• Routing: Simultaneous 1/4" and XLR output supported
